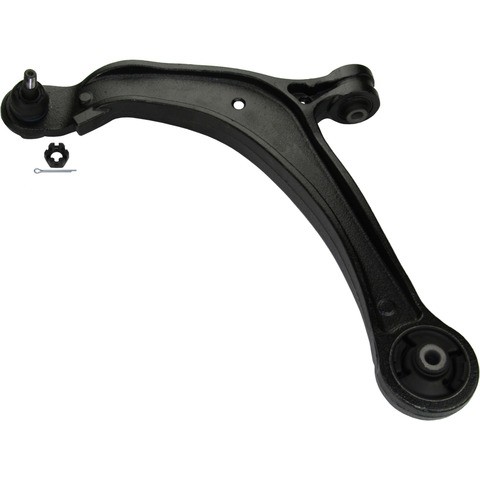

MOOG RK622002 front left lower control arm with ball joint for the 2011-2017 Honda Odyssey connects the front left wheel to the chassis. Also called a control arm and ball joint assembly, this MOOG control arm arrives with its ball joint and bushings already installed.
- Carbon fiber-reinforced bearing (patent pending) reduces socket friction for longer socket life
- Induction-hardened studs resist breakage and improve fatigue life
- Pre-installed dust boot seal blocks wear-causing contaminants
- Specially engineered coatings on metal surfaces inhibit deterioration from rain, snow, salt and road grime
- Rubber bushings come pre-installed with optimized stiffness to inhibit noise
Quick facts
- Part: MOOG RK622002 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2017 Honda Odyssey
- Position: Front left lower
- Material: Rubber bushings
- Condition: New
A worn arm can show up as a clunk over bumps, loose steering or uneven front tire wear. Sway bar links, tie rod ends, struts and wheel bearings can cause similar signs, so find the cause before buying a new arm.
Fits
It is a direct-fit control arm for the 2011-2017 Honda Odyssey. This listing is the front left lower arm, which takes one on this side; the front right is a separate part, and the two are normally replaced together.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1 (this side)
- Ball joint mounting type: press in
- Ball joint stud type: threaded
- Adjustable: no
Build and materials
- Grade type: premium
- Bushing material: rubber
- Bushings and ball joint: included
- Grease fitting: not included
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with the ball joint, bushings and dust boot seal pre-installed. The grease fitting is not included.
Installation notes
- All necessary hardware comes with the arm for easy, fast installation.
- Precision tolerances for easy installation and steering alignment.
Interchange: 102-7612 · 102-7898 · 810-496975B · 522-547 · 522-857
19461372 · TC5745 · TC7450 · CB59313PR · CB59353PR · CA14555 · 51360TK8A00 · 51360TK8A01 · 51360TK8A10 · 5CB601077 · 9CB60410 · CB59313 · CMS601118 · CMS601188 · MS601118 · 2607020 · 5072407 · JTC2742
This part cross-references / interchanges with the following part numbers:
19461372, 102-7612, 102-7898, 810-496975B, TC5745, TC7450, 522547, 522-857, 522-547, CB59313PR, CB59353PR, CA14555, 51360TK8A00, 51360TK8A01, 51360TK8A10, 5CB601077, 9CB60410, CB59313, CMS601118, CMS601188, MS601118, 2607020, 5072407, JTC2742
Frequently Asked Questions
Is this MOOG lower control arm the right one for the 2011-2017 Honda Odyssey?
Yes. MOOG RK622002 is the front left lower arm for the 2011-2017 Honda Odyssey; the front right side is a separate part.
Does the MOOG lower control arm bushing come installed on the RK622002?
Yes. This arm arrives with its rubber bushings, ball joint and dust boot seal pre-installed.
Is the ball joint stud on this arm threaded?
Yes. The ball joint has a threaded stud and a press-in mounting type. This arm is not adjustable.
What are signs of a worn MOOG control arm bushing?
Worn bushings can bring a clunk over bumps, loose steering or uneven front tire wear. A shop can inspect the bushings and ball joint for play and cracks.
Does MOOG RK622002 cross to 51360TK8A00?
Yes. 51360TK8A00 is one of the numbers MOOG RK622002 replaces, along with 51360TK8A01 and 51360TK8A10.
