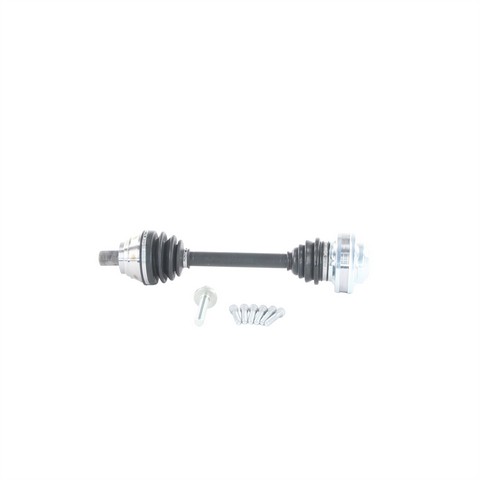

TrakMotive AD-8126 front left CV axle shaft for the 2019 Volkswagen Jetta and other vehicles carries drive torque to the front left wheel. Its CV joints let the shaft keep turning as the wheel steers and moves with the suspension.
- Bolt-on inboard joint with six bolt holes
- Spline bolt outboard joint with 36 splines
- Neoprene boots on both the inboard and outboard joints
Quick facts
- Part: TrakMotive AD-8126 CV axle shaft
- Fits: 2019 Volkswagen Jetta and other vehicles
- Position: Front left
- Condition: New
A clicking noise on tight turns, vibration while accelerating or grease thrown from a torn boot can point to a worn CV joint. Before you replace the axle shaft, rule out the wheel bearing and the tire as the source of the noise, because several parts can make a similar sound.
Fits
This TrakMotive CV axle shaft is a direct-fit replacement for the 2019 Volkswagen Jetta, the 2010-2014 Volkswagen Golf and the 2006-2008 Volkswagen Passat, among other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section. This listing is one side only: the other side of that axle is a separate part and is normally replaced at the same time.
Specifications
Fit and size
- Position: Front left
- Overall compressed length: 487 mm (19.17 in)
- Axle bolt: M16x1.5 thread, 97 mm long, 27 mm hex
- Inboard bolts: 6, Allen head 8 mm, M10x1.5 thread, 55 mm long
Build and materials
- Outboard joint: Audi-style spline bolt
- Condition: New
- ABS tone ring: not included
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front left CV axle shaft; the front left takes one, and the front right is ordered separately. The axle nut is not included, so plan on a new one, since the old nut may not be reusable.
Frequently Asked Questions
Is the TrakMotive AD-8126 a CV axle shaft for the 2019 Volkswagen Jetta?
Yes. TrakMotive AD-8126 is a front left CV axle shaft for the 2019 Volkswagen Jetta, and it also fits the 2010-2014 Volkswagen Golf.
Does the TrakMotive AD-8126 come with an axle nut?
No. TrakMotive AD-8126 is one front left CV axle shaft, and the axle nut is not included, so plan on buying a new one.
How long is this CV axle shaft, and what axle bolt does it use?
Overall compressed length is 487 mm (19.17 in). The axle bolt is M16x1.5 thread, 97 mm long, with a 27 mm hex.
How can I tell if a CV axle shaft or its boot is going bad?
A torn boot with grease around it, clicking on turns or vibration when accelerating can mean the joint is wearing. A shop can confirm the cause.
Does this front left CV axle shaft include an ABS tone ring?
No. The ABS tone ring is not included with this axle shaft.
