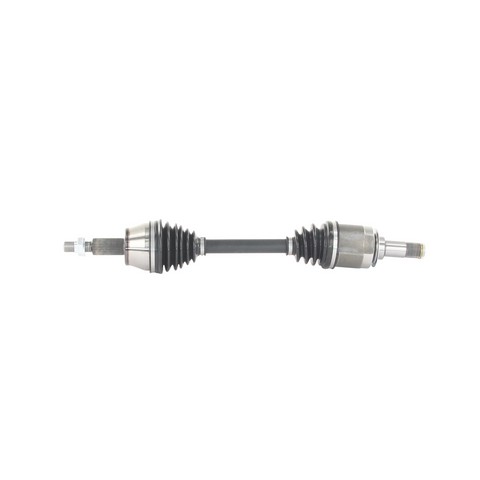

TrakMotive CH-8253 front left CV axle shaft for the 2011-2022 Jeep Grand Cherokee and other vehicles carries drive torque to the front left wheel. Its joints let the wheel turn and move with the suspension.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 37 splines and a conventional outboard joint with 32 splines
- Axle nut included, with an M22x1.5 thread and a 32 mm hex
- Overall compressed length of 663 mm (26.1 in)
Quick facts
- Part: TrakMotive CH-8253 CV axle shaft
- Fits: 2011-2022 Jeep Grand Cherokee and other vehicles
- Position: Front left
- Condition: New
A worn wheel bearing, an out-of-balance tire or a tired engine mount can produce noise or vibration too, so find out what is behind yours before buying an axle. Clicking in turns, grease around a torn boot or vibration under acceleration are signs a CV axle can be wearing out. If the axle is the cause, this one replaces the front left.
Fits
It fits the 2011-2022 Jeep Grand Cherokee and the 2011-2022 Dodge Durango.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Overall compressed length: 663 mm (26.1 in)
- Inboard splines: 37
- Outboard splines: 32
- Axle nut thread: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
- Axle nut height and length: 20 mm by 35 mm
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- Boot material: neoprene, inboard and outboard
- Axle nut locking type: stake
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft for the front left, with its axle nut. The ABS tone ring is not included. The front left takes one axle, and the front right is a separate part ordered on its own.
Interchange: CH-8-8655
139253 · NCV10063 · 72917 · 40714006
This part cross-references / interchanges with the following part numbers:
139253, NCV10063, 72917, 40714006, CH-8-8655, CH-8253
Frequently Asked Questions
Is this a CV axle shaft for the 2011-2022 Jeep Grand Cherokee?
Yes. TrakMotive CH-8253 fits the 2011-2022 Jeep Grand Cherokee and goes on the front left side.
Is this the front left CV axle shaft for the 2011-2022 Dodge Durango?
Yes. TrakMotive CH-8253 goes on the front left of the 2011-2022 Dodge Durango. The front right is a separate axle.
Does this TrakMotive CV axle come with the axle nut?
Yes, the axle nut is included with the axle. The ABS tone ring is not included.
What size is the axle nut on this TrakMotive CV axle shaft?
The axle nut has an M22x1.5 thread and a 32 mm hex, and it locks by staking. It measures 20 mm tall and 35 mm long.
What can clicking in turns mean on this front left CV axle?
Clicking in turns, grease around a torn neoprene boot or vibration under acceleration can come from a worn joint, though other parts can cause them too. A shop can confirm the cause.
