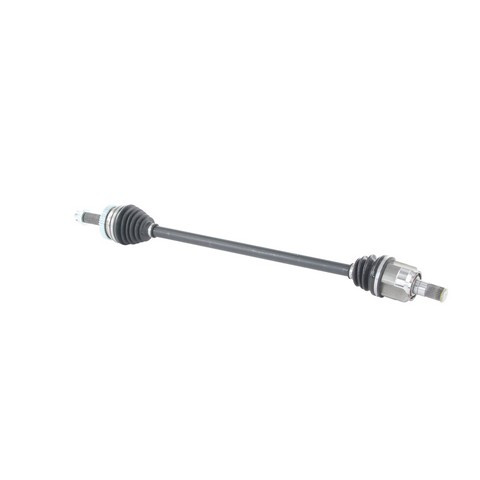

TrakMotive HY-8243 front right CV axle shaft for the 2011-2014 Hyundai Sonata and other vehicles carries drive torque to the wheel. Its two joints flex with suspension travel.
A torn boot with grease thrown around the joint, clicking while turning or vibration under acceleration can mean the axle is worn. Before you replace it, look over the boots and joints with the engine off for cracks, leaked grease or play, because a wheel bearing or another part can cause similar noises.
This shaft fits the 2011-2014 Hyundai Sonata and the 2011-2013 Kia Optima, and the front right side of each takes one. As a 2013 Hyundai Sonata CV axle replacement, the listing covers the front right side only; the front left is a separate part, and the pair on that axle is normally done at the same time.
Fit and size
Build and materials
One CV axle shaft with its axle nut.
Interchange: 66-3721 · 60-3721 · HY-8-8612A
199243 · NCV37002 · NCV75108 · 88635 · 40723058 · 495013Q350 · 495013Q360 · 5013Q350 · 5013Q360 · HY10564
This part cross-references / interchanges with the following part numbers:
Is this front right part a CV axle replacement for the 2011-2014 Hyundai Sonata?
Yes. TrakMotive HY-8243 is the front right shaft for the 2011-2014 Hyundai Sonata and also fits the 2011-2013 Kia Optima. The front right side of each takes one; the front left is ordered separately.
Will HY-8243 work as a 2013 Hyundai Sonata CV axle on the front left?
No. TrakMotive HY-8243 is the front right shaft for the 2011-2014 Hyundai Sonata, which includes 2013. The front left side is a separate part.
Does the TrakMotive CV axle shaft come with its axle nut?
Yes. The axle nut is included with TrakMotive HY-8243. It is a 32 mm hex nut with M22x1.5 thread and a cotter pin locking type.
How many splines does this TrakMotive CV axle have?
This shaft has 28 splines on the male inboard end and 27 on the conventional outboard end. Its ABS tone ring is toothed with 48 teeth and is included.
How do I spot a damaged CV axle boot?
A cracked or split boot with grease flung around the joint is the usual sight. Clicking when turning or vibration under acceleration can also mean a worn axle; a shop can check the joints.
