Front Right CV Axle Shaft for 2010-2011 Hyundai Azera - TrakMotive HY-86001

$268.99

TrakMotive CV Axle Shaft HY-86001 - view 2

TrakMotive CV Axle Shaft HY-86001 - view 3

Part number: HY-86001

UPC: 840140507195

Condition: New

Weight: 29.70 LBS

Item Package Quantity: 1

$268.99

Current Stock: 6

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:HY-86001

$268.99

Description

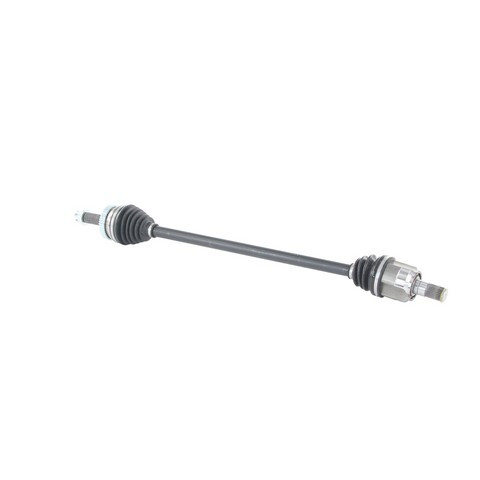

TrakMotive HY-86001 front right CV axle shaft for the 2010-2011 Hyundai Azera carries drive torque from the drivetrain to the front right wheel. Its constant-velocity joints let the TrakMotive CV axle keep driving while the suspension moves and the wheel steers.

Toothed ABS tone ring with 47 teeth is included
Axle nut included: M22x1.5 thread, 32 mm hex, cotter pin locking type
Long-male inboard joint with 28 splines
Conventional outboard joint with 30 splines
Joint boots: thermoplastic on the outboard joint, neoprene on the inboard joint

Quick facts

Part: TrakMotive HY-86001 CV axle shaft
Fits: 2010-2011 Hyundai Azera
Position: Front right
Condition: New

A clicking or popping noise on turns, vibration while driving or grease flung from a torn boot can mean an axle joint is wearing. Before you order, look at the visible boot with the engine off for splits or grease spatter, because a clicking turn can also come from other steering or suspension parts, and a shop can test the rest.

Fits

This is a direct-fit replacement for the 2010-2011 Hyundai Azera. This listing is one axle for the front right, and that side takes one; the front left is a separate part ordered on its own.

Specifications

Fit and size

Position: Front right, 1 per application
Overall compressed length: 969 mm (38.13 in)
Overall extended length: 1026 mm (40.39 in)
Axle nut: M22x1.5 thread, 32 mm hex
Inboard splines: 28
Outboard splines: 30

Build and materials

Inboard joint: long-male, spline shaft connection
Outboard joint: conventional, spline shaft connection
ABS tone ring: included, toothed, 47 teeth
Inboard boot: neoprene; outboard boot: thermoplastic
Axle nut locking type: cotter pin
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft with its axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

HY-86001

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HY-86001 fit the 2010-2011 Hyundai Azera?

Yes. TrakMotive HY-86001 is a front right CV axle shaft for the 2010-2011 Hyundai Azera, and the front left side is a separate part.

Does this TrakMotive CV axle shaft include the axle nut?

Yes. The listing includes one hex axle nut with an M22x1.5 thread and a 32 mm hex, along with the front right axle shaft.

Does the HY-86001 CV axle shaft include the ABS tone ring?

Yes. TrakMotive HY-86001 includes a toothed ABS tone ring with 47 teeth.

What does a worn front CV axle shaft sound like?

A clicking or popping noise when turning, vibration while driving or grease thrown from a torn boot can mean an axle joint is wearing. Have it checked promptly.

What is the overall length of this front right axle shaft?

It measures 969 mm (38.13 in) compressed and 1026 mm (40.39 in) extended, with 28 splines on the inboard end and 30 on the outboard end.
