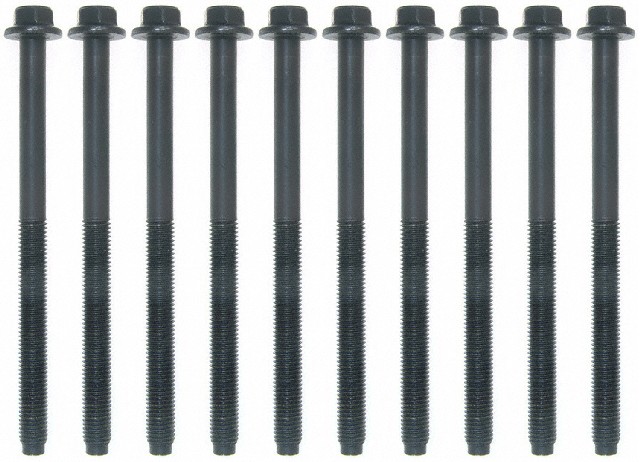

FEL-PRO ES 72229 cylinder head bolt set for the 2004-2010 Ford E-350 Super Duty V8 6.0L and other vehicles clamps the cylinder head to the engine block. The FEL-PRO engine cylinder head bolt set supplies long bolts only.
- Long bolts only, with a 14 mm bolt diameter and 112 mm of thread length
- Not reusable, so replacement is recommended; new bolts avoid the risk of reusing torque-to-yield (T-T-Y) head bolts
- Application-specific design with a 195 mm critical length and an 18 mm hex head
Quick facts
- Part: FEL-PRO ES 72229 cylinder head bolt set
- Also called: engine cylinder head bolt set
- Fits: 2004-2010 Ford E-350 Super Duty V8 6.0L and other vehicles
- Condition: New
Head bolts are replaced whenever the cylinder head comes off, as in a head gasket job. Coolant or oil seeping along the head joint can lead to that repair, though those signs can have other causes. With the engine off and cool, look over the head joint for visible seepage, and have a shop confirm the cause before you replace anything.
Fits
As a direct-fit replacement bolt set validated for fit, form and function, it also fits the 2004-2010 Ford E-450 Super Duty V8 6.0L and the 2003-2007 Ford F-250 Super Duty V8 6.0L, along with many other vehicles. Original equipment specifications are met or exceeded. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one set, and the 2004-2010 Ford E-350 Super Duty V8 6.0L takes two, so order two.
Specifications
Fit and size
- Quantity per vehicle: 2
- Bolt and thread diameter: 14 mm
- Thread pitch: 2.00
- Thread length: 112 mm
- Bolt critical length: 195 mm
- Bolt head size: 18 mm
- Head drive type: Hex
Build and materials
- Design: long bolts only; replacement recommended
- Reusable: No
- Grade type: Premium
- Condition: New
- Country of origin: Taiwan
In the box
One cylinder head bolt set of long bolts. Assembly lubricant is not included.
Interchange: 3C3Z6065AA · GS33494 · 141009301
This part cross-references / interchanges with the following part numbers:
3C3Z6065AA, GS33494, 141009301
Frequently Asked Questions
Will the FEL-PRO cylinder head bolt set ES 72229 fit the 2003-2007 Ford F-250 Super Duty V8 6.0L?
Yes. FEL-PRO ES 72229 fits the 2003-2007 Ford F-250 Super Duty V8 6.0L, which takes two. Open the "Vehicles it fits" section to check your own model and engine.
Are FEL-PRO cylinder head bolts like these reusable?
No. These bolts are not reusable, and replacement is recommended. New bolts avoid the risk that comes with reusing torque-to-yield head bolts.
What are the bolt dimensions of the FEL-PRO ES 72229?
Each FEL-PRO ES 72229 bolt is 14 mm in diameter with a 2.00 thread pitch, 112 mm of thread and a 195 mm critical length. The hex head is 18 mm.
Does this head bolt set include short bolts or assembly lubricant?
No. This set holds long bolts only, and assembly lubricant is not included.
Does FEL-PRO ES 72229 replace 3C3Z6065AA?
Yes. 3C3Z6065AA is one of the interchange numbers for FEL-PRO ES 72229, along with GS33494 and 141009301.
