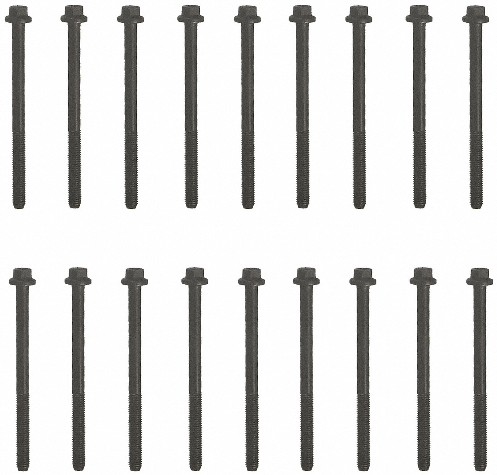

FEL-PRO ES 72161 cylinder head bolt set for the 1994-1996 Ford F-250 V8 7.3L and other vehicles clamps the cylinder head to the engine block. This FEL-PRO cylinder head bolt set meets or exceeds all original equipment specifications.
- Replacement bolts that avoid the risk of reusing torque-to-yield (T-T-Y) head bolts
- 12 mm bolt diameter with a 1.75 thread pitch and a 44 mm thread length
- 149 mm bolt critical length
- Hex head drive with a 15 mm bolt head size
Quick facts
- Part: FEL-PRO ES 72161 cylinder head bolt set
- Also called: engine cylinder head bolt set
- Fits: 1994-1996 Ford F-250 V8 7.3L and other vehicles
- Condition: New
Oil or coolant seeping at the cylinder head joint, or overheating, can mean the head bolts have lost clamp load, though a head gasket or the cylinder head itself can be behind those signs instead.
Fits
Validated for fit, form and function, this application-specific bolt set also covers the 2003 Ford E-350 Club Wagon V8 7.3L and the 1999-2003 Ford E-350 Super Duty V8 7.3L. These vehicles take two sets, and this listing is one set.
Specifications
Fit and size
- Quantity per vehicle: 2
- Bolt and thread diameter: 12 mm
- Thread pitch: 1.75
- Thread length: 44 mm
- Critical length: 149 mm
- Bolt head size: 15 mm
Build and materials
- Head drive type: Hex
- Reusable: No
- Condition: New
- Country of origin: Taiwan
In the box
One cylinder head bolt set. Assembly lubricant is not included.
Interchange: 27314 · GS33379 · F4TZ6065A · 852397 · 141007001
This part cross-references / interchanges with the following part numbers:
27314, GS33379, F4TZ6065A, 852397, 141007001
Frequently Asked Questions
Is the FEL-PRO ES 72161 cylinder head bolt set right for a 1994-1996 Ford F-250 V8 7.3L?
Yes. FEL-PRO ES 72161 fits the 1994-1996 Ford F-250 V8 7.3L and many other vehicles. If your car is not named here, look for it in the "Vehicles it fits" section.
Does the FEL-PRO ES 72161 set come with assembly lubricant?
No. Assembly lubricant is not included, and this listing is one cylinder head bolt set.
What size are the bolts in this engine cylinder head bolt set?
The bolts are 12 mm in diameter with a 1.75 thread pitch and a 44 mm thread length. Critical length is 149 mm, and they have a hex head drive with a 15 mm head size.
Can a FEL-PRO cylinder head bolt from this set be reused?
No. This set is listed as not reusable, and it is a replacement for torque-to-yield (T-T-Y) head bolts, which carry a risk when they are reused.
Does FEL-PRO ES 72161 replace F4TZ6065A?
Yes. F4TZ6065A is one of the numbers this set replaces, along with 27314, GS33379, 852397 and 141007001.
