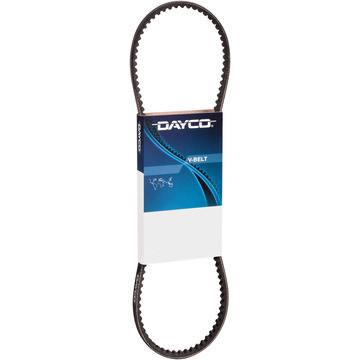

Dayco 15225 accessory drive belt for the 1994-2001 Yamaha VX500 Vmax 500 and other vehicles carries engine power to the accessories it drives.
- Bottom cog belt construction; not a banded belt
- Synthetic rubber compound
- 36 degree belt angle
- Operating temperature range of -35 F to 175 F (-37.2 C to 79.4 C)
- Standards: SAE J636 and SAE J637
Quick facts
- Part: Dayco 15225 accessory drive belt
- Fits: 1994-2001 Yamaha VX500 Vmax 500 and other vehicles
- Position: alternator, power steering, fan to air pump, water pump, water pump to vacuum pump
- Material: synthetic rubber compound
- Condition: New
Cracks across the cogs, fraying at the edges or a squeal at start-up can mean this belt is worn, though a binding pulley or a loose tensioner can be behind them, so find the cause before you swap the belt. Look at it only with the engine off and cool.
Fits
The 1994-2001 Yamaha VX500 Vmax 500, the 1997-2001 Yamaha VT500 Venture 500 and the 1997-2001 Yamaha VT600 Venture 600 all fit this belt, as do many other Yamaha, Jaguar, Nissan and Peugeot models. The 1994-2001 Yamaha VX500 Vmax 500 takes one belt. To check your exact model and engine, open the "Vehicles it fits" section.
Specifications
Fit and size
- Position: alternator, power steering, fan to air pump, water pump, water pump to vacuum pump
- Quantity per vehicle: 1
- Listed dimensions: 0.44 in, 22.50 in (571.50 mm), 23.07 in (585.98 mm)
- Angle: 36 degrees
Build and materials
- Construction: bottom cog
- Banded belt: no
- Compound: synthetic rubber
- Standards: SAE J636, SAE J637
- Operating temperature: -35 F to 175 F (-37.2 C to 79.4 C)
- Condition: New
Interchange: L37-0575
2225 · RPF2225 · RPF2230 · 22513 · 15231
This part cross-references / interchanges with the following part numbers:
2225, RPF2225, RPF2230, NA, 22513, 15225, 15231, L37-0575, EAC-6335, AV10LP570, EAC6335, EG673-97020, 2044, MD086999, 11750-D1116, 11950-D2011, 11950-D2012, 11950-D2016, 21067-K7320, 10580LE, 82M-12444-00-00
Frequently Asked Questions
Will the Dayco 15225 belt fit a 1997-2001 Yamaha VT500 Venture 500?
Yes. Dayco 15225 is listed for the 1997-2001 Yamaha VT500 Venture 500, and that application takes one belt.
What temperature range is the Dayco 15225 belt rated for?
The listed operating temperature runs from -35 F to 175 F (-37.2 C to 79.4 C).
Is the Dayco 15225 a banded belt or a cogged belt?
Dayco 15225 is a bottom cog belt and not a banded belt. Its compound is synthetic rubber.
What signs show a bottom cog drive belt is worn?
Cracks across the cogs, fraying at the edges or glazing can point to wear. Check these only with the engine off and cool.
Is 15231 an interchange number for this belt?
Yes. 15231 is a listed interchange number for Dayco 15225, so you can match it when comparing belts.
