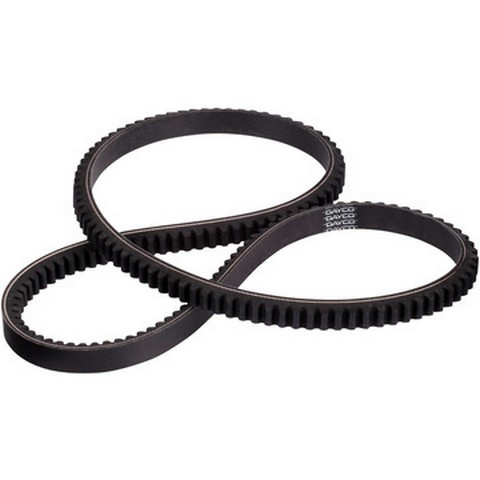

Dayco 17330 accessory drive belt for the 1986 Toyota Camry 4-cylinder 2.0L and other vehicles carries engine power from the crankshaft to the driven accessories.
- Bottom cog construction
- Synthetic rubber compound
- 36-degree belt angle
- Operating temperature range of -35 F to 175 F (-37.2 C to 79.4 C)
- Listed to SAE J636 and SAE J637 standards
Quick facts
- Part: Dayco 17330 accessory drive belt
- Fits: the 1986 Toyota Camry 4-cylinder 2.0L and other vehicles
Cracks, fraying, glazing or missing cog sections mean a belt is worn, and a squeal or chirp can point to wear too, though a tensioner or pulley can make the same noise. With the engine off and cool, look along the whole belt and the pulleys it runs on before you replace it.
Fits
The 1986 Toyota Camry 4-cylinder 2.0L, the 1984 Toyota 4Runner and the 1981-1983 Nissan Maxima 6-cylinder 2.8L all take this belt, one per vehicle, and it fits many other vehicles as well. If your car is not one of these, open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: varies by application
- Belt angle: 36 degrees
Build and materials
- Construction: bottom cog
- Banded belt: no
- Compound: synthetic rubber
- Standards: SAE J636, SAE J637
- Operating temperature: -35 F to 175 F (-37.2 C to 79.4 C)
Interchange: 16-332 · 17-331 · L51-17330 · L38-0835 · L38-0840 · JC-332 · 25-08380 · 25-08385 · 25-9330 · 25-9330HD · 12.5X840
9330HD · B3320 · RPF3300 · 9330 · 33017 · 13A0840 · 8023 · 8241 · 923 · 16333
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
17330, 9330HD, 16332, B3320, RPF3300, 9330, 33017, 13A0840, 8023, 8241, 923, 17331, L51-17330, L38-0835, L38-0840, JC-332, 25-08380, 25-08385, 25-9330, 25-9330HD, 12.5X840, 16-332, 17-331, 16333
Frequently Asked Questions
Is the Dayco 17330 the right drive belt for a 1986 Toyota Camry 4-cylinder 2.0L?
Yes. Dayco 17330 is listed for the 1986 Toyota Camry 4-cylinder 2.0L, and that engine takes one belt.
What temperature range is the Dayco 17330 accessory drive belt made for?
Dayco 17330 has an operating temperature range of -35 F to 175 F (-37.2 C to 79.4 C).
Does this accessory drive belt have cogs or is it banded?
It has bottom cog construction and is not a banded belt. The belt is made of a synthetic rubber compound.
Does this belt replace the 25-9330 number?
Yes. 25-9330 is on this belt's interchange list.
How can I tell a worn bottom cog belt by looking at it?
Cracks, fraying, glazing or missing cog sections can mean the belt is worn. A shop can test belt tension and alignment with the engine running.
