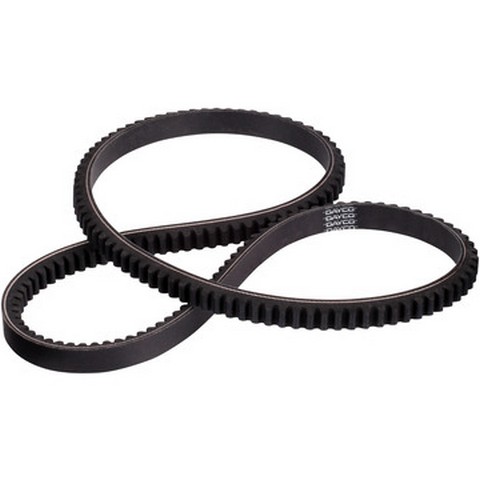

Keep the fan and generator turning with the Dayco accessory drive belt, part number 24490, a double cog V-belt made from a black synthetic rubber compound. It is listed for many models, among them the 1940-1942 Chrysler Royal (L6-4.0L, L6-4.1L), the 1946-1950 Chrysler Town & Country (L6-4.1L, L8-5.3L) and the 1946-1948 Dodge Deluxe (L6-3.8L). See the Buyer's Guide tab for the full list.
The belt rides in the pulley grooves of the fan and generator drive, carrying engine power to those accessories. Some applications list this position as fan and alternator/generator or as generator. Each listed application uses one belt.
- Double cog construction: a non-banded V-belt with a 38-degree angle.
- Sizing: 0.75-inch top width, 49-inch (1244.60 mm) effective length and 49.64-inch (1260.86 mm) outside circumference.
- Temperature range: rated for operating temperatures from -35°F to 175°F (-37.2°C to 79.4°C).
- Standards: SAE J636 and SAE J637.
Signs this belt may need replacing include squealing, slipping, and cracks, glazing or fraying along the sides. Other parts can cause the same symptoms, so diagnose the cause first. If a worn belt is the problem, this belt replaces it. Country of origin: Indonesia.
Interchange: 25-12400 · 25-12430 · 25-24489
2512400 · 2512430 · 2524489 · T24489 · 628 · 23498 · TR24489 · 17A1240 · 409 · 44 · 660 · 660T · 24493 · 202 · 24495
This part cross-references / interchanges with the following part numbers:
T24489, 628, 23498, TR24489, 17A1240, 409, 44, 660, 660T, 24493, 24490, 25-12400, 25-12430, 25-24489, 202, 24495, 2L1477, 2M4049, 8F2434, 964278, 178495, 3040380, 5177306, D1102-5443, 9044488, C7TS-8620-F, GL5144, GT24493, 2194243, 332338-R1, 04120-21949, 04120-31949, B24492A, B24493A, B24497A, BH151, PB11, 02-7016835
