Harmonic Balancer for 1979-1983 Nissan 280ZX & More - PowerBond by Dayco PB1212N

$376.99

Vehicles this part fits

    Part number: PB1212N
    EAN: 9317010000953
    Condition: New
    Weight: 6.60 LBS
    Item Package Quantity: 1
    $376.99

    Out of stock

    Have questions?

    Dayco Engine Harmonic Balancer P/N:PB1212N
    Dayco Engine Harmonic Balancer P/N:PB1212N
    $376.99
    $376.99

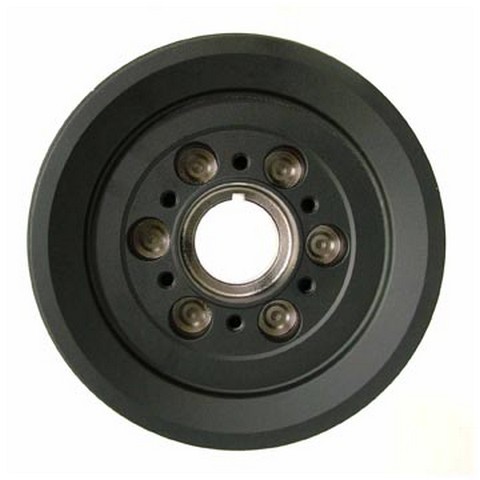

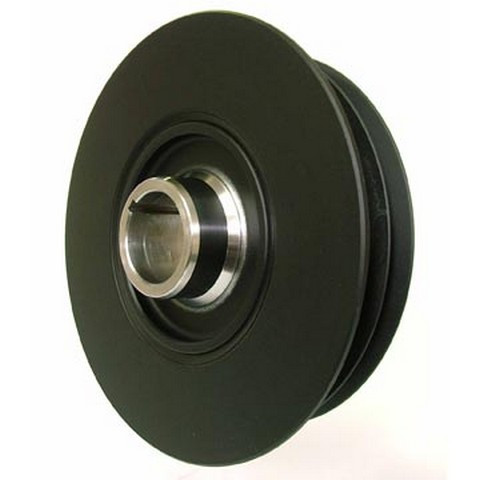

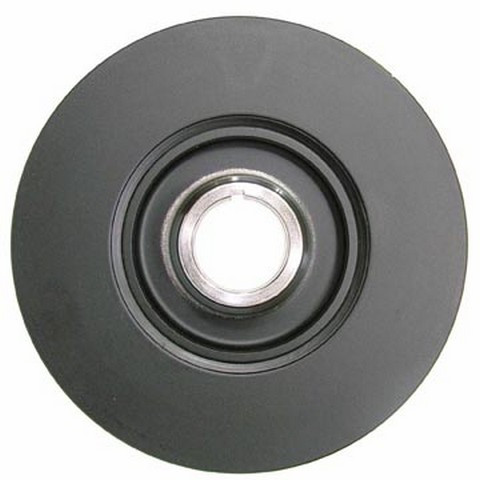

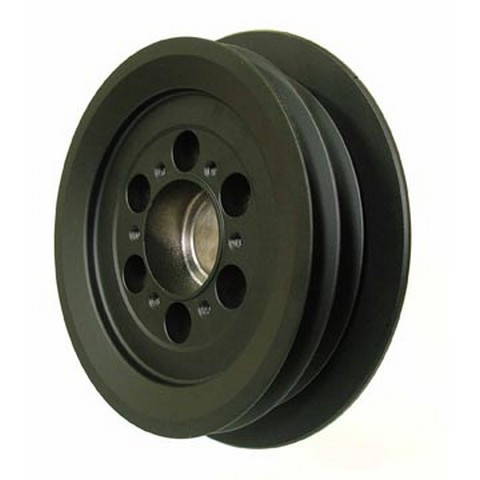

    PowerBond by Dayco PB1212N harmonic balancer for the 1979-1983 Nissan 280ZX and other vehicles damps crankshaft vibration and turns the drive belts through two integrated pulleys. Some parts listings call it an engine harmonic balancer.

    • Cast iron outer ring
    • Two integrated V-belt pulleys, 159.300 mm and 149.100 mm in outside diameter
    • Timing marks are on the balancer
    • Neutral balance with no counterweight
    • Six bolt holes and a 34.96 mm crank bore

    Quick facts

    • Part: PowerBond by Dayco PB1212N harmonic balancer
    • Also called: engine harmonic balancer
    • Fits: 1979-1983 Nissan 280ZX and other vehicles
    • Material: Cast iron outer ring
    • Condition: New

    A worn balancer can show up as engine vibration, a wobbling pulley or visible cracks. Before you replace the balancer, rule out the drive belts and any other source of that vibration or noise.

    Fits

    It is a 1975-1978 Nissan 280Z harmonic balancer and also fits the 1979-1983 Nissan 280ZX and the 1974-1975 Nissan 260Z 6-cylinder 2.6L. The 1979-1983 Nissan 280ZX takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Overall outside diameter: 180.00 mm (7.087 in)
    • Crank bore: 34.96 mm (1.377 in)
    • Nose outside diameter: 47.95 mm (1.888 in)
    • Pulley 1 outside diameter: 159.300 mm (6.272 in)
    • Pulley 2 outside diameter: 149.100 mm (5.871 in)
    • Overall width: 59.20 mm (2.331 in)
    • Ring width: 26.49 mm (1.043 in)
    • Bolt holes: 6

    Build and materials

    • Outer ring material: cast iron
    • Integrated pulleys: 2, both V-belt
    • Timing marks: yes
    • Counterweight balance: neutral, no counterweight
    • Condition: new

    In the box

    One harmonic balancer. Hardware, a woodruff key, a crank trigger or exciter plate and installation instructions are not included, so plan on new bolts.

    Interchange: 594-813 · DA-41

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NA, 594-813, DA-41

    Frequently Asked Questions

    Is this PowerBond by Dayco PB1212N a 1979-1983 Nissan 280ZX harmonic balancer?

    Yes. PowerBond by Dayco PB1212N is listed for the 1979-1983 Nissan 280ZX, and that car takes one balancer.

    Does the PB1212N harmonic balancer come with bolts or a woodruff key?

    No. This PowerBond by Dayco listing is the balancer only. Hardware, a woodruff key and installation instructions are not included, so plan on new bolts.

    What is the crank bore on this harmonic balancer?

    The crank bore is 34.96 mm (1.377 in). The overall outside diameter is 180.00 mm (7.087 in) and the overall width is 59.20 mm (2.331 in).

    How can I check a cast iron harmonic balancer for damage?

    With the engine off and cool, look at the pulley for cracks, deep grooves or a ring that has shifted from its timing marks. A shop can test for wobble and vibration.

    Does the PowerBond by Dayco PB1212N have timing marks?

    Yes. PowerBond by Dayco PB1212N has timing marks and a neutral balance with no counterweight.
