Harmonic Balancer for 1993-1997 Toyota Land Cruiser & More - Dayco PB1413SS

$434.99

Dayco Engine Harmonic Balancer PB1413SS - view 2

Dayco Engine Harmonic Balancer PB1413SS - view 3

Dayco Engine Harmonic Balancer PB1413SS - view 4

Dayco Engine Harmonic Balancer PB1413SS - view 5

Part number: PB1413SS

EAN: 9317010714133

Condition: New

Weight: 13.40 LBS

Item Package Quantity: 1

$434.99

Current Stock: 3

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

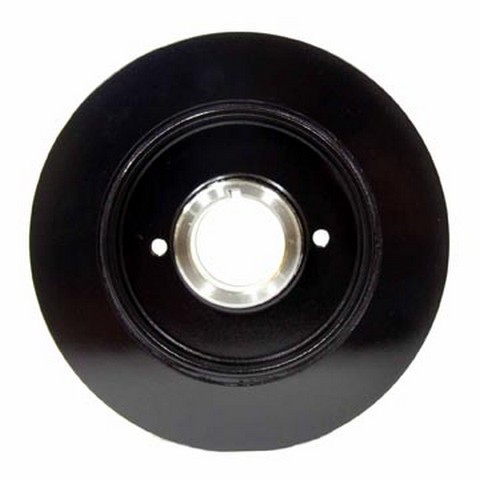

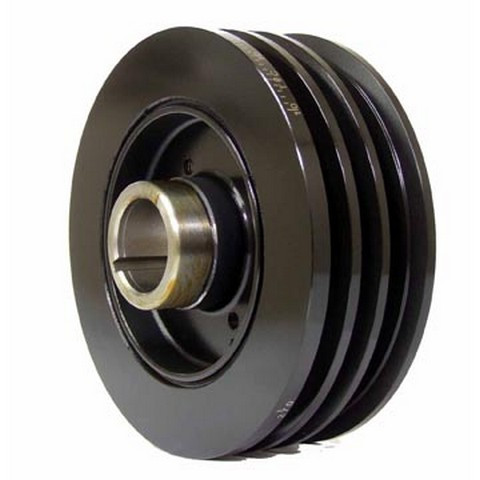

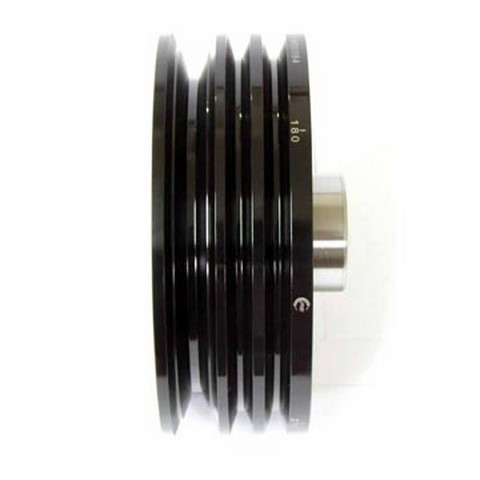

Dayco Engine Harmonic Balancer P/N:PB1413SS

$434.99

Description

Dayco PB1413SS harmonic balancer for the 1993-1997 Toyota Land Cruiser and other vehicles absorbs vibration from the crankshaft at the front of the engine.

Steel outer ring
Three integrated pulleys, two of them V-belt type
Timing marks on the balancer
Neutral balance with no counterweight

Quick facts

Part: Dayco PB1413SS harmonic balancer
Also called: engine harmonic balancer
Fits: 1993-1997 Toyota Land Cruiser and other vehicles
Material: Steel (outer ring)
Condition: New

A worn engine harmonic balancer can show up as engine vibration, belt noise, or a hub that looks cracked or damaged when you inspect it with the engine off. A loose or worn drive belt, a bad accessory pulley or a failing accessory can also make noise and vibration, so find the cause before you buy a new balancer.

Fits

It fits the 1993-1997 Toyota Land Cruiser and the 1996-1997 Lexus LX450, and a vehicle needs just one.

Specifications

Fit and size

Quantity per vehicle: 1
Crank bore: 38.02 mm (1.497 in)
Overall outside diameter: 176.40 mm (6.945 in)
Nose outside diameter: 51.90 mm (2.044 in)
Pulley outside diameter (pulleys 1 and 2): 191.000 mm (7.520 in)
Overall width: 79.20 mm (3.119 in)
Ring width: 61.98 mm (2.441 in)
Bolt hole quantity: 2

Build and materials

Outer ring material: steel
Integrated pulleys: 3
Pulley 1 and 2 type: V-belt
Timing marks: yes
Counterweight balance: neutral, no counterweight
Crank trigger/exciter plate: none
Condition: new

In the box

One harmonic balancer. Hardware, a Woodruff key and installation instructions are not included, so plan on new bolts.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

Buyer's Q&A

Frequently Asked Questions

Is this Dayco harmonic balancer the right one for the 1996-1997 Lexus LX450?

Yes. Dayco PB1413SS fits the 1996-1997 Lexus LX450.

Does the Dayco PB1413SS harmonic balancer come with bolts or a key?

No. The Dayco PB1413SS listing is one harmonic balancer, and hardware, the Woodruff key and installation instructions are not included, so plan on new bolts.

What crank bore does this harmonic balancer have?

The crank bore is 38.02 mm (1.497 in), and the overall outside diameter is 176.40 mm (6.945 in). The outer ring is steel.

How can I tell if a harmonic balancer is worn?

With the engine off and cool, look for cracks or visible damage on the balancer. Vibration felt while driving can also be a sign, though other parts can cause it too.

Does this harmonic balancer have timing marks and a counterweight?

It has timing marks but no counterweight, since the balance is neutral. It also has three integrated pulleys, two of them V-belt type.
