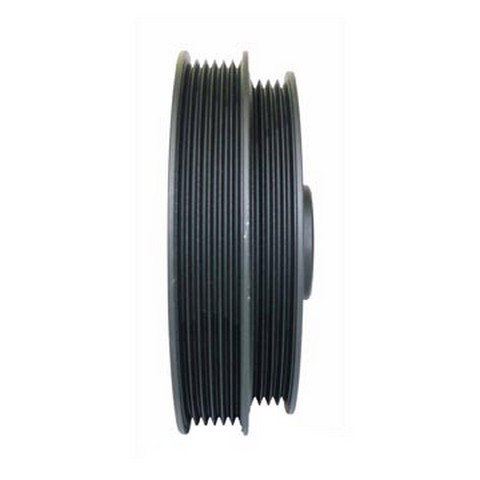

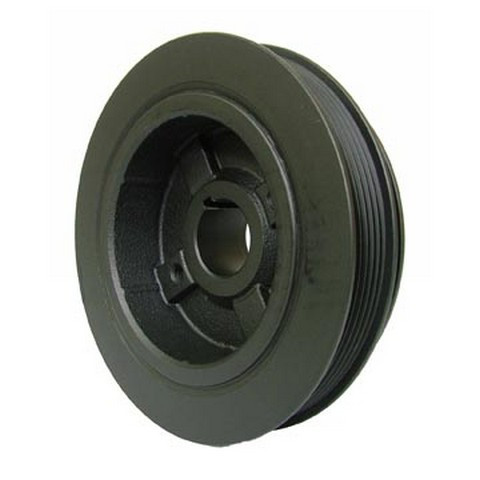

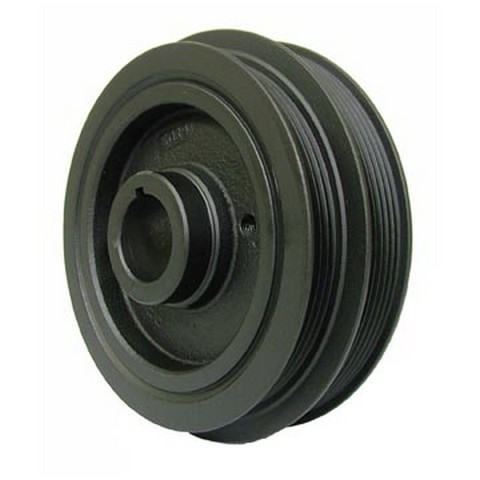

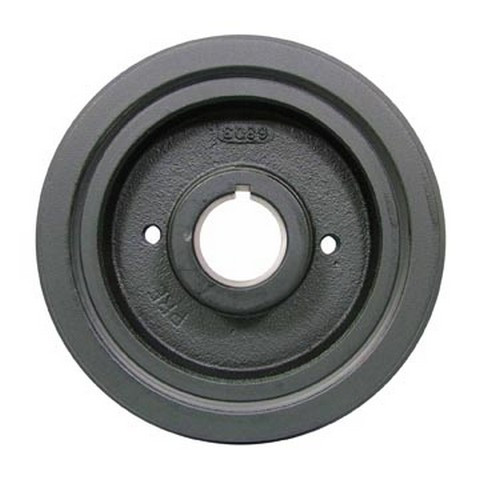

Dayco PB1468N harmonic balancer for the 2001-2003 Toyota Highlander V6 3.0L, the 2004-2010 Highlander V6 3.3L and other vehicles damps crankshaft vibration and carries two serpentine belt pulleys. This Dayco harmonic balancer, also called an engine harmonic balancer, sits on the crankshaft nose.
- Cast iron outer ring
- Two integrated serpentine pulleys, 134 mm and 150 mm in outside diameter
- Timing marks on the balancer
- Neutral balance with no counterweight
Quick facts
- Part: Dayco PB1468N harmonic balancer
- Also called: engine harmonic balancer
- Fits: the 2001-2003 Toyota Highlander V6 3.0L, the 2004-2010 Highlander V6 3.3L and other vehicles
- Material: Cast iron (outer ring)
- Condition: New
A wobbling pulley, a visible crack or vibration at idle can mean the balancer is wearing out. Before you replace it, rule out a loose or worn serpentine belt and tensioner, since either can make belt noise and vibration on its own.
Fits
As the crankshaft balancer, it also fits the 1994-2006 Toyota Camry V6 3.0L, the 2004-2006 Camry V6 3.3L and the 1998-2006 Toyota Sienna, along with many other Toyota and Lexus models.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall outside diameter: 157.00 mm (6.182 in)
- Crank bore: 31.01 mm (1.221 in)
- Nose outside diameter: 48.00 mm (1.890 in)
- Overall width: 53.00 mm (2.087 in)
- Ring width: 44.98 mm (1.771 in)
- Bolt holes: 2
- Pulley 1 outside diameter: 134.000 mm (5.276 in)
- Pulley 2 outside diameter: 150.000 mm (5.906 in)
Build and materials
- Outer ring material: cast iron
- Integrated pulleys: 2, both serpentine
- Timing marks: yes
- Counterweight balance: neutral, no counterweight
- Condition: new
In the box
This listing holds one harmonic balancer, and the engine takes one. Hardware, a Woodruff key and installation instructions are not included, so plan on new fasteners rather than reusing the old ones.
Interchange: 594-140 · DA-31
102133 · 6005293
This part cross-references / interchanges with the following part numbers:
102133, 594-140, 6005293, DA-31
Frequently Asked Questions
Does this Toyota Camry harmonic balancer fit the 1994-2006 Camry V6 3.0L and the 2004-2006 Camry V6 3.3L?
Yes. Dayco PB1468N fits both of those Camry engines in their years, and it also fits the 1998-2006 Toyota Sienna. If your car is not one of these, look it up in the "Vehicles it fits" section.
Does the Dayco PB1468N come with a Woodruff key or mounting hardware?
No. The Dayco PB1468N listing is one harmonic balancer; hardware, a Woodruff key and installation instructions are not included.
What are the crank bore and outside diameter of this balancer?
The crank bore is 31.01 mm (1.221 in) and the overall outside diameter is 157.00 mm (6.182 in). The two integrated serpentine pulleys measure 134.000 mm and 150.000 mm across.
How can I check whether my harmonic balancer is worn out?
With the engine off and cool, look for a cracked or damaged ring and for a pulley that wobbles when you grab it. A shop can confirm whether a vibration is coming from the balancer.
Is 594-140 the same part as the Dayco PB1468N?
Yes. 594-140 is a cross-reference number for the Dayco PB1468N harmonic balancer, so a part listed under it is replaced by this one.
