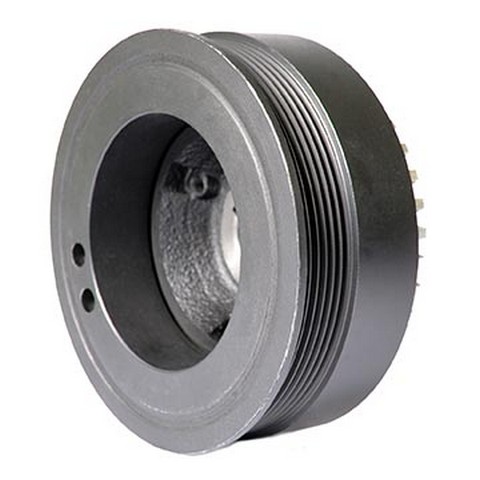

PowerBond by Dayco PB1674N harmonic balancer for the 1995-1997 Ford Ranger 4-cylinder 2.3L, the 1998-2001 Ranger 4-cylinder 2.5L and other vehicles absorbs crankshaft vibration and carries the serpentine belt. It mounts on the front of the crankshaft.
- Cast iron outer ring
- Integrated serpentine pulley with 6 grooves and a 150.00 mm outside diameter
- Timing marks on the balancer

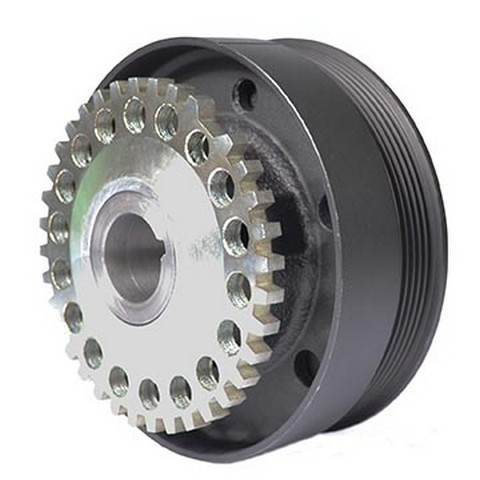

- Crank trigger/exciter plate on the balancer
- Neutral balance with no counterweight
- 32.00 mm crank bore with three bolt holes
Quick facts
- Part: PowerBond by Dayco PB1674N harmonic balancer
- Also called: engine harmonic balancer
- Fits: the 1995-1997 Ford Ranger 4-cylinder 2.3L, the 1998-2001 Ranger 4-cylinder 2.5L and other vehicles
- Material: Cast iron outer ring
- Condition: New
Cracks in the outer ring or a damaged pulley can mean the balancer has failed. Belt noise and vibration can also come from a worn serpentine belt, a weak tensioner or a failing accessory bearing, so find the actual cause before you buy. If the balancer is at fault, this one replaces it.
Fits
It also fits the 1998-2001 Mazda B2500 and the 1994-1997 Mazda B2300. This listing is one balancer, and a 1998-2001 Mazda B2500 takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall outside diameter: 156.50 mm (6.162 in)
- Pulley outside diameter: 150.00 mm (5.906 in)
- Crank bore: 32.00 mm (1.260 in)
- Overall width: 81.50 mm (3.209 in)
- Ring width: 57.00 mm (2.245 in)
- Bolt holes: 3
Build and materials
- Outer ring material: cast iron
- Pulley: 1 integrated serpentine pulley, 6 grooves
- Timing marks: yes
- Crank trigger/exciter plate: yes
- Counterweight balance: neutral, no counterweight
- Condition: New
- Country of origin: Australia
In the box
One harmonic balancer. Mounting hardware, a Woodruff key and installation instructions are not included, so plan on new bolts rather than reusing the old ones.
Interchange: 594-418
6007409
Frequently Asked Questions
Does this Ford Ranger harmonic balancer fit the 1998-2001 Ranger 4-cylinder 2.5L?
Yes. PowerBond by Dayco PB1674N fits the 1998-2001 Ford Ranger 4-cylinder 2.5L, and it also fits the 1995-1997 Ranger 4-cylinder 2.3L.
Is the PB1674N balancer correct for the 1998-2001 Mazda B2500?
Yes. This balancer fits the 1998-2001 Mazda B2500 and the 1994-1997 Mazda B2300 without an engine restriction.
Do the bolts and a Woodruff key come with the PB1674N balancer?
No. PowerBond by Dayco PB1674N is the balancer alone. Hardware, a Woodruff key and installation instructions are not included.
What size is the crank bore on this harmonic balancer?
The crank bore is 32.00 mm (1.260 in). The overall outside diameter is 156.50 mm, and the serpentine pulley is 150.00 mm across with 6 grooves.
What can I look for by eye on a worn engine harmonic balancer?
With the engine off, look for cracks in the cast iron outer ring or a damaged serpentine pulley. If you notice belt noise or vibration, a shop can inspect the balancer.
