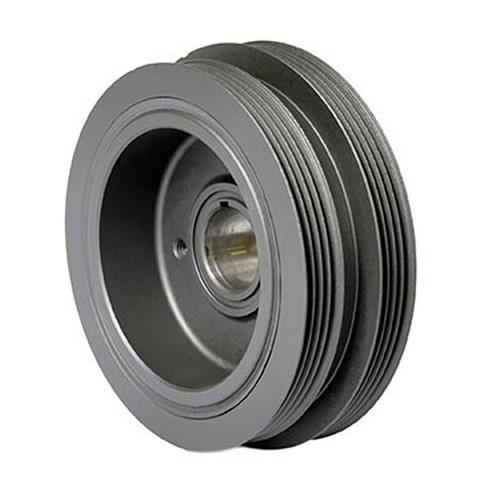

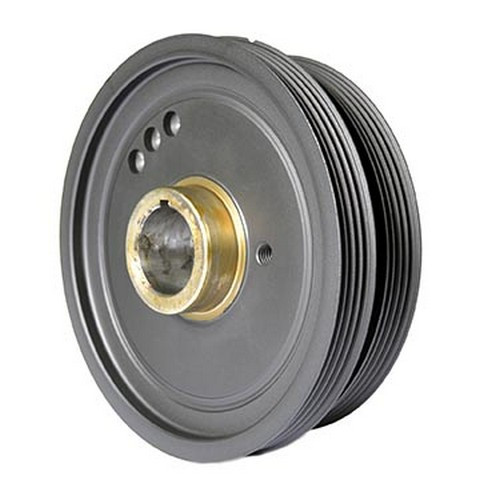

PowerBond by Dayco PB1730N harmonic balancer for the 1999-2008 Suzuki Grand Vitara and other vehicles damps crankshaft vibration. It also has two integrated serpentine pulleys.
- Pulley outside diameters of 149 mm and 138 mm
- Steel outer ring
- Timing marks on the balancer
- Neutral counterweight balance with no counterweight
Quick facts
- Part: PowerBond by Dayco PB1730N harmonic balancer
- Also called: engine harmonic balancer
- Fits: 1999-2008 Suzuki Grand Vitara and other vehicles
- Material: Steel (outer ring)
- Condition: New
A worn engine harmonic balancer can show up as belt noise, vibration or a cracked or shifted outer ring. With the engine off and cool, look it over for cracks and worn timing marks. Belt noise can also come from the belt or tensioner, so find the cause before replacing the balancer. A 1999-2008 Suzuki Grand Vitara takes one.
Fits
This balancer is listed for a wide range of Suzuki and Chevrolet models, led by the 1999-2008 Suzuki Grand Vitara, the 2002-2006 Suzuki XL-7 and the 2001-2004 Chevrolet Tracker V6 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall outside diameter: 152.00 mm (5.985 in)
- Crank bore: 31.00 mm (1.221 in)
- Nose outside diameter: 45.00 mm (1.772 in)
- Overall width: 55.50 mm (2.186 in)
- Ring width: 46.50 mm (1.831 in)
- Bolt holes: 2
- Pulley 1 outside diameter: 149.00 mm (5.867 in)
- Pulley 2 outside diameter: 138.00 mm (5.434 in)
Build and materials
- Integrated pulleys: 2, both serpentine
- Outer ring material: steel
- Timing marks: yes
- Counterweight balance: neutral, no counterweight
- Crank trigger/exciter plate: no
- Condition: New
In the box
One harmonic balancer. Hardware, a Woodruff key and installation instructions are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 594-833
102266
Frequently Asked Questions
Is this a Chevy Tracker harmonic balancer for the 2001-2004 V6 2.5L?
Yes. PowerBond by Dayco PB1730N is listed for the 2001-2004 Chevrolet Tracker V6 2.5L. For a different car, look up its year and engine in the "Vehicles it fits" section.
Is this balancer a match for the 2002-2006 Suzuki XL-7?
Yes. This harmonic balancer is listed for the 2002-2006 Suzuki XL-7, and that vehicle takes one.
Does the PowerBond PB1730N come with a Woodruff key and bolts?
No. PowerBond by Dayco PB1730N ships without hardware, a Woodruff key or installation instructions, so those need to be sourced separately.
What is the crank bore on this harmonic balancer?
The crank bore is 31.00 mm (1.221 in). The overall outside diameter is 152.00 mm (5.985 in) and the nose outside diameter is 45.00 mm (1.772 in).
Does this balancer have timing marks?
Yes. This balancer has timing marks and no crank trigger/exciter plate, and its counterweight balance is neutral with no counterweight.
