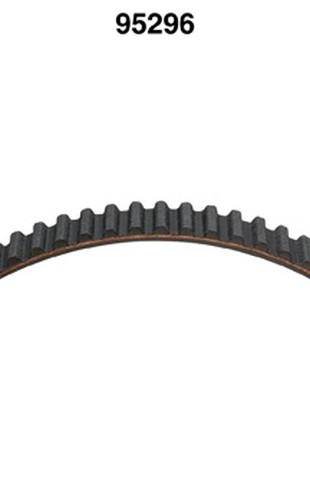

Dayco 95296 timing belt for the 1999-2005 Volkswagen Jetta 4-cylinder 2.0L and other vehicles keeps the camshaft turning in step with the crankshaft. This Dayco timing belt is also called an engine timing belt and goes in the camshaft position.
- Hi Temp construction in highly saturated (Acryl) nitrile
- 138 teeth with a round tooth profile and flat tip
- Tooth pitch of 8.000 mm (.31496 in)
- Effective length of 43.47 in (1104 mm)
Quick facts
- Part: Dayco 95296 timing belt
- Also called: engine timing belt
- Fits: the 1999-2005 Volkswagen Jetta 4-cylinder 2.0L and other vehicles
- Position: Camshaft
- Condition: New
Cracks, fraying or missing teeth on the belt can mean it is worn, and a belt that has slipped can leave the engine out of time. Before you replace the belt, rule out other causes of the same symptoms, such as ignition or sensor faults, so you are changing the right part. The camshaft drive takes one belt per engine.
Fits
This belt is a direct-fit replacement for a wide range of Volkswagen models, including the 1999-2006 Volkswagen Golf 4-cylinder 2.0L and the 2007-2010 Volkswagen Golf City. To see whether your own car is covered, look it up in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Position: Camshaft
- Quantity per vehicle: 1
- Number of teeth: 138
- Effective length: 43.47 in (1104 mm)
- Tooth pitch: 8.000 mm (.31496 in)
Build and materials
- Tooth profile: Round tooth, with flat tip
- Construction: Hi Temp, highly saturated (Acryl) nitrile
- Condition: New
Interchange: TB-296 · 026-1034
T296 · B296 · CD296 · 40296 · 250296
This part cross-references / interchanges with the following part numbers:
TB296, TB-296, 026-1034, T296, B296, CD296, 40296, 250296, 06A109119C, 068.109.119B, 06A.109.119B, 06A.109.119C, 06A.109.119D, 06A-109-119D, 06A109119J, 06A109119K
Frequently Asked Questions
Is this a VW Jetta timing belt replacement for the 1999-2005 Volkswagen Jetta 4-cylinder 2.0L?
Yes. Dayco 95296 is listed for the 1999-2005 Volkswagen Jetta 4-cylinder 2.0L, and the engine takes one belt. For another year or model, look it up in the "Vehicles it fits" section.
Does this VW Golf timing belt fit the 1999-2006 Volkswagen Golf 4-cylinder 2.0L?
Yes. Dayco 95296 is listed for the 1999-2006 Volkswagen Golf 4-cylinder 2.0L, and it also covers the 2007-2010 Volkswagen Golf City.
How many teeth does the Dayco 95296 timing belt have?
The Dayco 95296 belt has 138 teeth with a round tooth profile and flat tip. Its tooth pitch is 8.000 mm and its effective length is 43.47 in (1104 mm).
Do cracks or missing teeth mean this timing belt needs replacing?
Yes. Cracks, fraying or missing teeth can mean the belt is worn, so have it replaced promptly. A shop can inspect the belt and confirm the engine timing.
Is the 026-1034 number the same belt as Dayco 95296?
Yes. 026-1034 is one of the cross-reference numbers for Dayco 95296, along with TB-296 and T296. The full list is on the Interchange line.
