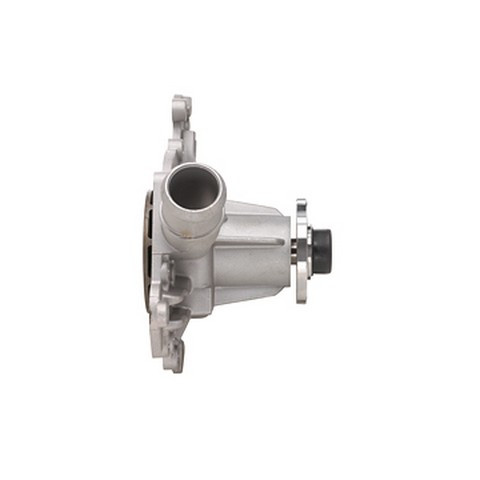

Keep coolant circulating between the engine and radiator with the Dayco water pump DP825, a direct-fit replacement for the 1986-1992 Ford Ranger, 1986-1990 Ford Bronco II and 1988-1989 Merkur Scorpio with the V6-2.9L engine. Dayco lists this pump for auto and light-truck applications, and it is designed for a V-belt drive.
- Aluminum housing: The pump body is made of aluminum.
- Impeller: 10 impeller vanes with standard rotation move coolant through the cooling system.
- Mounting layout: The pump has 12 mounting holes and a 4-hole hub.
- Drive type: Driven by a V-belt.
What's included: The water pump only. The pulley, fan clutch, thermostat and housing, back housing and mounting hardware are not included. Transfer or replace the pulley and fan clutch as the service procedure directs. Consult the vehicle service information for the correct fasteners and whether they may be reused.
Signs a water pump may need replacing: Look for coolant seepage around the pump, a rising temperature gauge, or grinding or whining noise from the pump area. These symptoms can have other causes, so diagnose the cooling system before replacing parts.
Country of origin: China. See the "Vehicles it fits" section for complete fitment details.
Interchange: 252-138 · 252-172 · WP-654 · 55-23312 · 55-23313 · 57-1338 · 58-343 · 18-358 · 125-1580 · 125-5045
252138 · 252172 · WP654 · 5523312 · 5523313 · 571338 · 58343 · 18358 · 1251580 · 1255045 · AW4042 · 98081 · W654M · 43054 · CP4042 · T4125 · US4042
This part cross-references / interchanges with the following part numbers:
252-138, 252-172, WP-654, AW4042, 98081, 55-23312, 55-23313, 57-1338, 58-343, W654M, 18-358, 125-1580, 125-5045, 43054, CP4042, T4125, US4042, 86TF8505BD, E6TZ8501A, E7RY8501A
Frequently Asked Questions
Is DP825 the right Ford Ranger water pump for a '92 Ranger?
Yes. It is listed for the 1986-1992 Ford Ranger with the V6-2.9L engine. Check the "Vehicles it fits" section to confirm it matches your vehicle.
What does an engine water pump do?
It is a belt-driven pump that circulates coolant through the engine and radiator, helping carry heat away from the engine.
What comes in the box?
The water pump only. The pulley, fan clutch, thermostat and housing, back housing and mounting hardware are not included.
What are the key specs of this pump?
It has an aluminum housing, 10 impeller vanes with standard rotation, 12 mounting holes, a 4-hole hub and a V-belt drive. Country of origin: China.
What are signs the water pump may need replacing?
Coolant seepage around the pump, overheating, or grinding noise from the pump may be signs. These can have other causes, so diagnose the cooling system first.
