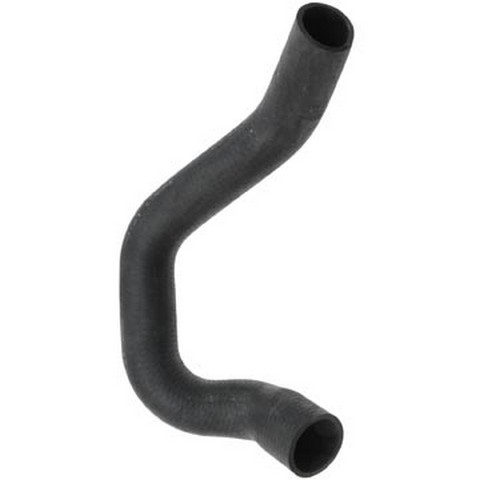

Dayco 71475 lower radiator coolant hose for the 1990-1994 Chevrolet Astro and other vehicles carries engine coolant between the radiator and the engine. This Dayco coolant hose replaces a lower hose that has cracked, softened or started to leak.
- Dual I.D. hose with 1.50 in and 1.75 in sizes
- EPDM hose material
- Trunk height of 13 1/4 in
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC
Quick facts
- Part: Dayco 71475 radiator coolant hose
- Fits: 1990-1994 Chevrolet Astro and other vehicles
- Position: Lower
- Material: EPDM
- Condition: New
A worn lower hose can show up as coolant drips, a hose that feels soft or collapses when squeezed, or a coolant level that keeps dropping. A leak can also start at a clamp or at the radiator, so with the engine off and cool, look the hose over for cracks, bulges and wet stains at its ends before you replace it.
Fits
This hose fits the 1990-1994 Chevrolet Astro and the 1990-1994 GMC Safari. The 1990 model year of each is listed with the V6-4.3L engine, and each takes one hose.
Specifications
Fit and size
- Position: Lower
- Quantity per vehicle: 1
- Dual I.D. sizes: 1.50 in (1 1/2 in) and 1.75 in (1 3/4 in)
- Trunk height: 13.25 in (13 1/4 in)
Build and materials
- Hose type: Dual I.D. hose
- Material: EPDM
- SAE specification: SAE J20R4 Class D-1, SAE J1684 Type EC
- Condition: New
In the box
One lower radiator coolant hose. A protective sleeve and a heat shield are not included.
Interchange: 22249M · 21872 · 61401 · 62495 · 8562
This part cross-references / interchanges with the following part numbers:
22249M, 21872, 61401, 62495, 8562, 15571224, 15628882, 15650900, 15953810, 15973787
Frequently Asked Questions
Is the Dayco 71475 lower radiator coolant hose right for a 1990-1994 GMC Safari?
Yes. Dayco 71475 fits the 1990-1994 GMC Safari, and the 1990 model year is listed with the V6-4.3L engine.
Does this Dayco radiator coolant hose include a protective sleeve or heat shield?
No. Dayco 71475 is the hose alone, with no protective sleeve and no heat shield.
What material is this lower radiator coolant hose made from?
This hose is made of EPDM and is built to SAE J20R4 Class D-1 and SAE J1684 Type EC.
What sizes does this dual I.D. coolant hose come in?
The two sizes are 1.50 in (1 1/2 in) and 1.75 in (1 3/4 in), and the trunk height is 13.25 in (13 1/4 in).
How can I tell if my lower coolant hose is worn out?
With the engine off and cool, cracks, bulges, soft spots or coolant staining along the hose can mean it is worn. A hose that collapses when squeezed can point the same way.
