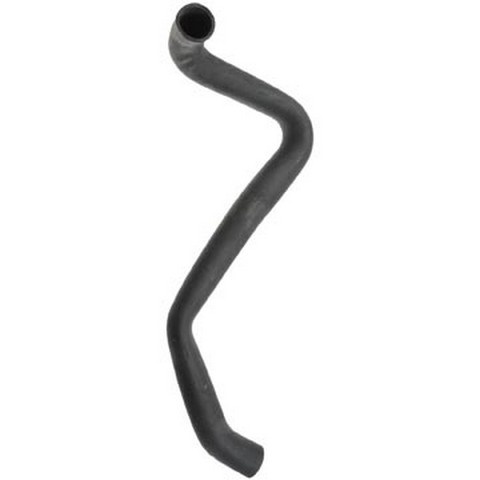

Dayco 71713 upper radiator coolant hose for the 1994-1996 Dodge Ram 2500 V8 5.2L, the 1994-2002 Ram 2500 V8 5.9L and other vehicles carries coolant from the engine to the top of the radiator.
- Single I.D. hose type
- EPDM hose material
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC
Quick facts
- Part: Dayco 71713 upper radiator coolant hose
- Fits: the 1994-1996 Dodge Ram 2500 V8 5.2L, the 1994-2002 Ram 2500 V8 5.9L and other vehicles
- Position: Upper
- Material: EPDM
Coolant seeping at the hose ends, a soft or swollen hose, or cracks in the rubber can mean this hose is worn, though a tired radiator cap or a sticking thermostat can sit behind the same signs, so find the cause before you replace it.
Fits
It fits the 1994-1996 Dodge Ram 2500 V8 5.2L, the 1994-2002 Ram 2500 V8 5.9L, the 1994-2001 Dodge Ram 1500 V8 5.2L or 5.9L and the 1994-2002 Dodge Ram 3500 V8 5.9L. A single upper hose goes on each of them, at the top of the radiator.
Specifications
Fit and size
- Position: upper
- Quantity per vehicle: 1
Build and materials
- Hose type: single I.D. hose
- Material: EPDM
- SAE specification: SAE J20R4 Class D-1, SAE J1684 Type EC
Interchange: 26239X · 22043 · 62069 · 1023 · 8726
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
26239X, 22043, 62069, 1023, 8726, 52028643, 52028643AB, 52029003, 52029019
Frequently Asked Questions
Does the Dayco 71713 fit a 1994-2001 Dodge Ram 1500 V8 5.9L?
Yes. Dayco 71713 fits the 1994-2001 Dodge Ram 1500 with the V8 5.2L or the V8 5.9L, and a single hose goes on each of them.
Is this Dayco coolant hose the upper or the lower hose?
It is the upper hose. Dayco 71713 is catalogued as an upper radiator coolant hose and is a single I.D. hose.
What standards does the Dayco radiator coolant hose meet?
This Dayco radiator coolant hose is built to SAE J20R4 Class D-1 and SAE J1684 Type EC, and it is made of EPDM.
How can I tell if this upper radiator hose is going bad?
With the engine off and cool, look for cracks, a soft or swollen hose, or coolant seepage at the ends. A shop can pressure-test the cooling system if you are unsure.
Does Dayco 71713 replace 26239X?
Yes. 26239X is listed as an interchange number for Dayco 71713; the other cross-reference numbers are on the Interchange line of this page.
