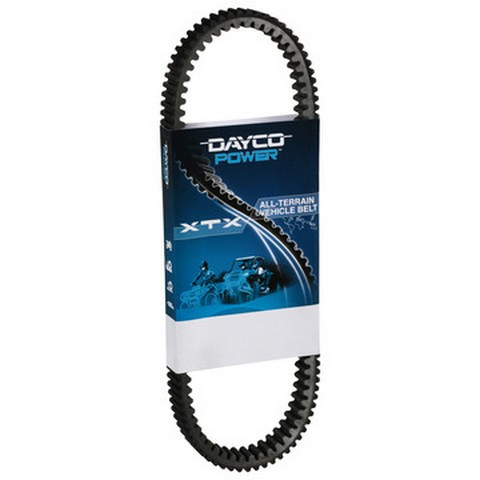

Dayco XTX XTX2275 CVT belt for the 2022-2026 Polaris RZR Trail S 1000 Ultimate and other vehicles carries engine power through the continuously variable transmission. It runs between the drive and driven clutches.
- EBS (engine braking system) belt

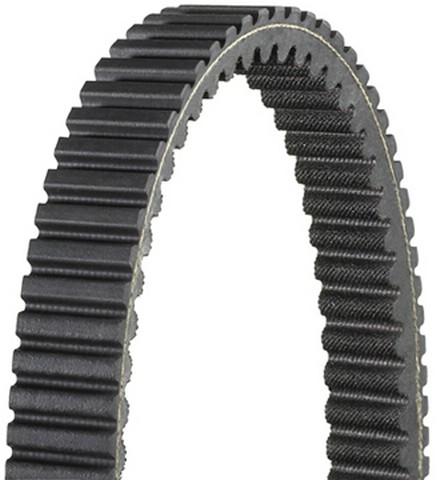

- Deep top cogs and round bottom cogs
- Rubber top
- Rated for operation from -40 F to 235 F (-40 C to 112.7 C)
Quick facts
- Part: Dayco XTX XTX2275 CVT belt
- Also called: cvt transmission belt
- Fits: 2022-2026 Polaris RZR Trail S 1000 Ultimate and other vehicles
- Position: Drive belt
- Material: Rubber (top)
- Condition: New
Cracked rubber, missing cogs or slipping under load can mean the belt is worn, though a worn drive clutch or driven clutch can be behind the slipping as well. Find the cause before you replace the belt.
Fits
This belt is listed for a wide range of Polaris RZR and General models, including the 2022-2026 Polaris RZR Trail S 1000 Ultimate, the 2023-2026 Polaris General XP 1000 Premium and the 2023-2026 Polaris General XP 1000 Sport. The 2023-2026 Polaris General XP 1000 Premium takes one. If your Polaris is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Outside circumference: 42.750 in (1085.850 mm)
- Top width: 1.280 in (32.512 mm)
- Thickness: .655 in
- Angle: 26 degrees
Build and materials
- Type: EBS (engine braking system) belt
- Top material: rubber
- Top cog type: deep
- Bottom cog type: round
- Operating temperature: -40 F to 235 F (-40 C to 112.7 C)
- Condition: new
Interchange: UA441 · WE265024 · 27C4159
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
UA441, NA, WE265024, 27C4159, 3211180
Frequently Asked Questions
Does the Dayco XTX XTX2275 fit the 2023-2026 Polaris General XP 1000 Premium?
Yes. Dayco XTX XTX2275 is listed for the 2023-2026 Polaris General XP 1000 Premium, which takes one belt. Other Polaris models are in the "Vehicles it fits" section.
What size is the Dayco XTX XTX2275 belt?
Dayco XTX XTX2275 measures 42.750 in (1085.850 mm) around the outside and 1.280 in (32.512 mm) across the top. It is .655 in thick with a 26-degree angle.
Is this CVT transmission belt an EBS type?
Yes. This belt is an EBS (engine braking system) belt with deep top cogs and round bottom cogs.
How can I tell if this belt's rubber top is worn?
With the engine off and cool, look for cracked rubber, glazed surfaces or missing cogs on the belt. A shop can also check the clutches the belt runs on.
What temperature range is this CVT belt rated for?
The belt is rated for operation from -40 F to 235 F (-40 C to 112.7 C).
