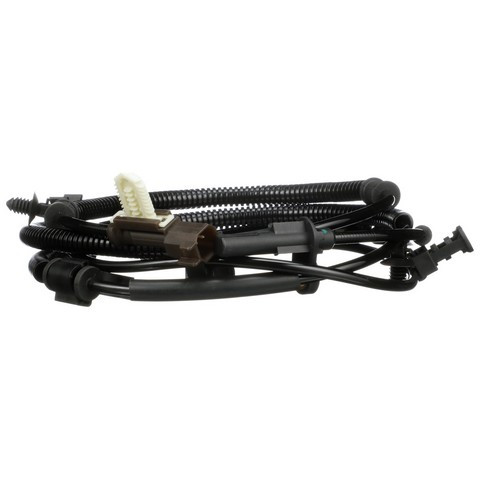

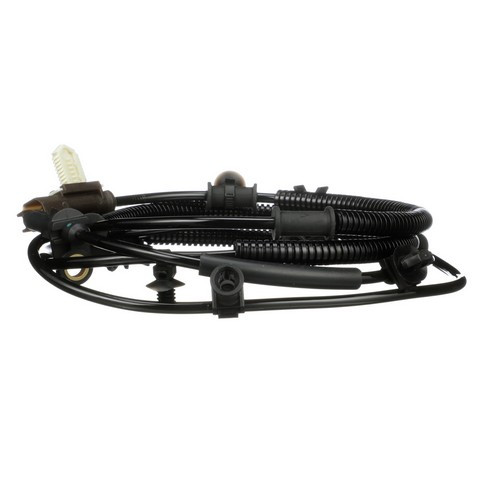

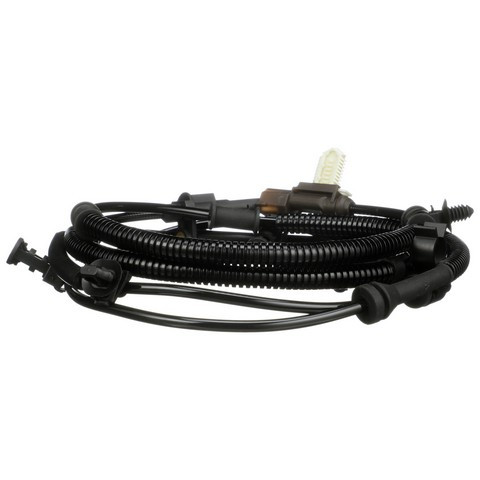

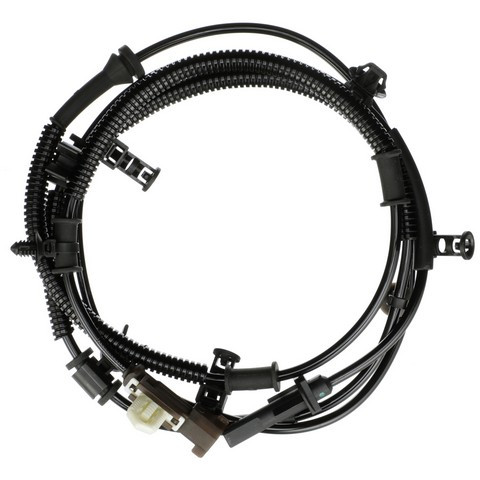

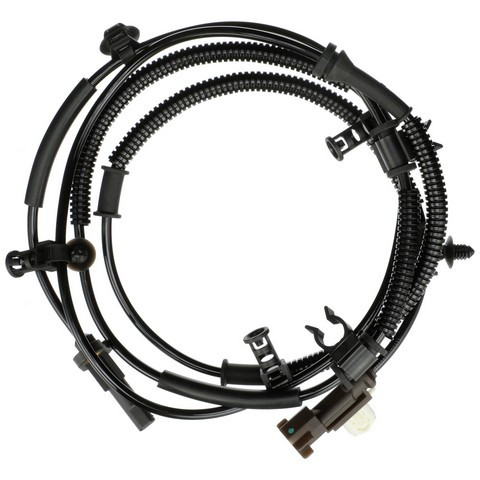

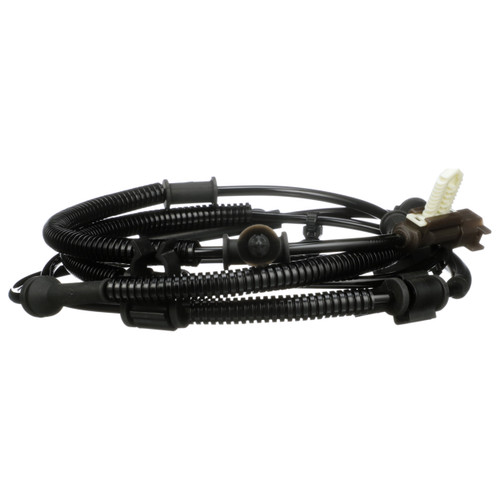

Delphi SS11709 rear right ABS wheel speed sensor for the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L reads wheel rotation and sends the speed signal to the ABS module. This Delphi ABS wheel speed sensor is built to meet or exceed OE requirements and testing.
- Tested and calibrated for accurate readings

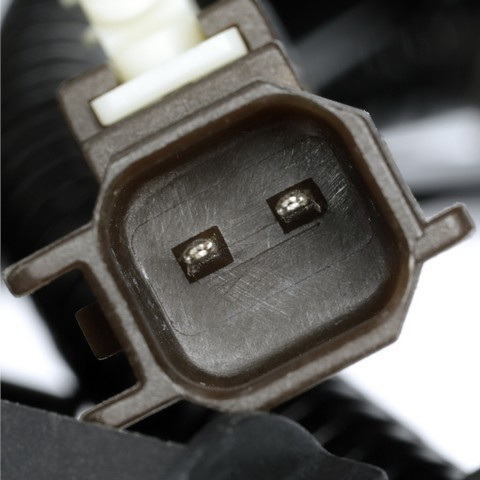

- Plated connectors to help prevent corrosion and short-circuit failure
- Sensor design helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
- Designed to maintain performance through drastic temperature changes
- Digital output designed for maximum signal to noise ratio
Quick facts
- Part: Delphi SS11709 ABS wheel speed sensor
- Fits: 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L
- Position: Rear right
- Condition: New
A failing wheel speed sensor can bring on an ABS or traction control warning light. Before you replace it, rule out damaged wiring, a loose connector and a dirty or damaged sensor wheel, since each of those can set off the same light.
Fits
This sensor fits the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L, which takes one at the rear right wheel. This listing is one sensor; the rear left is a separate part.
Specifications
Fit and size
- Position: rear right
- Quantity per application: 1
Build and materials
- Type: ABS wheel speed sensor
- Output: digital
- Connectors: plated
- Condition: new
In the box
One ABS wheel speed sensor and one instruction sheet.
Interchange: BL3Z 2C190-E
ABS2329 · 532697 · ALS2245 · 5S12350
This part cross-references / interchanges with the following part numbers:
ABS2329, 532697, BL3Z 2C190-E, ALS2245, 5S12350
Frequently Asked Questions
Is the Delphi SS11709 sensor right for a 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L?
Yes. Delphi SS11709 is the rear right ABS wheel speed sensor for the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L, and that truck takes one at that wheel.
What is included with the Delphi SS11709 rear right wheel speed sensor?
The box holds one ABS wheel speed sensor and one instruction sheet.
Does Delphi SS11709 have a digital output?
Yes. This ABS wheel speed sensor has a digital output designed for maximum signal to noise ratio, and it is designed to hold its performance through drastic temperature changes.
Why are the connectors plated on this rear right ABS wheel speed sensor?
The plating is there to help prevent corrosion and failure commonly caused by internal and cable short circuits.
Is BL3Z 2C190-E an interchange number for the Delphi SS11709 sensor?
Yes. BL3Z 2C190-E is on the interchange list for Delphi SS11709, the rear right ABS wheel speed sensor.
