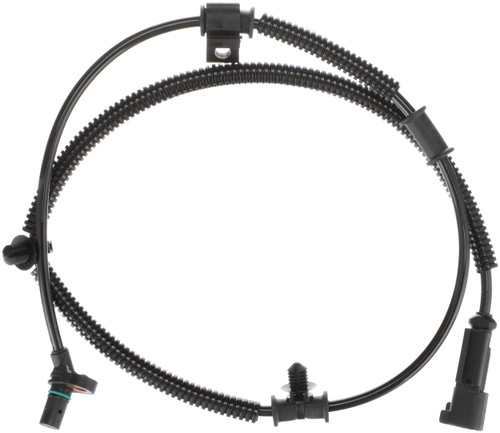

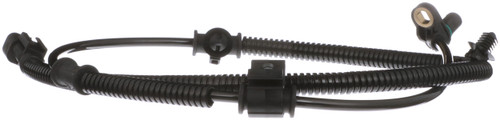

Delphi SS20854 front ABS wheel speed sensor for the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L and other vehicles reports the speed of a front wheel to the ABS. It is built to meet or exceed OE requirements and testing, and it is calibrated to OE standards for accurate readings.
- Plated connectors to help prevent corrosion and failure commonly caused by internal and cable short circuits
- Digital output designed for maximum signal to noise ratio
- Performance stays steady through drastic temperature changes
- Design helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
Quick facts
- Part: Delphi SS20854 ABS wheel speed sensor
- Fits: 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L and other vehicles
- Position: Front
A lit ABS warning light can mean a front wheel speed sensor has failed. A damaged sensor wheel, a worn wheel bearing or a faulty wiring connector can set the same light, so find the actual cause before you buy.
Fits
This ABS wheel speed sensor is a direct-fit replacement for the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L, the 2012-2014 Ford Expedition V8 5.4L and the 2015-2017 Expedition V6 3.5L, and the 2012-2014 Lincoln Navigator V8 5.4L and the 2015-2017 Navigator V6 3.5L.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Sold individually: 1 sensor per listing
Build and materials
- Connectors: plated
- Output: digital
In the box
One ABS wheel speed sensor and one instruction sheet. This listing is one front sensor, and these vehicles take two.
Interchange: BL3Z 2C204-B · CL3Z 2C204-B
ABS2334 · 532702 · ALS2250 · 5S12926
This part cross-references / interchanges with the following part numbers:
ABS2334, BL3Z 2C204-B, CL3Z 2C204-B, 532702, ALS2250, 5S12926
Frequently Asked Questions
Is Delphi SS20854 right for the 2011-2014 Ford F-150 V6 3.5L, 3.7L, V8 5.0L or 6.2L?
Yes. Delphi SS20854 is a front ABS wheel speed sensor listed for that truck, and the truck takes two.
Does this Delphi ABS wheel speed sensor come with an instruction sheet?
Yes. The package holds one ABS wheel speed sensor and one instruction sheet.
Are the connectors on this front ABS wheel speed sensor plated?
Yes. The connectors are plated to help prevent corrosion and failure commonly caused by internal and cable short circuits.
What can a worn front wheel speed sensor cause?
A failing sensor can show up as an ABS warning light on the dash or an ABS system that stops working normally. A shop can scan the ABS codes to see which wheel is reporting a fault.
Does Delphi SS20854 replace the BL3Z 2C204-B number?
Yes. BL3Z 2C204-B is on the interchange list for Delphi SS20854, along with CL3Z 2C204-B, ABS2334 and 532702.
