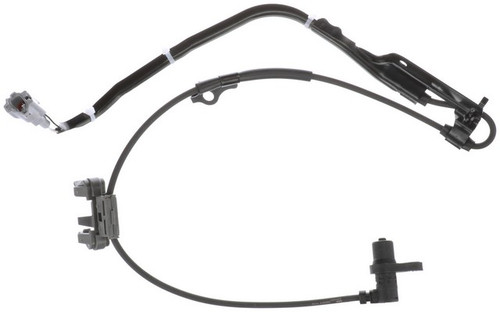

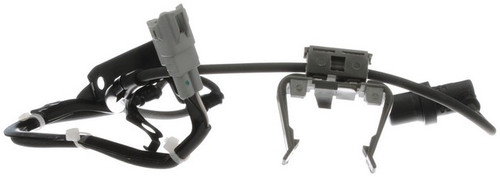

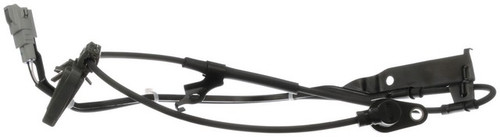

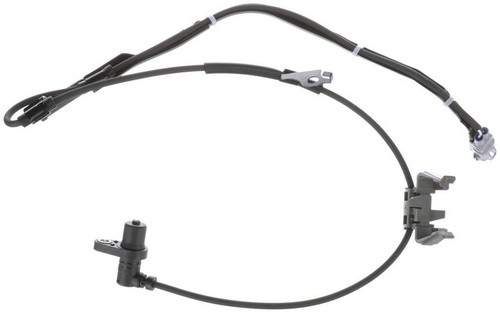

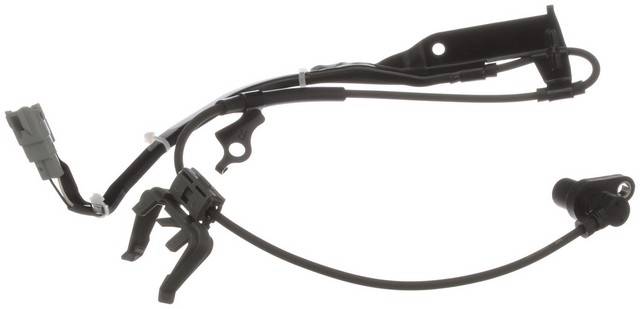

Delphi SS20912 front right ABS wheel speed sensor for the 1997-2001 Toyota Camry 4-cylinder 2.2L or V6 3.0L and other vehicles reports the speed of the front right wheel to the ABS. It is built to meet or exceed OE requirements and testing.
- Sensor tested and calibrated for accurate readings
- Plated connectors help prevent corrosion and failure commonly caused by internal and cable short circuits
- Design helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
- Maintains performance through drastic temperature changes
- Digital output designed for maximum signal to noise ratio
Quick facts
- Part: Delphi SS20912 ABS wheel speed sensor
- Fits: the 1997-2001 Toyota Camry 4-cylinder 2.2L or V6 3.0L and other vehicles
- Position: Front right
- Condition: New
A lit ABS warning light, or an ABS that acts up at one wheel, can mean a wheel speed sensor has stopped reporting. The light alone does not prove the sensor is at fault, since a damaged wiring connector at that wheel can set it too.
Fits
The vehicles it fits include the 1997-2001 Toyota Camry 4-cylinder 2.2L or V6 3.0L and the 1997-2004 Toyota Avalon V6 3.0L, as a direct-fit replacement. This listing is one sensor for the front right wheel; the 1997-2004 Toyota Avalon V6 3.0L takes one there, and the front left is a separate part. If your car isn't named here, look up your year, make and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Pieces in listing: 1
Build and materials
- Output: digital
- Connectors: plated
- Condition: New
In the box
One ABS wheel speed sensor and one instruction sheet.
Interchange: 89542-07010 · 89542-07020 · 89542-33030
ABS771 · 531322 · ALS661 · 5S6768
This part cross-references / interchanges with the following part numbers:
ABS771, 531322, ALS661, 89542-07010, 89542-07020, 89542-33030, 5S6768
Frequently Asked Questions
Will the Delphi SS20912 work on a 1997-2004 Toyota Avalon V6 3.0L?
Yes. Delphi SS20912 is a front right ABS wheel speed sensor listed for the 1997-2004 Toyota Avalon V6 3.0L. The front left side needs its own sensor.
What is included with this Delphi ABS wheel speed sensor?
The listing is one front right sensor with an instruction sheet. Delphi SS20912 is sold individually, so the front left sensor is ordered separately.
Are the connectors on this front right ABS sensor plated?
Yes. The connectors are plated to help prevent corrosion and failure commonly caused by internal and cable short circuits.
How can I tell if a front right wheel speed sensor is going bad?
An ABS warning light, or ABS that acts up at one wheel, can be signs. A shop can read the stored codes and test the circuit with scan equipment.
Does this sensor replace part number 89542-07010?
Yes. Number 89542-07010 is one of the numbers Delphi SS20912 replaces, along with 89542-07020 and 89542-33030.
