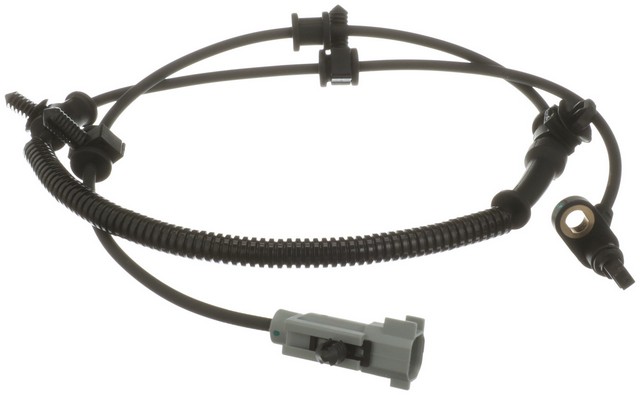

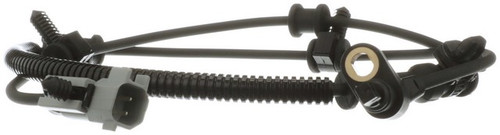

Delphi SS20940 front ABS wheel speed sensor for the 2005-2009 Jeep Grand Cherokee V8 4.7L, the 2005-2010 Grand Cherokee V8 5.7L, the 2006-2010 Grand Cherokee V6 3.7L or V8 6.1L, the 2007-2009 Grand Cherokee V6 3.0L and other vehicles reports wheel speed to the ABS. It is built to meet or exceed OE requirements and testing.
- Plated connectors to help prevent corrosion and failure from internal and cable short circuits
- Design that helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
- Steady sensor performance through drastic temperature changes
- Digital output designed for maximum signal to noise ratio
Quick facts
- Part: Delphi SS20940 ABS wheel speed sensor
- Fits: the 2005-2009 Jeep Grand Cherokee V8 4.7L, the 2005-2010 Grand Cherokee V8 5.7L, the 2006-2010 Grand Cherokee V6 3.7L or V8 6.1L, the 2007-2009 Grand Cherokee V6 3.0L and other vehicles
- Position: Front, front right, front left
A worn or failing front wheel speed sensor can show up as an ABS warning light or an ABS that stops working, but a damaged sensor wheel, wiring or the wheel bearing can set off those lights too. Before replacing the sensor, look it over with the engine off, checking the sensor and its connector for cracks, corrosion or damage, to find the cause.
Fits
This sensor is a direct-fit replacement for the 2006-2009 Jeep Commander V8 4.7L and the 2006-2010 Commander V6 3.7L or V8 5.7L, as well as the vehicles named in the first sentence.
Specifications
Fit and size
- Position: front, front right, front left
- Quantity per vehicle: 1 or 2, depending on model year
- Pieces per listing: 1
Build and materials
- Type: ABS wheel speed sensor
- Connectors: plated
- Signal output: digital
In the box
One ABS wheel speed sensor and one instruction sheet. This listing is one sensor. The vehicle takes one on the 2005-2008 Jeep Grand Cherokee V8 4.7L or V8 5.7L, the 2006-2008 Grand Cherokee V6 3.7L or V8 6.1L, the 2007-2008 Grand Cherokee V6 3.0L and the 2006-2008 Jeep Commander V6 3.7L, V8 4.7L or V8 5.7L. It takes two on the 2009 Grand Cherokee V8 4.7L or V6 3.0L, the 2009-2010 Grand Cherokee V8 5.7L, V6 3.7L or V8 6.1L, the 2009 Commander V8 4.7L and the 2009-2010 Commander V6 3.7L or V8 5.7L.
Interchange: 5604 4144AB · 5604 4144AD · 5604 4144AF
ABS2206 · 532573 · ALS2113 · 5S7092
This part cross-references / interchanges with the following part numbers:
ABS2206, 5604 4144AB, 5604 4144AD, 5604 4144AF, 532573, ALS2113, 5S7092
Frequently Asked Questions
Does the Delphi SS20940 fit a 2006-2010 Jeep Commander V6 3.7L?
Yes. Delphi SS20940 front ABS wheel speed sensor is listed for the 2006-2010 Jeep Commander V6 3.7L, and also for the 2006-2010 Commander V8 5.7L.
Does the Delphi SS20940 come with an instruction sheet?
Yes. Delphi SS20940 comes as one ABS wheel speed sensor with an instruction sheet. This listing is a single sensor.
Does this Delphi ABS wheel speed sensor have plated connectors?
Yes. The connectors are plated to help prevent corrosion and failure caused by internal and cable short circuits.
What can a failing front ABS wheel speed sensor look like?
An ABS warning light or an ABS that stops working can be signs. With the engine off, look at the sensor and its connector for damage or corrosion; a shop can test the signal.
Is 5604 4144AB an interchange number for the Delphi SS20940?
Yes. 5604 4144AB is one of the numbers Delphi SS20940 replaces, along with 5604 4144AD and 5604 4144AF.
