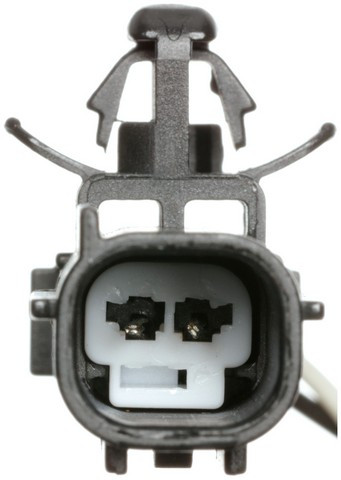

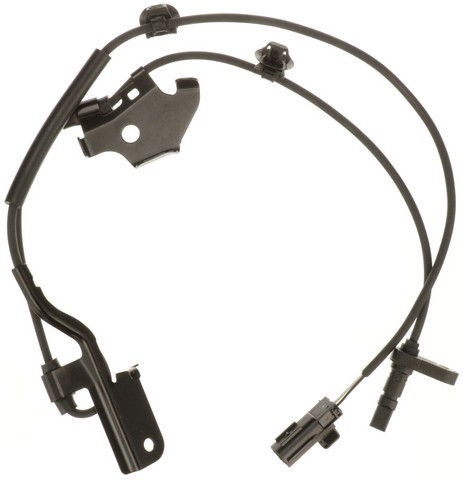

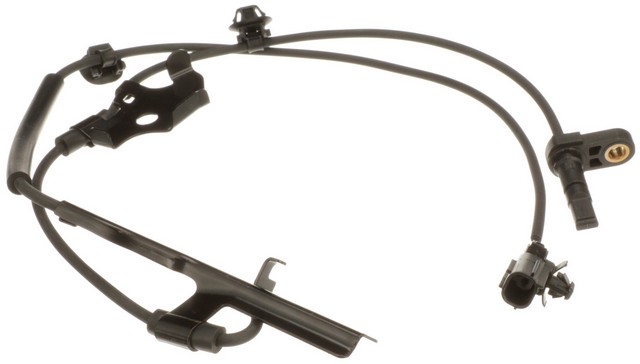

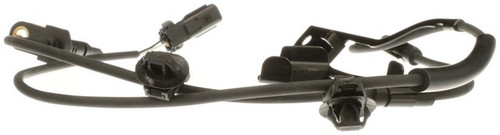

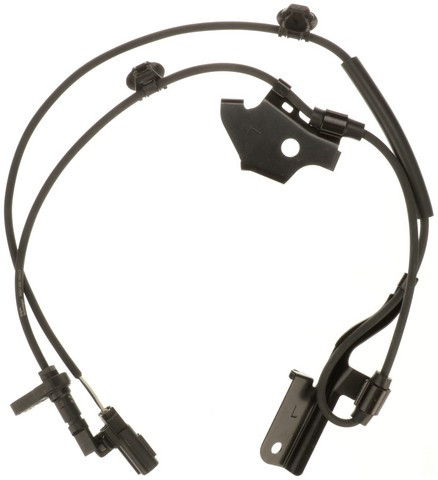

Delphi SS21366 front left ABS wheel speed sensor for the 2010-2015 Toyota Prius and other vehicles reads wheel speed for the ABS. It is tested and calibrated to OE standards and built to meet or exceed OE requirements and testing.
- Plated connectors help prevent corrosion and failure commonly caused by internal and cable short circuits
- Design that helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
- Sensor performance stays steady through drastic temperature changes
- Digital output designed for the maximum signal to noise ratio
Quick facts
- Part: Delphi SS21366 ABS wheel speed sensor
- Fits: 2010-2015 Toyota Prius and other vehicles
- Position: Front left
A lit ABS warning light can mean a wheel speed sensor is failing. Before you replace the sensor, rule out damaged wiring, a loose connector and a dirty or damaged sensor wheel.
Fits
It fits the 2010-2015 Toyota Prius, the 2011-2017 Lexus CT200h and the 2012-2015 Toyota Prius Plug-In. The front left position takes one sensor on each of them; this listing is that one sensor, and the front right side is a separate part.
Specifications
Fit and size
- Position: front left
- Quantity for this position: 1
Build and materials
- Connectors: plated
- Output: digital
In the box
One ABS wheel speed sensor and one instruction sheet.
Interchange: 89543-47030
ABS2406 · 532774 · ALS2322 · 5S12853
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS2406, 532774, ALS2322, 89543-47030, 5S12853
Frequently Asked Questions
Does the Delphi SS21366 fit the 2011-2017 Lexus CT200h?
Yes. Delphi SS21366 is a front left ABS wheel speed sensor that fits the 2011-2017 Lexus CT200h, and it also fits the 2010-2015 Toyota Prius.
Does the Delphi SS21366 come with an instruction sheet?
Yes. The package holds one ABS wheel speed sensor and one instruction sheet for Delphi SS21366.
Is this Delphi ABS wheel speed sensor built for big temperature swings?
Yes. It is designed to hold its performance through sharp temperature changes.
What can a failing front left wheel speed sensor look like?
A lit ABS warning light can be one sign. If it stays on, have the brakes checked promptly, since a shop can test the sensor.
Does Delphi SS21366 replace the number 89543-47030?
Yes. 89543-47030 is listed as an interchange number for Delphi SS21366, a front left ABS wheel speed sensor.
