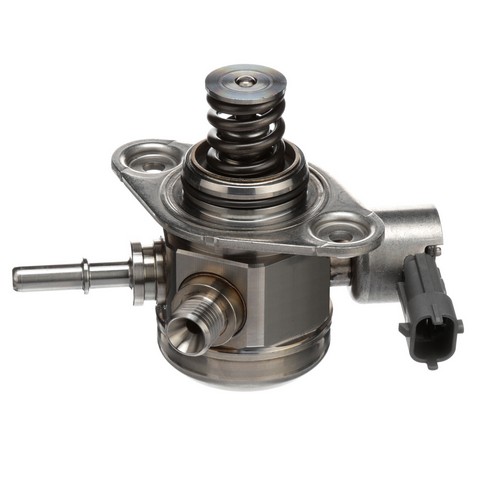

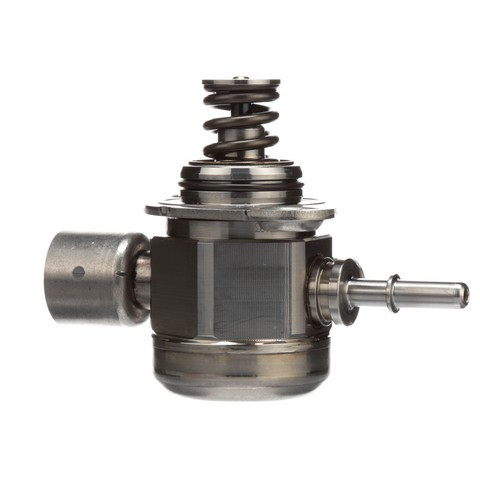

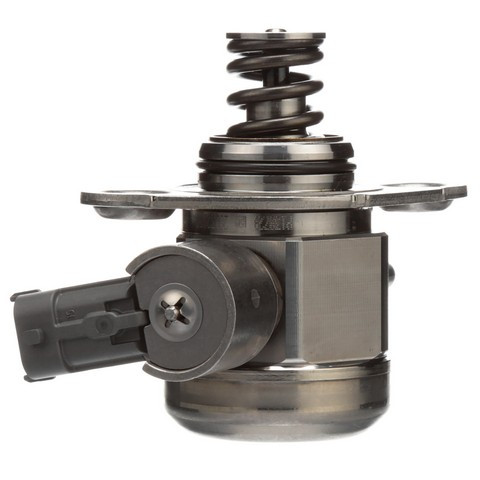

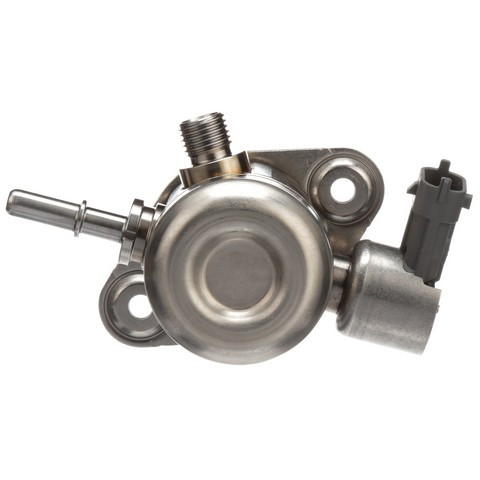

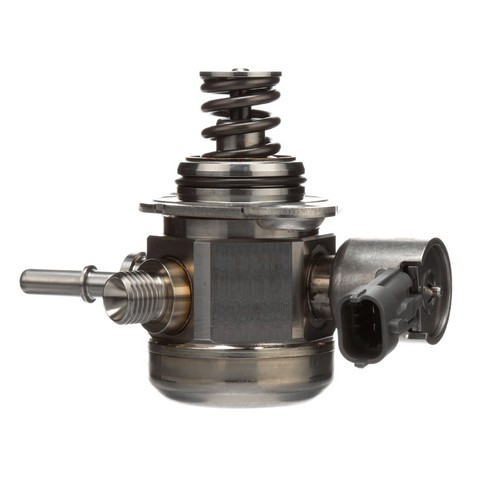

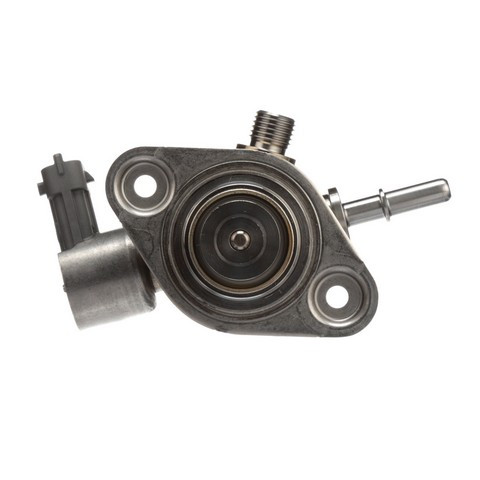

Delphi HM10002 direct injection high pressure fuel pump for the 2012-2016 Kia Soul 4-cylinder 1.6L and other vehicles builds the fuel pressure a gasoline direct injection system needs.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast starts
- Delivers fuel directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10002 direct injection high pressure fuel pump
- Fits: 2012-2016 Kia Soul 4-cylinder 1.6L and other vehicles
- Condition: New
A worn pump can show up as long cranking, hesitation under load or a loss of power. A fuel filter or an injector can also be behind those symptoms, so find the cause before you replace the pump.
Fits
The vehicles this Delphi direct injection high pressure fuel pump fits include the 2012-2016 Kia Soul 4-cylinder 1.6L, the 2014-2016 Kia Forte Koup 4-cylinder 1.6L and the 2014-2016 Kia Forte5 4-cylinder 1.6L. A 2012-2016 Kia Soul 4-cylinder 1.6L takes one pump, and the pump meets OE specifications. For a different car, open the "Vehicles it fits" section and look up your year, model and engine.
Specifications
- Fuel pressure: 2,000 to 2,800 PSI
- Drive: mechanical
- Quantity per vehicle: 1
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump and one instruction sheet.
Interchange: 35320-2B140
4032020 · CHM10002 · M73126 · M73127 · HP16422 · FI1549 · GDP403
This part cross-references / interchanges with the following part numbers:
4032020, CHM10002, M73126, M73127, 35320-2B140, HP16422, FI1549, GDP403
Frequently Asked Questions
Does the Delphi HM10002 fit the 2012-2016 Kia Soul 4-cylinder 1.6L?
Yes. Delphi HM10002 fits the 2012-2016 Kia Soul 4-cylinder 1.6L, and it also fits the 2014-2016 Kia Forte Koup 4-cylinder 1.6L.
Does the HM10002 pump come with an instruction sheet?
Yes. The package for Delphi HM10002 holds the pump and one instruction sheet.
What fuel pressure can the Delphi HM10002 deliver?
Delphi HM10002 can deliver fuel at pressures from 2,000 to 2,800 PSI. It is mechanically driven, so it builds rail pressure quickly for fast starts.
Could long cranking mean this high pressure fuel pump is weak?
It can. Long cranking, hesitation or a power loss are signs a pump like this may be worn. Fuel pressure testing involves the fuel system, so a shop can run that test.
Does this pump replace the number 35320-2B140?
Yes. 35320-2B140 is one of the numbers this pump replaces; the other cross-reference numbers are on the Interchange line.
