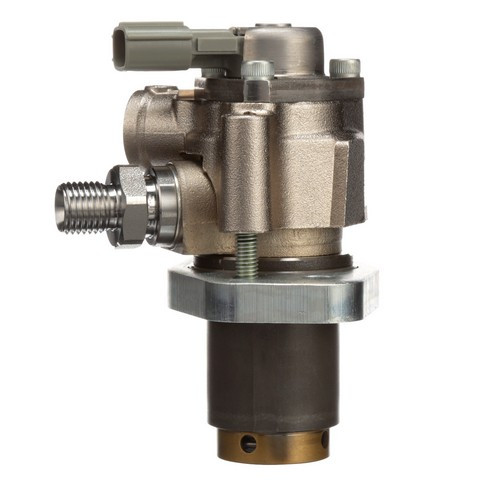

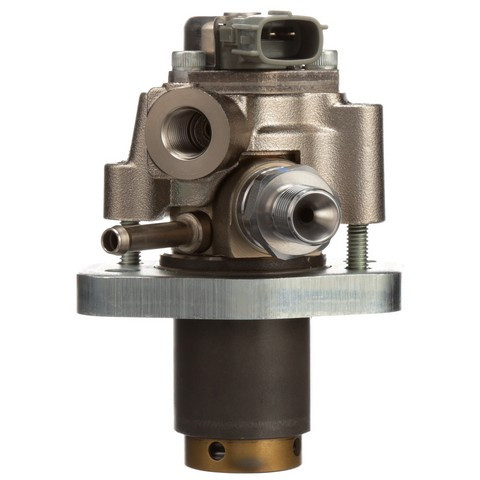

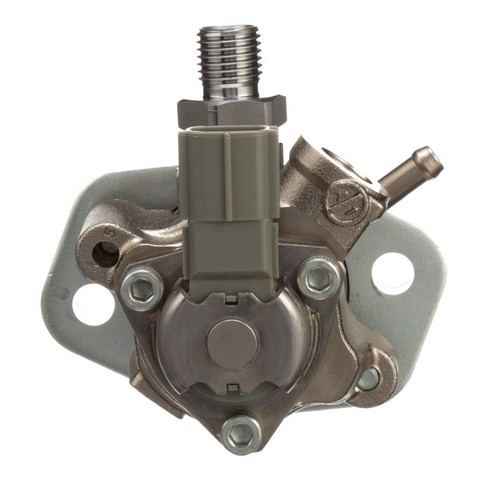

Delphi HM10014 direct injection high pressure fuel pump for the 2015-2018 Lexus RC350 V6 3.5L and other vehicles supplies fuel to the engine at high pressure. It is a gasoline direct injection (GDi) pump that meets OE specifications.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10014 direct injection high pressure fuel pump
- Fits: 2015-2018 Lexus RC350 V6 3.5L and other vehicles
- Condition: New
A long crank, hard starting or a drop in power can mean the pump is no longer building enough pressure. Before you replace it, rule out a weak in-tank fuel supply and any fault in the fuel pressure sensor or its wiring, since those can also make the engine slow to start.
Fits
The 2015-2018 Lexus RC350 V6 3.5L, 2016-2018 Lexus IS300 V6 3.5L and 2016-2018 Lexus RC300 V6 3.5L are among the vehicles this pump fits, and each takes one. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Fuel pressure range: 2,000 to 2,800 PSI
Build and materials
- Type: gasoline direct injection (GDi) high pressure fuel pump
- Drive: mechanical
- Condition: New
In the box

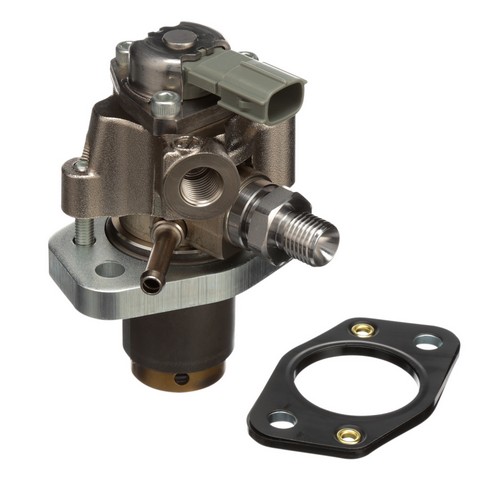

One direct injection high pressure fuel pump, one gasket and one instruction sheet.
Interchange: 23100-39615 · 23100-39617 · 23100-39618 · 23100-39625 · 23100-39645 · 23100-39646
CHM10014 · HP16421 · FI1518 · GDP511
This part cross-references / interchanges with the following part numbers:
CHM10014, HP16421, FI1518, GDP511, 23100-39615, 23100-39617, 23100-39618, 23100-39625, 23100-39645, 23100-39646
Frequently Asked Questions
Does the Delphi HM10014 fuel pump fit the 2016-2018 Lexus IS300 V6 3.5L?
Yes. Delphi HM10014 fits the 2016-2018 Lexus IS300 V6 3.5L and the 2016-2018 Lexus RC300 V6 3.5L, and each takes one pump.
Does the HM10014 fuel pump come with a gasket?
Yes. Delphi HM10014 comes with the pump, a gasket and an instruction sheet.
How much pressure can this Delphi direct injection high pressure fuel pump deliver?
It can deliver fuel at pressures that range from 2,000 to 2,800 PSI. This high pressure fuel pump is mechanically driven and built for fast rail pressure build-up.
What can a weak direct injection fuel pump do to starting?
A long crank, hard starting or a loss of power can go with a pump that builds rail pressure slowly, though other faults can also bring them on. A shop can test the fuel pressure.
Is Delphi HM10014 the same pump as 23100-39615?
Yes. 23100-39615 is one of the numbers Delphi HM10014 replaces, along with 23100-39617 and 23100-39618.
