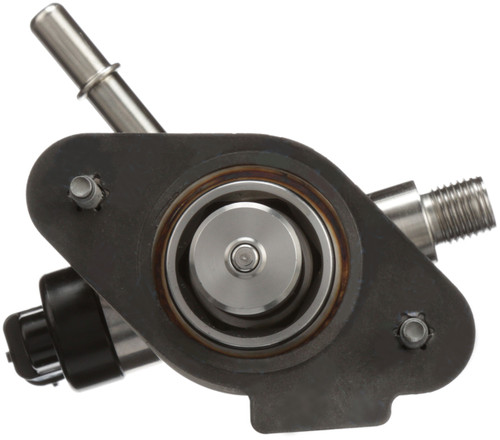

Delphi HM10175 direct injection high pressure fuel pump for the 2010-2017 Chevrolet Equinox 4-cylinder 2.4L and other vehicles sends fuel at high pressure to a gasoline direct injection system. The pump builds the rail pressure that gasoline direct injection (GDi) needs.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast start times
- Fuel is delivered directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10175 direct injection high pressure fuel pump
- Fits: 2010-2017 Chevrolet Equinox 4-cylinder 2.4L and other vehicles
- Condition: New
Long cranking, hesitation or a lit check engine light can mean this pump is worn, though the fuel injectors or the fuel pressure sensor can be behind them too, so find the cause before replacing it.
Fits
The vehicles it fits include the 2013-2014 Chevrolet Malibu 4-cylinder 2.4L and the 2014 Chevrolet Impala 4-cylinder 2.4L. It is a direct-fit replacement that meets OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Fuel pressure range: 2,000 to 2,800 PSI
Build and materials
- Drive: mechanical
- Condition: New
In the box
One direct injection high pressure fuel pump and one instruction sheet. This listing holds one pump, and each vehicle it fits takes one.
Interchange: EP1028 · M73109 · 12608371 · 12633115 · 12633423 · 12639694 · 12641847 · HP16403 · FI1502 · GDP103
This part cross-references / interchanges with the following part numbers:
EP1028, M73109, 12608371, 12633115, 12633423, 12639694, 12641847, HP16403, FI1502, GDP103
Frequently Asked Questions
Does the Delphi HM10175 fit the 2010-2017 Chevrolet Equinox 4-cylinder 2.4L?
Yes. Delphi HM10175 fits the 2010-2017 Chevrolet Equinox 4-cylinder 2.4L as well as other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section.
Does the Delphi HM10175 come with an instruction sheet?
Yes. The package holds one direct injection high pressure fuel pump and one instruction sheet.
What fuel pressure can the Delphi HM10175 pump deliver?
Delphi HM10175 can deliver fuel at pressures that range from 2,000 to 2,800 PSI. It is a mechanically driven, high-flow pump that builds rail pressure quickly for fast start times.
How can I tell if a high pressure fuel pump is wearing out?
Long cranking, hesitation or a lit check engine light can mean a worn pump, though the injectors can also be behind them. A shop can test the fuel pressure.
Does Delphi HM10175 replace GDP103?
Yes. GDP103 is one of the numbers this pump replaces, along with EP1028 and 12608371.
