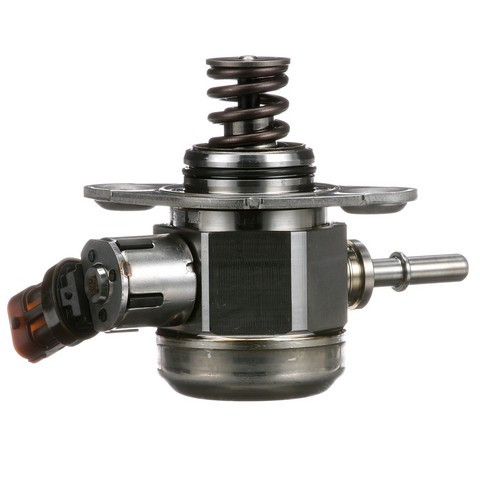

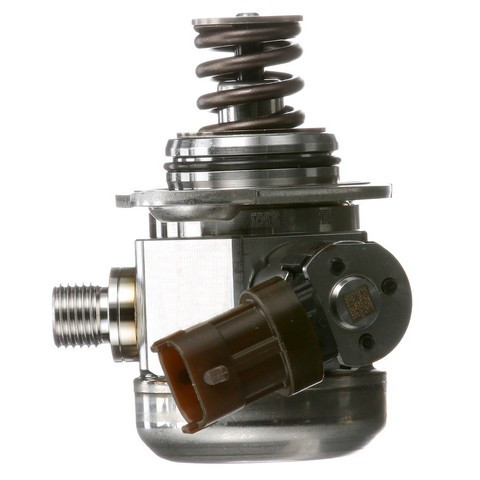

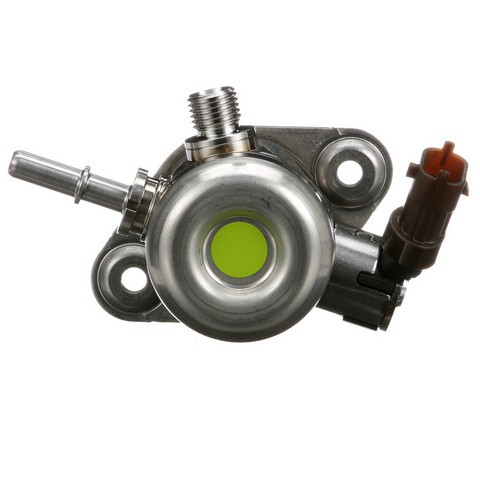

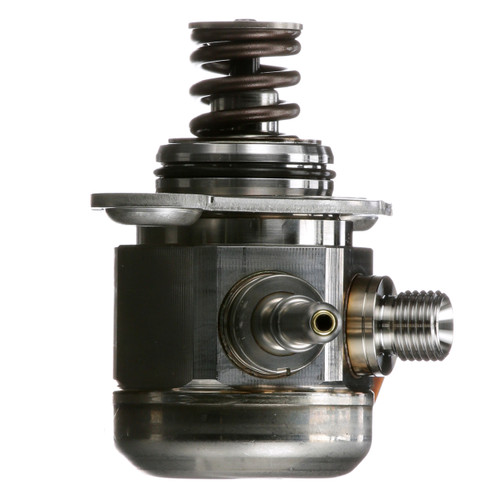

Delphi HM10054 direct injection high pressure fuel pump for the 2015-2017 Hyundai Sonata 1.6L and other vehicles is a mechanically driven pump that sends fuel at high pressure to the rail of a gasoline direct injection (GDi) engine.
- Delivers fuel at pressures that can range from 2,000 to 2,800 PSI
- High fuel flow lets rail pressure build up quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
- Uses the latest generation of OE technology for GDi, from a Tier 1 supplier of GDi systems to global OEMs
- Meets OE specifications
Long cranking, rough running or a drop in power can mean the pump is worn, though a weak low-pressure fuel pump or a faulty injector can produce similar symptoms, so find the cause first.
It also fits the 2016-2018 Kia Optima 1.6L and the 2016-2018 Hyundai Tucson 1.6L, among many other vehicles. The 2016-2018 Kia Optima 1.6L takes one pump. If your car isn't named here, look up its year and engine on the Buyer's Guide tab.
Specifications
Fit and size
- Engine: L4-1.6L
- Quantity per vehicle: 1
Build and materials
- Drive: mechanical
- Fuel pressure: 2,000 to 2,800 PSI
- Country of origin: China
In the box
Direct injection high pressure fuel pump and an instruction sheet.
Installation notes
- The instruction sheet that comes with the pump gives the installation steps.
- Delphi runs a GDi technician support hotline staffed by ASE certified technicians at 1-877-463-3574.
Interchange: 35320-2B220
CHM10054 · FI1615 · GDP404
This part cross-references / interchanges with the following part numbers:
CHM10054, 35320-2B220, FI1615, GDP404
