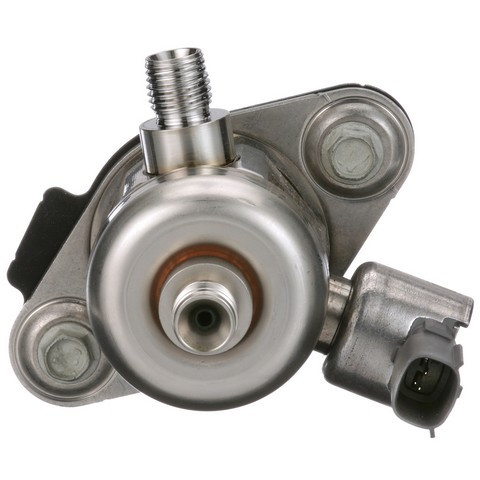

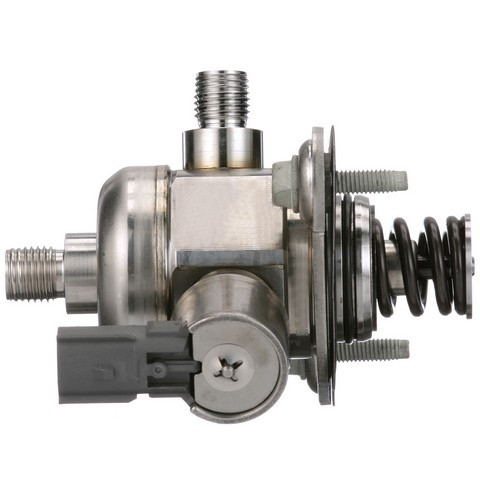

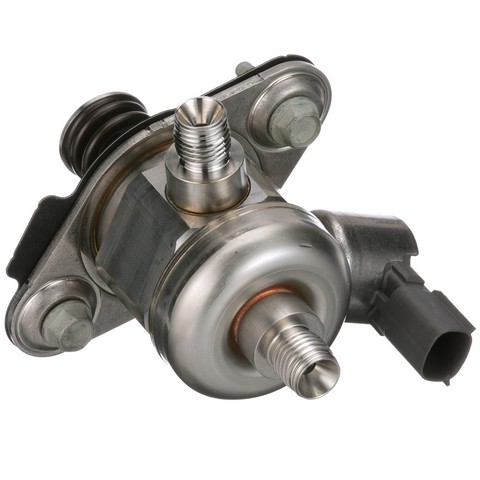

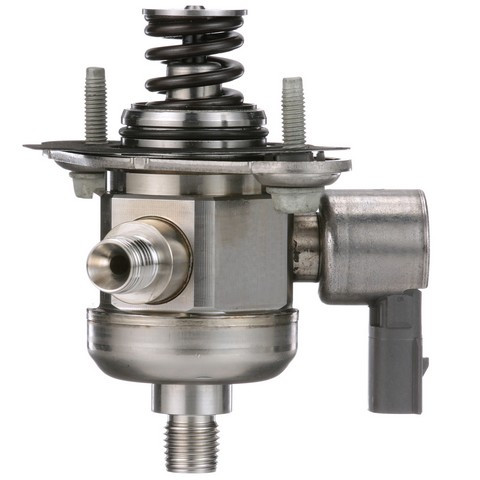

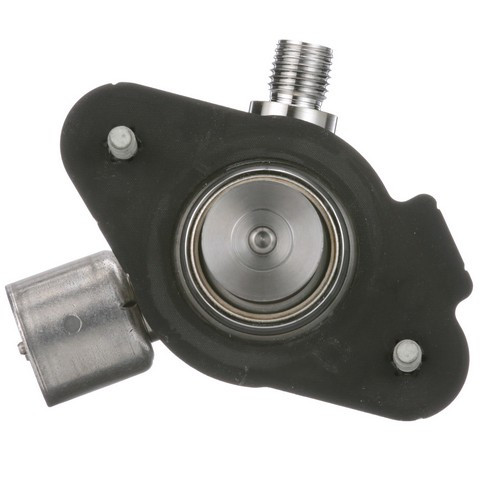

Delphi HM10030 direct injection high pressure fuel pump for the 2013-2015 Cadillac ATS 4-cylinder 2.0L or 2.5L and other vehicles sends fuel at high pressure to the rail of a gasoline direct injection engine. The pump meets OE specifications.
- Delivers fuel at pressures that range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10030 direct injection high pressure fuel pump
- Fits: 2013-2015 Cadillac ATS 4-cylinder 2.0L or 2.5L and other vehicles
- Condition: New
Hard starting, rough running or a loss of power can be signs of a worn pump. A weak fuel injector, a tired low-pressure fuel pump or a clogged fuel filter can be behind the same signs, so find the cause before buying.
Fits
It fits the 2013-2015 Cadillac ATS 4-cylinder 2.0L or 2.5L and the 2014-2015 Cadillac CTS 4-cylinder 2.0L, with one pump per vehicle.
Specifications
- Quantity per vehicle: 1
- Fuel pressure range: 2,000 to 2,800 PSI
- Drive: mechanical
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump, one gasket and one instruction sheet.
Interchange: HPM1007 · 4032017 · CHM10030 · 12651175 · 12658486 · HP21009 · FI1563 · GDP107
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
HPM1007, 4032017, CHM10030, 12651175, 12658486, HP21009, FI1563, GDP107
Frequently Asked Questions
Does the Delphi HM10030 fit the 2014-2015 Cadillac CTS 4-cylinder 2.0L?
Yes. Delphi HM10030 is listed for the 2014-2015 Cadillac CTS 4-cylinder 2.0L, and also for the 2013-2015 Cadillac ATS 4-cylinder 2.0L or 2.5L.
Does this direct injection high pressure fuel pump come with a gasket?
Yes. Delphi HM10030 comes with one gasket and one instruction sheet along with the pump.
What fuel pressure range does this high pressure fuel pump deliver?
This pump is capable of delivering fuel at pressures that range from 2,000 to 2,800 PSI. It is mechanically driven and builds rail pressure quickly for fast start times.
Can a weak high pressure fuel pump cause hard starting?
Yes, it can be one cause, since the pump builds rail pressure for starting. Checking fuel pressure on a direct injection system is shop work.
Does the Delphi HM10030 interchange with 12658486?
Yes. 12658486 is listed as an interchange number for this pump, along with HPM1007 and 12651175.
