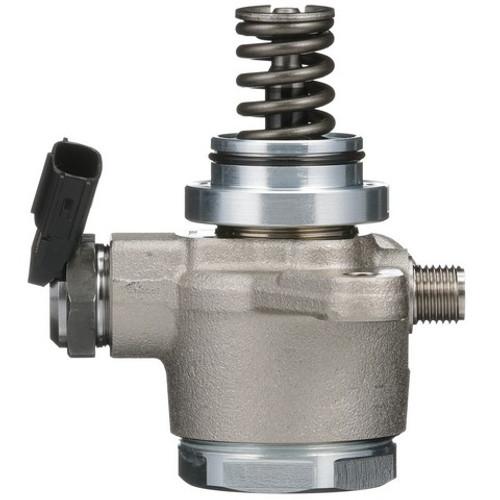

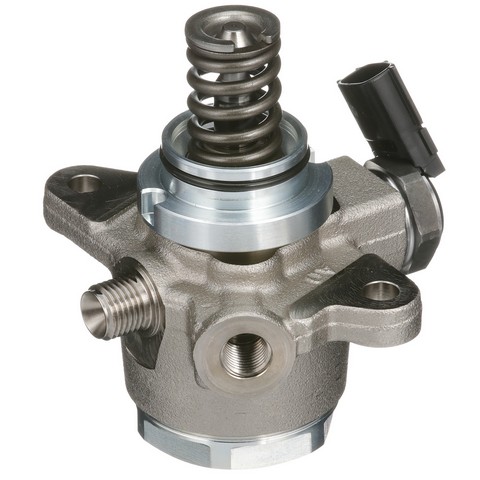

Delphi HM10097 direct injection high pressure fuel pump for the 2016-2024 Nissan Titan XD V8 5.6L and other vehicles feeds fuel at high pressure to the rail of a gasoline direct injection (GDi) system.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high fuel flow pump that builds rail pressure quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10097 direct injection high pressure fuel pump
- Fits: the 2016-2024 Nissan Titan XD V8 5.6L and other vehicles
- Condition: New
Hard starting, hesitation under load or a lit check engine light can point to a worn high pressure pump. A weak lift pump, a clogged fuel filter or a faulty injector can be behind the same signs, so find the cause before buying. If the high pressure pump is the cause, this one replaces it.
Fits
The vehicles it fits include the 2016-2024 Nissan Titan XD V8 5.6L, the 2017-2024 Nissan Armada V8 5.6L and the 2017-2024 Nissan Titan V8 5.6L, with one pump per vehicle. It meets OE specifications. To check your exact model and engine, open the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-5.6L
Build and materials
- Type: mechanically driven, direct injection
- Fuel pressure range: 2,000 to 2,800 PSI
- Condition: New
In the box
One direct injection high pressure fuel pump and one instruction sheet.
Interchange: 16630-1LA0A · 16630-1LA0B · 16630-1LA9A
CHM10097 · 166301LA1A · 2503091 · HFS034A301 · HP21516 · FI1545 · GDP715
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CHM10097, 16630-1LA0A, 16630-1LA0B, 166301LA1A, 16630-1LA9A, 2503091, HFS034A301, HP21516, FI1545, GDP715
Frequently Asked Questions
Does the Delphi HM10097 fit the 2017-2024 Nissan Armada V8 5.6L?
Yes. Delphi HM10097 is listed for the 2017-2024 Nissan Armada V8 5.6L, which takes one pump. For other models, open the "Vehicles it fits" section and check your engine.
What comes with the Delphi HM10097 high pressure fuel pump?
The package holds one direct injection high pressure fuel pump and one instruction sheet.
Is the Delphi direct injection high pressure fuel pump mechanically driven?
Yes. Delphi HM10097 is a mechanically driven, high fuel flow pump that can deliver fuel at 2,000 to 2,800 PSI and builds rail pressure quickly for fast starts.
How can I tell if a GDi high pressure fuel pump is wearing out?
Long cranking, hard starting or hesitation under load can be signs of a weak pump. Rail pressure needs a shop's gauge, so have it tested rather than checking the fuel system yourself.
Does this pump interchange with 16630-1LA0A?
Yes. 16630-1LA0A is one of the numbers this Delphi pump replaces. The rest of the cross-reference numbers are on the Interchange line.
