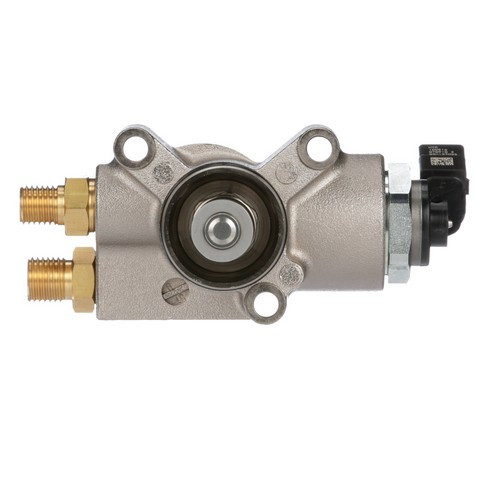

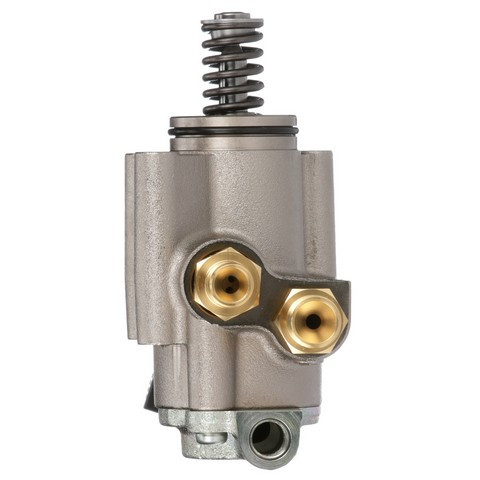

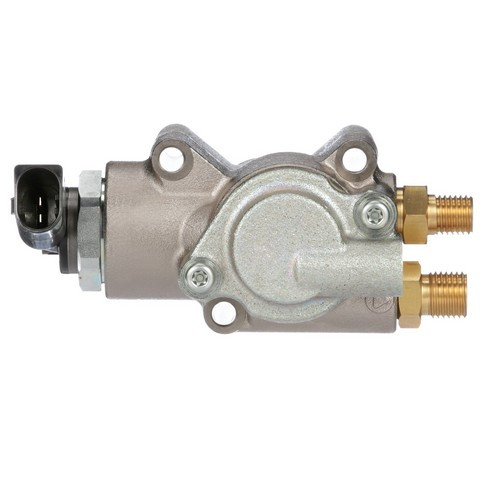

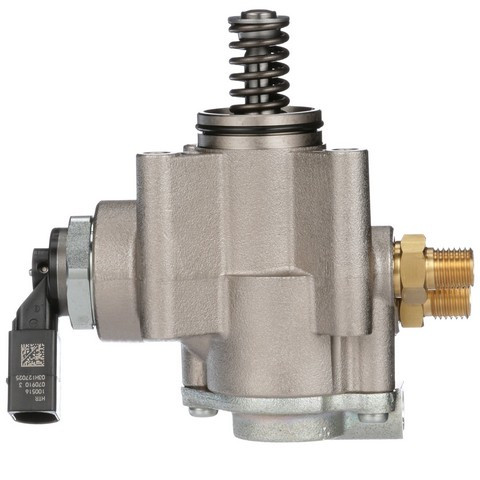

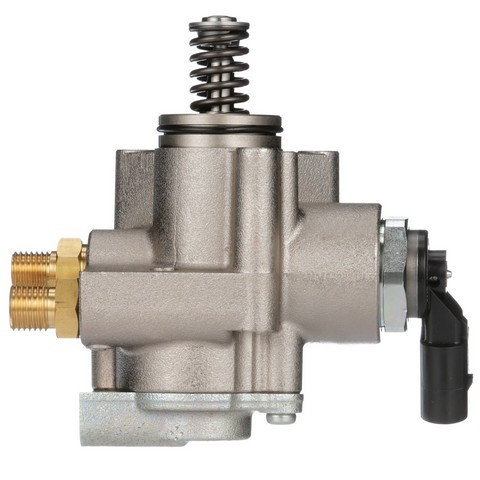

Delphi HM10047 direct injection high pressure fuel pump for the 2006-2007 Volkswagen Passat V6 3.6L pushes fuel at high pressure into the engine. It is part of a gasoline direct injection (GDi) fuel system.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven pump
- High fuel flow lets rail pressure build up quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10047 direct injection high pressure fuel pump
- Fits: 2006-2007 Volkswagen Passat V6 3.6L
A worn pump can show up as long cranking, hesitation under load or a check engine light. These signs alone do not prove the pump is the problem, since a weak low-pressure fuel supply can cause them too. The engine takes one pump.
Fits
This pump fits the 2006-2007 Volkswagen Passat V6 3.6L and meets OE specifications.
Specifications
Fit and size
- Engine: V6-3.6L
- Quantity per vehicle: 1
- Fuel pressure range: 2,000 to 2,800 PSI
Build and materials
- Type: gasoline direct injection (GDi) high pressure fuel pump
- Drive: mechanically driven
In the box
One direct injection high pressure fuel pump and one instruction sheet.
Interchange: 03H 127 025
CHM10047 · 2503073 · HFS85303 · HPP0012 · FI1536 · GDP606
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
03H 127 025, CHM10047, 2503073, HFS85303, HPP0012, FI1536, GDP606
Frequently Asked Questions
Is the Delphi HM10047 pump right for a 2006-2007 Volkswagen Passat V6 3.6L?
Yes. Delphi HM10047 is listed for the 2006-2007 Volkswagen Passat V6 3.6L, and that engine takes one pump.
Does this Delphi fuel pump come with anything besides the pump?
Delphi HM10047 comes with one direct injection high pressure fuel pump and one instruction sheet.
What pressure does the Delphi direct injection high pressure fuel pump deliver?
This pump can deliver fuel at high pressures ranging from 2,000 to 2,800 PSI.
How does this mechanically driven pump affect engine start times?
Its high fuel flow lets rail pressure build up quickly, which gives fast start times.
Is Delphi HM10047 interchangeable with the 03H 127 025 pump?
Yes. 03H 127 025 is listed as an interchange number for Delphi HM10047.
