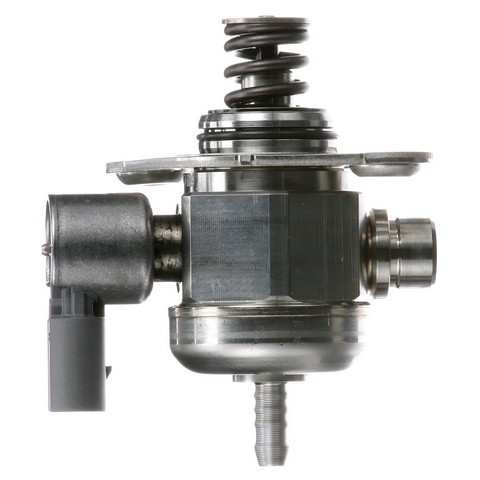

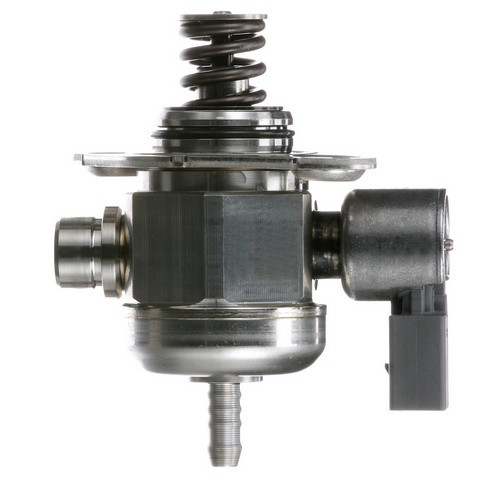

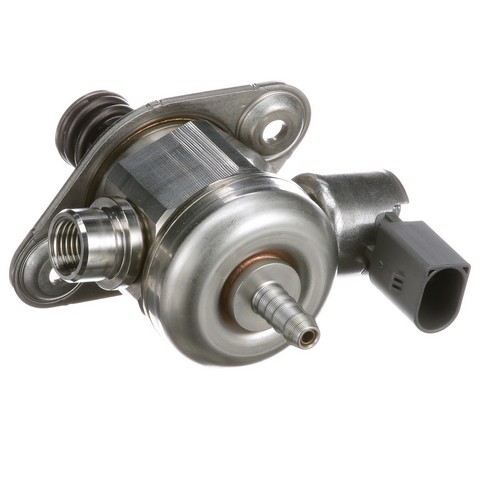

Delphi HM10049 direct injection high pressure fuel pump for the 2014-2018 Volkswagen Jetta 4-cylinder 1.8L or 2.0L and other vehicles feeds high-pressure fuel to the rail of a gasoline direct injection engine. This mechanically driven pump builds the pressure a GDi system needs to spray fuel straight into the combustion chamber.
- Delivers fuel at pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow design builds rail pressure quickly for fast starts
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10049 direct injection high pressure fuel pump
- Fits: the 2014-2018 Volkswagen Jetta 4-cylinder 1.8L or 2.0L and other vehicles
- Condition: New
Hard starting, a rough run or a loss of power can mean the pump is not building enough rail pressure, but other parts produce those signs too, so find the cause before replacing it. With the engine off and cool, look over the pump and its lines for wet spots or a fuel smell. Pressure testing is a job for a shop.
Fits
Volkswagen and Audi models across a wide range are listed, led by the 2014-2017 Volkswagen Passat 4-cylinder 1.8L and the 2015-2017 Volkswagen Golf 4-cylinder 1.8L. The pump meets OE specifications. If your car is not named here, search for it in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Pressure range: 2,000 to 2,800 PSI
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump and one instruction sheet. This listing holds one pump, and each vehicle takes one.
Interchange: 06A 127 026 A · 06A 127 026 B · 06A 127 026 C · 06A 127 026 H
CHM10049 · HP21526 · FI1527 · GDP603
This part cross-references / interchanges with the following part numbers:
CHM10049, HP21526, FI1527, GDP603, 06A 127 026 A, 06A 127 026 B, 06A 127 026 C, 06A 127 026 H
Frequently Asked Questions
Does the Delphi HM10049 direct injection high pressure fuel pump fit a 2014-2018 Volkswagen Jetta 4-cylinder 2.0L?
Yes, Delphi HM10049 is listed for the 2014-2018 Volkswagen Jetta with either the 4-cylinder 1.8L or the 2.0L engine. For other cars, search the "Vehicles it fits" section.
Does the HM10049 direct injection high pressure fuel pump come with an instruction sheet?
Yes, Delphi HM10049 comes with an instruction sheet. This listing holds one direct injection high pressure fuel pump, and each vehicle takes one.
How much pressure can the Delphi HM10049 direct injection high pressure fuel pump deliver?
This pump can deliver fuel at pressures ranging from 2,000 to 2,800 PSI. It is mechanically driven and built for high fuel flow.
Can a weak direct injection high pressure fuel pump cause a long crank before the engine starts?
It can, because the pump builds the rail pressure needed for starting. Other parts can also cause hard starting, so have a shop test fuel pressure to find the cause.
Does the HM10049 direct injection high pressure fuel pump replace number 06A 127 026 H?
Yes, 06A 127 026 H is one of the numbers Delphi HM10049 replaces. The other cross-reference numbers are on the Interchange line.
