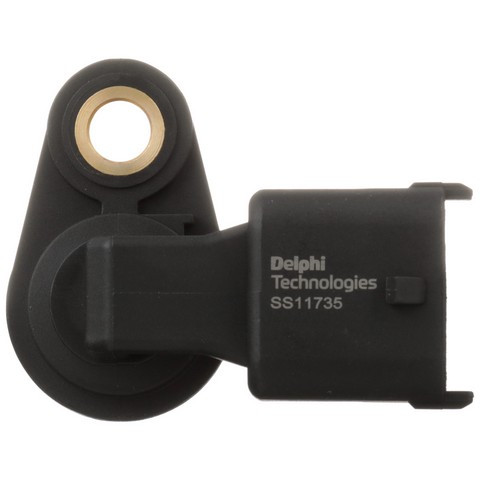

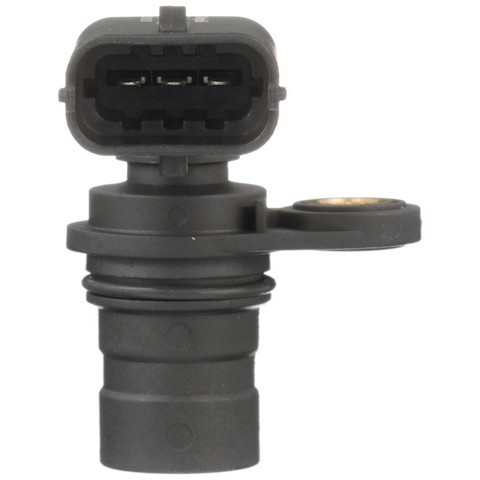

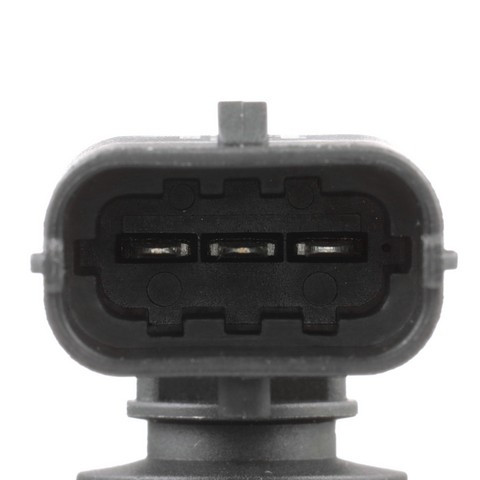

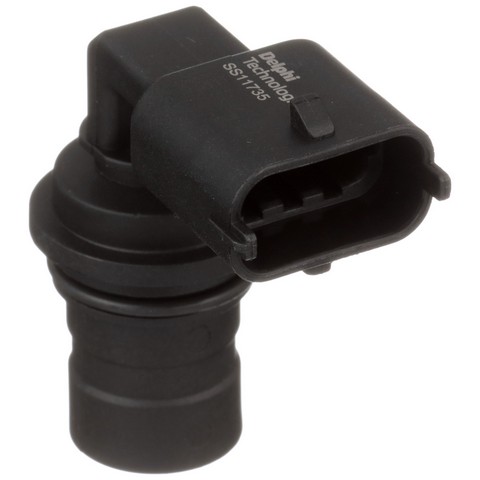

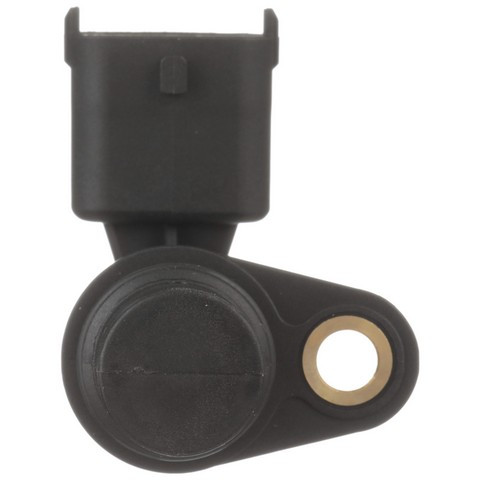

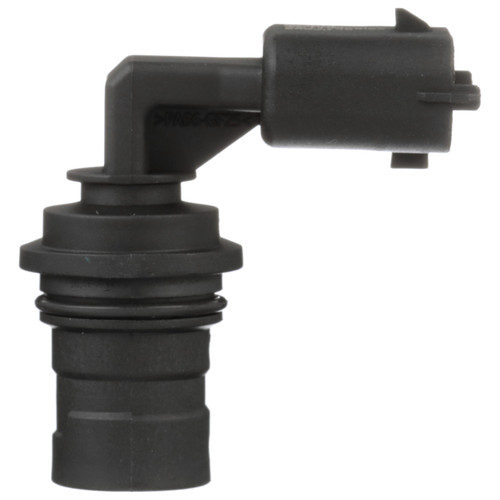

Camshaft Position Sensor for 2004-2006 Cadillac SRX & More - Delphi SS11735

Delphi SS11735 camshaft position sensor for the 2004-2006 Cadillac SRX V8 4.6L and other vehicles tracks camshaft position and sends the engine computer a digital signal.

• Tested and calibrated for accurate readings
• Digital output designed for maximum signal-to-noise ratio
• Every part used in making the sensor is Delphi validated
• Sensor is not impacted by temperature changes

Quick facts

• Part: Delphi SS11735 camshaft position sensor
• Also called: cam sensor
• Fits: 2004-2006 Cadillac SRX V8 4.6L and other vehicles
• Condition: New

A failing camshaft position sensor, sometimes called a cam sensor, can mean hard starting, stalling or a lit check engine light. Those signs alone do not prove the sensor is at fault, because a damaged wiring connector could produce them as well.

Fits

This listing is one sensor. The 2004-2006 Cadillac SRX V8 4.6L and the 2004-2006 Cadillac XLR V8 4.6L take four each, and the 2005-2006 Cadillac STS V8 4.6L takes one; it is a direct-fit replacement for all of them.

Specifications

In the box

One camshaft position sensor and one instruction sheet.

Interchange: CSS1609 · CSS1109 · 12569160 · PC609
