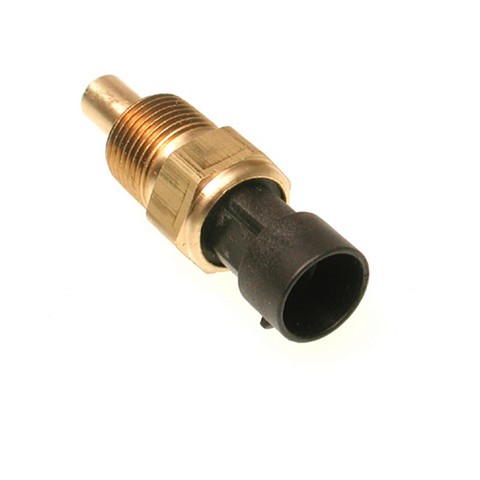

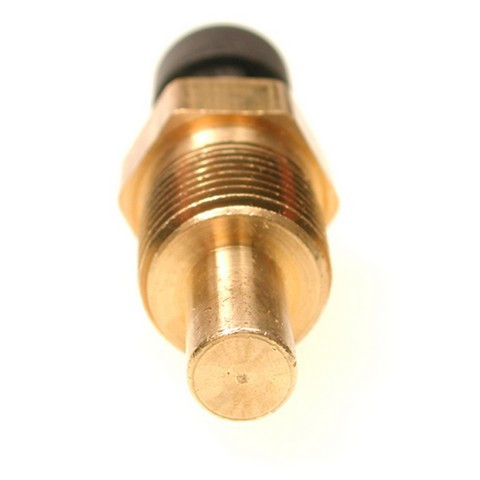

Delphi Engine Coolant Temperature Sensor P/N:TS10032

Keep your engine's temperature readings on point with the Delphi Engine Coolant Temperature Sensor TS10032. This threaded sensor measures engine coolant temperature and reports it to the powertrain control module, which uses that signal to manage fuel delivery, cooling, and idle. It drops in as a direct-fit replacement across a wide range of GM applications, including the 1994-2002 Buick Century, 1996-2002 Buick Regal, 1994-1996 Chevrolet Beretta, 1994-1997 Chevrolet S10, 1995-1999 Chevrolet Camaro, 1996-2001 Chevrolet Lumina, 1994-1997 GMC Sonoma, 1996-1997 Isuzu Hombre, 1995-1999 Oldsmobile 88, and 1996-2002 Pontiac Grand Prix (L4-2.0L, L4-2.2L, V6-3.1L, V6-3.4L, V6-3.8L). See the Buyer's Guide tab for the full list of 41 applications.

• One-piece design: Delphi's automated production eliminates internal connectors and failure points.
• Electrically insulated: shielded to eliminate interference from other components in the vehicle.
• Noise-resistant: impervious to electrical noise for accurate readings and optimal performance.
• OE heritage: engineered from Delphi's OE experience for standard-replacement quality.

Specs: Threaded NPT mounting with a 17 mm threaded end diameter and a 19 mm hex, black housing, one round female connector with three male pin terminals, and one seal included. Mounting hardware, wiring harness, and thread sealer are not included. Country of origin: China.

Signs the coolant temperature sensor may need replacing include an erratic or inaccurate temperature gauge, hard cold starts, or a stored temperature-circuit trouble code. Diagnose the cause before replacing, since these symptoms can have other sources.

Interchange: 213815 · 9J8 · 1T1043 · WT3024 · WT3024P · 158-0743 · TS4020 · CS43 · 10096181 · 8-10096-181-0 · 140-209 · TS4020SB · DR134TA · TX66 · TX66T · 211-1039 · TU178. Manufacturer part number TS10032.
