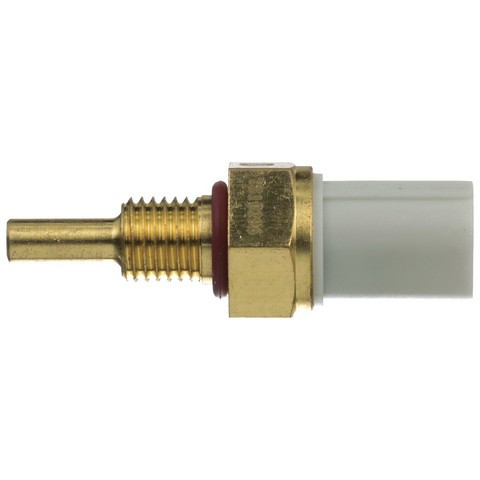

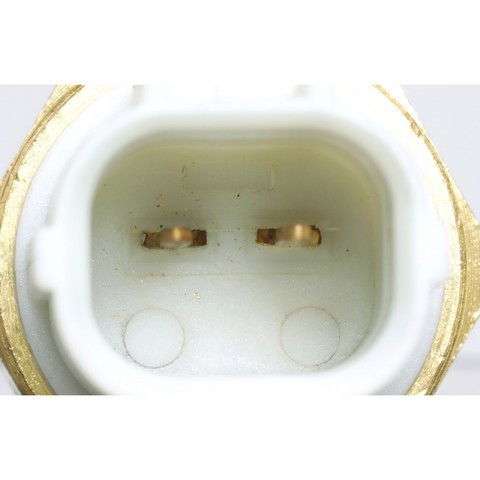

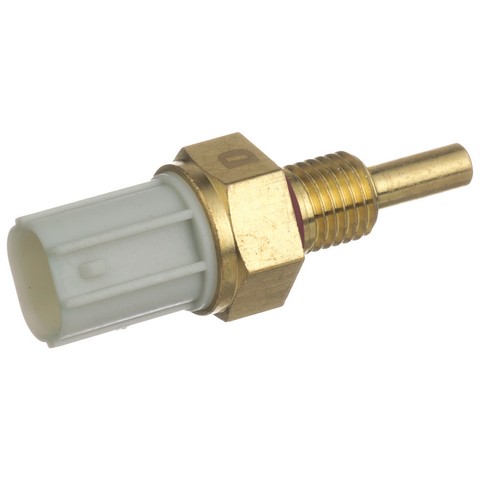

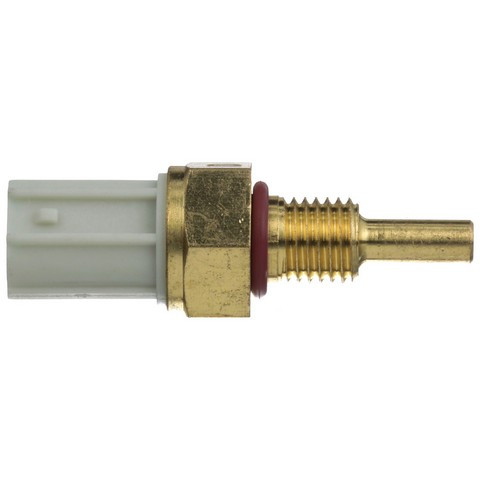

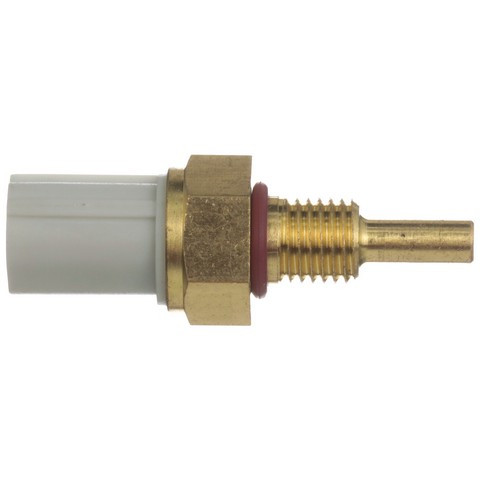

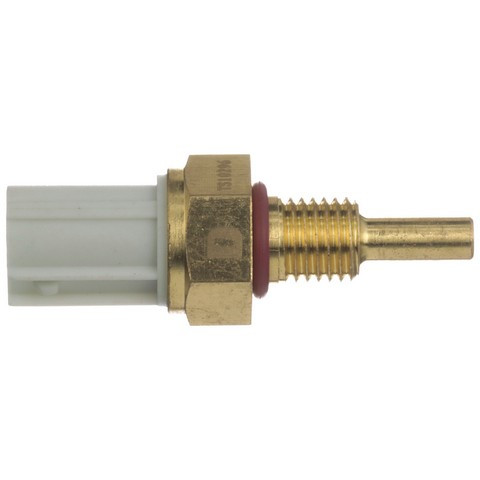

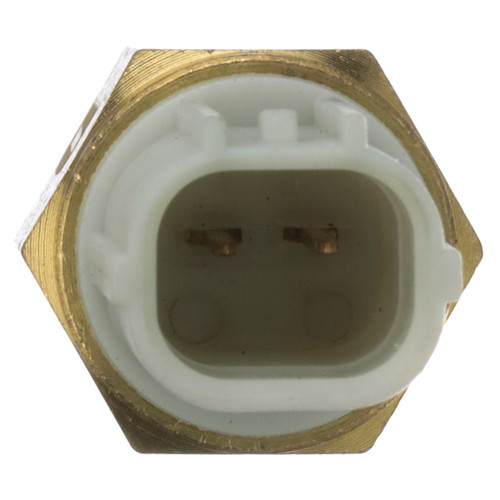

Delphi TS10296 coolant temperature sensor for the 2001-2005 Honda Civic 4-cylinder 1.7L, the 2002-2011 Civic 4-cylinder 2.0L, the 2003-2011 Civic 4-cylinder 1.3L, the 2006-2011 Civic 4-cylinder 1.8L and other vehicles reads engine coolant temperature and sends the signal to the engine computer. Also called an engine coolant temperature sensor, this Delphi coolant temperature sensor is the part to replace when that reading is wrong or missing.
- Accurate temperature readings from the sensor
- One-piece design with an automated production process that eliminates internal connectors and failure points
- Each sensor is electrically insulated to eliminate interference from other components in the vehicle
- Sensor is impervious to electrical noise and interference
Quick facts
- Part: Delphi TS10296 coolant temperature sensor
- Also called: engine coolant temperature sensor
- Fits: the 2001-2005 Honda Civic 4-cylinder 1.7L, the 2002-2011 Civic 4-cylinder 2.0L, the 2003-2011 Civic 4-cylinder 1.3L, the 2006-2011 Civic 4-cylinder 1.8L and other vehicles
- Condition: New
An erratic temperature gauge, a check engine light or hard starting can mean this sensor is worn, though a damaged wiring connector or a thermostat that sticks can be behind the same trouble, so find the cause before you replace anything.
Fits
This coolant temperature sensor is listed for a wide range of Honda and Acura models, including the 2003-2007 Honda Accord and the 2002-2006 Honda CR-V 4-cylinder 2.4L. The 2005-2007 Honda Accord takes two; this listing is one sensor.
Specifications
- Quantity per listing: 1
- Design: 1 piece
- Electrical insulation: each sensor is electrically insulated
- Condition: New
In the box
One coolant temperature sensor.
Interchange: 158-0811 · 37870-PLC-004 · 37870-PNA-003 · 37870-RAA-A01 · 211-1075
WT5068 · TS5618 · TS5622 · TS5828 · TX106 · TX218 · TX97 · 5S1529 · SU5584
This part cross-references / interchanges with the following part numbers:
WT5068, 158-0811, TS5618, TS5622, TS5828, 37870-PLC-004, 37870-PNA-003, 37870-RAA-A01, TX106, TX218, TX97, 211-1075, 5S1529, SU5584
Frequently Asked Questions
Is this ECT sensor the right one for the 2002-2011 Honda Civic 4-cylinder 2.0L?
Yes. Delphi TS10296 is listed for the 2002-2011 Honda Civic 4-cylinder 2.0L, and that engine takes one sensor. If your car is not named here, look it up in the "Vehicles it fits" section.
Is this the right coolant temperature sensor for the 2006-2011 Honda Civic 4-cylinder 1.8L?
Yes. This coolant temperature sensor is listed for the 2006-2011 Honda Civic 4-cylinder 1.8L, and that engine takes one.
What does the one-piece design of this Delphi sensor change?
Delphi TS10296 has a 1 piece body made by an automated process, so it has no internal connectors and fewer failure points. The sensor is also electrically insulated against interference from other components.
Does Delphi TS10296 replace the number 37870-PLC-004?
Yes. 37870-PLC-004 is among the numbers this Delphi sensor replaces, along with 37870-PNA-003 and 37870-RAA-A01.
Is anything besides the sensor in the box with this coolant temperature sensor?
No. The package contents list one coolant temperature sensor and nothing else.
