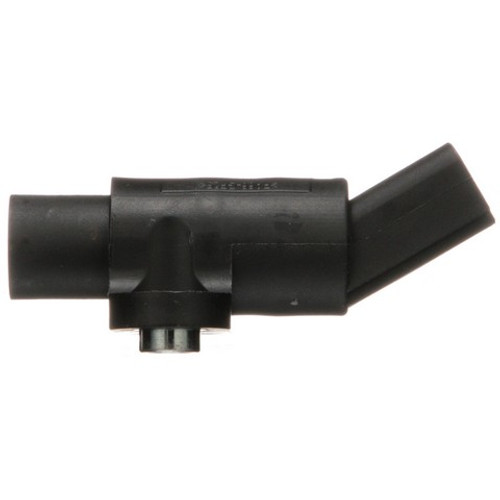

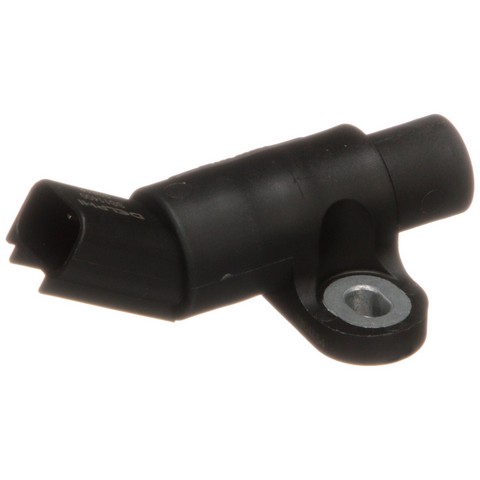

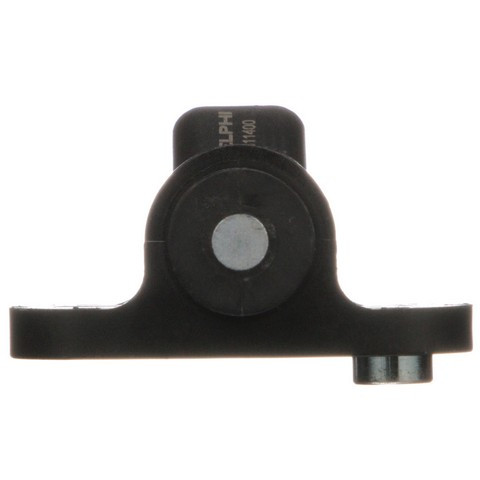

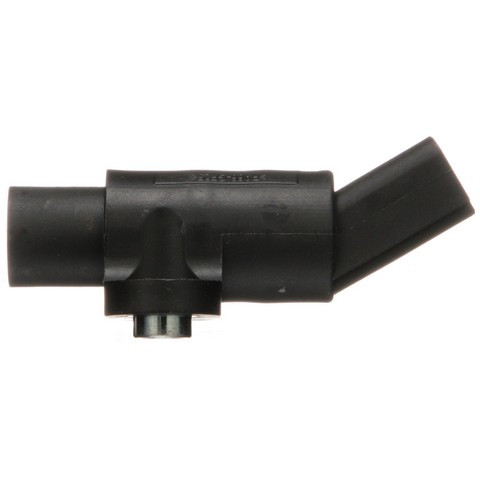

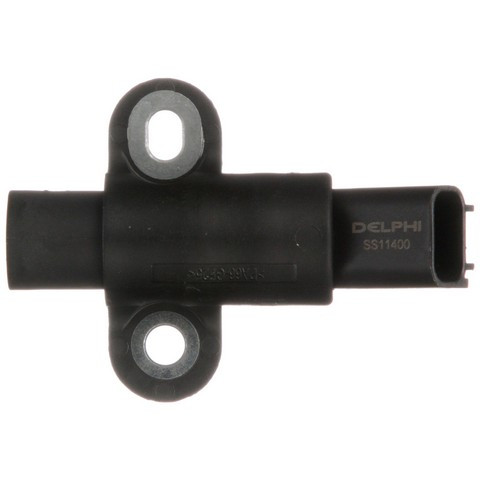

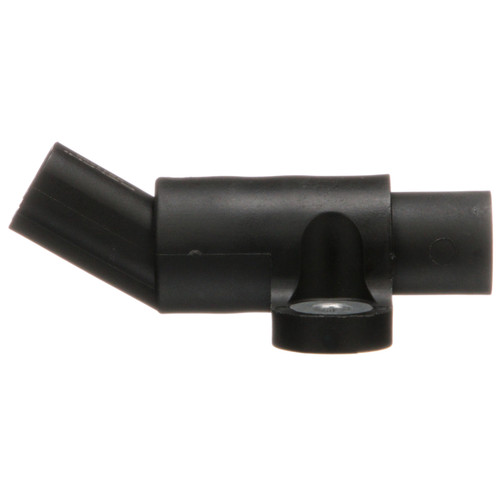

Keep ignition timing and fuel delivery in sync with the Delphi Engine Crankshaft Position Sensor SS11400, a direct-fit replacement for the 1991-1996 Ford Escort (L4-1.9L), 1997-2002 Ford Escort (L4-2.0L), 2000-2004 Ford Focus (L4-2.0L), 1991-1996 Mercury Tracer (L4-1.9L), and 1997-1999 Mercury Tracer (L4-2.0L). This crankshaft position sensor monitors the crankshaft's position and rotational speed and reports it to the PCM, which uses that input to control ignition timing and fuel injection.
- Calibrated to OE standards: tested and calibrated for accurate readings, which helps reduce comebacks; built to Delphi's OE-level requirements.
- Digital signal: digital output designed for a strong signal-to-noise ratio, with readings taken from the gap between the sensor contact and element.
- Build: sensor casing molded from PA66-GF25, black housing, oval female connector, two male blade terminals, and two mounting holes (0.3 in / 7.7 mm).
- Grade: Standard Replacement; stable across temperature changes.
Hard starting, a no-start, intermittent stalling, or misfires with a crank-related trouble code are signs the crankshaft position sensor may need replacing — if the sensor is the cause, this replaces it. Ships with an instruction sheet; no wiring harness or gasket/seal included. Country of origin: China.
Interchange: 1S4Z 6C315-AB · 235-1018
CSS400 · CSS400SB · S10101 · PC429 · 1S4Z6C315AB · 2351018
This part cross-references / interchanges with the following part numbers:
CSS400, 1S4Z 6C315-AB, CSS400SB, S10101, PC429, 235-1018
