Keep your engine computer informed of crankshaft position and speed with this Delphi sensor, the Engine Crankshaft Position Sensor SS12164. It supplies the signal the engine uses to time ignition and fuel delivery, and it is a standard replacement grade. It is listed for many models from Ford and Lincoln with V6-3.3L and V6-3.5L engines, among them the 2011-2024 Ford F-150 3.3L or 3.5L, 2013-2022 Ford Explorer 3.3L or 3.5L and 2015-2023 Ford Expedition 3.5L. See the "Vehicles it fits" section for the full list.
Delphi develops its sensors under stringent OE development and product validation methods. Each unit is tested and calibrated to OE standards for accurate readings that help reduce comebacks.
- Accurate readings: the sensor's design gives accurate output from the gap between the sensor contact and the element. It is built to satisfy or surpass OE requirements.
- Enhanced sensing: designed to help reduce emissions and improve reliability and drivability.
- Temperature-stable: not affected by temperature changes, with robust, long-lasting sensor protection.
- Digital output: designed for maximum signal-to-noise ratio.
Specifications:

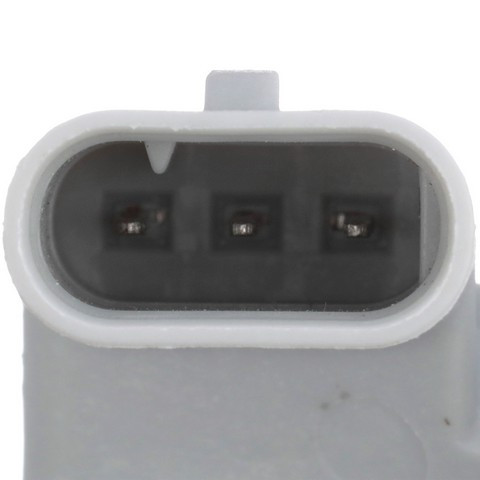

- One oval female connector with 3 male pin terminals
- PA66-GF25 sensor casing, 53.7 mm (2.11 in) long and 16.8 mm (0.66 in) in diameter
- Single 8.5 mm (0.33 in) mounting hole
- Black and gray
The listed applications use one sensor. The package includes the sensor and an instruction sheet. A gasket or seal and a wiring harness are not included. Country of origin: China.
Signs a crankshaft position sensor may need replacing include a crank-no-start condition, stalling, intermittent misfires or rough running, and an illuminated check engine light. These symptoms can have other causes, so diagnose the fault before replacing the sensor.
Interchange: BL3Z 6C315-A · BL3Z 6C315-B
CSS1864 · CSS1364 · CSS1549 · PC1049 · PC862 · 5S12704 · BL3Z6C315A · BL3Z6C315B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CSS1864, CSS1364, CSS1549, BL3Z 6C315-A, BL3Z 6C315-B, PC1049, PC862, 5S12704
Frequently Asked Questions
What does a Delphi crankshaft position sensor do?
It reads the position and speed of the crankshaft and sends that signal to the engine computer, which uses it to time ignition and fuel delivery. Its digital output is designed for maximum signal-to-noise ratio.
Will this sensor fit my 2011-2024 Ford F-150 with the 3.3L or 3.5L engine?
It is listed for the 2011-2024 Ford F-150 with the V6-3.3L or V6-3.5L engine. Check the "Vehicles it fits" section to confirm your vehicle.
What comes in the box?
The package contains one engine crankshaft position sensor and an instruction sheet. A gasket or seal and a wiring harness are not included.
What are the sensor's connector and casing specs?
It has one oval female connector with 3 male pin terminals. The PA66-GF25 casing is 53.7 mm long and 16.8 mm in diameter, with a single 8.5 mm mounting hole.
What are signs a crankshaft position sensor may need replacing?
Common signs include a crank-no-start condition, stalling, intermittent misfires or rough running, and a check engine light. Other faults can cause these too, so diagnose before replacing.
