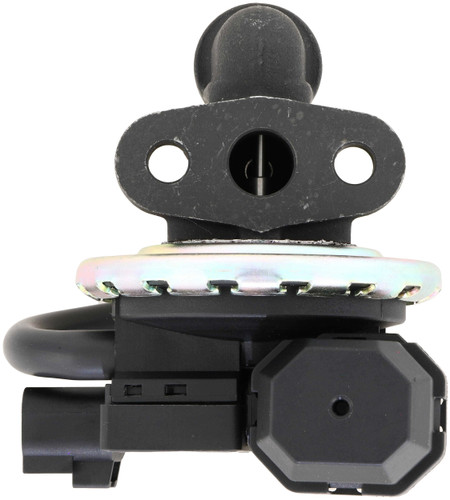

Delphi EG10665 exhaust gas recirculation (egr) valve for the 2006-2010 Ford F-150 V8 4.6L and other vehicles routes exhaust back into the intake to help control emissions.
- No spacers or washers are required, and a gasket comes with the valve
- Accurate exhaust flow and emission control
- High-temperature and corrosion-resistant materials for use in any engine environment
- Valve and seat are precision machined to help hold long-term stability and performance
- No audible regulator noise
Quick facts
- Part: Delphi EG10665 exhaust gas recirculation (egr) valve
- Fits: 2006-2010 Ford F-150 V8 4.6L and other vehicles
- Condition: New
A rough idle, hesitation or a check engine light can mean this EGR valve is worn, though a clogged EGR passage or a leaking vacuum line can be behind the same signs, so find the cause first. If the valve is the cause, this one replaces it.
Fits
This valve also fits the 2007-2014 Ford E-150 V8 4.6L and the 2007-2014 Ford E-250 V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Vacuum ports: 2, 0.196 in diameter
- Mounting holes: 2
- Connector: 1 male rectangle connector with 6 male blade terminals
Build and materials
- EGR valve type: vacuum type
- Gasket: included
- Condition: New
- Country of origin: China
In the box
One EGR valve, one gasket and one instruction sheet. This listing is one valve, and each vehicle takes one. Bolts are not included, so plan on new ones.
Interchange: 7L3Z 9D475-B
EGR1895 · 226795 · EGV1136 · 4F2060
This part cross-references / interchanges with the following part numbers:
EGR1895, 226795, 7L3Z 9D475-B, EGV1136, 4F2060
Frequently Asked Questions
Does the Delphi EG10665 EGR valve fit a 2007-2014 Ford E-150 V8 4.6L?
Yes. Delphi EG10665 is listed for the 2007-2014 Ford E-150 V8 4.6L, and it is also listed for the 2006-2010 Ford F-150 V8 4.6L.
Is the EG10665 the right EGR valve for a 2007-2014 Ford E-250 V8 4.6L?
Yes. Delphi EG10665 is listed for the 2007-2014 Ford E-250 V8 4.6L, with one valve per vehicle.
Does the Delphi EG10665 come with a gasket?
Yes. The Delphi EG10665 box holds the EGR valve, one gasket and an instruction sheet. Bolts are not included.
What type of EGR valve is the Delphi EG10665, and how big are its vacuum ports?
The Delphi EG10665 is a vacuum-type EGR valve with two vacuum ports. The vacuum port diameter is 0.196 in.
Does the Delphi EG10665 replace 7L3Z 9D475-B?
Yes. 7L3Z 9D475-B is listed as an interchange number for Delphi EG10665.
