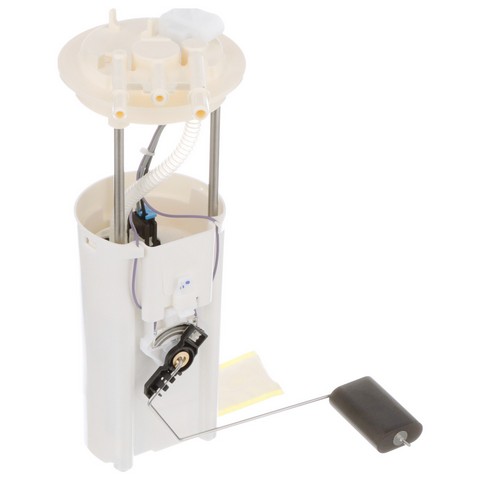

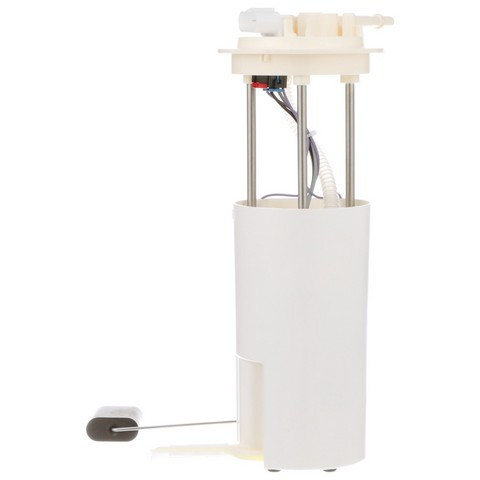

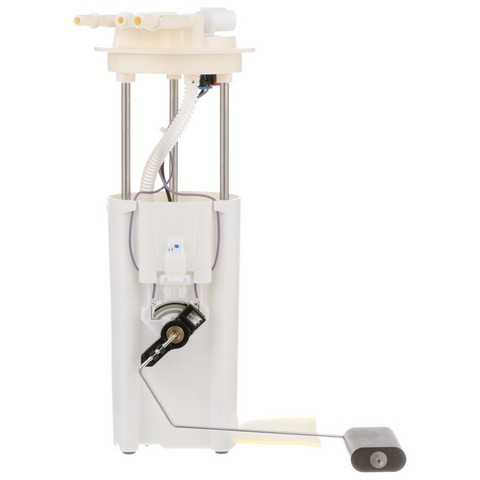

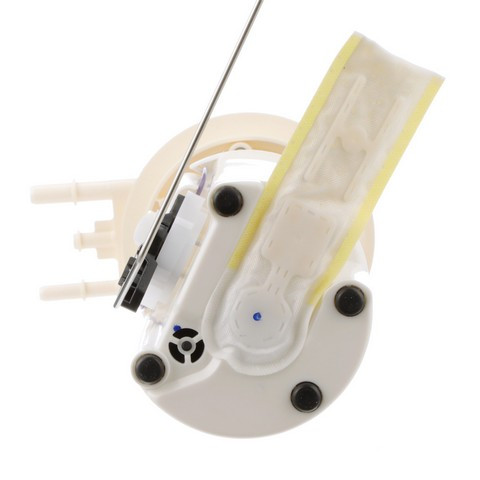

Delphi FG0038 fuel pump module for the 1995 Chevrolet Tahoe V8 5.7L and other vehicles delivers fuel from the tank to the engine. This Delphi fuel pump module is built to Delphi's OE standards.
- Validated and tested for the application it is matched to
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw for less load on the vehicle's electrical system
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0038 fuel pump module
- Also called: fuel pump assembly
- Fits: 1995 Chevrolet Tahoe V8 5.7L and other vehicles
- Condition: New
Hard starting, stalling or an erratic fuel gauge can mean the module is worn. A clogged fuel filter or a fuel pump relay fault can also cause hard starting or stalling, so find the cause before replacing the module.
Fits
It fits the 1995 Chevrolet Tahoe V8 5.7L and the 1995 GMC Yukon V8 5.7L, and both take one module.
Specifications
- Quantity per vehicle: 1
- Engine: V8 5.7L
- Condition: New
In the box

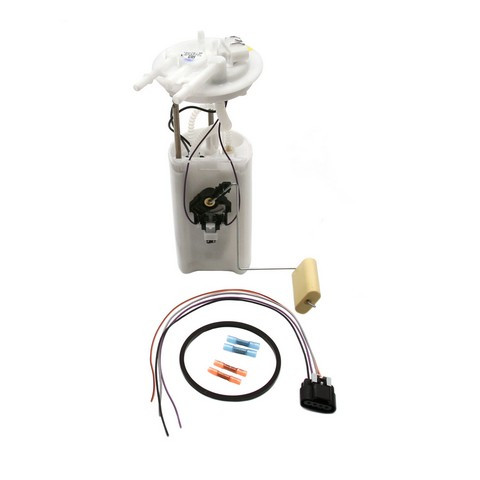

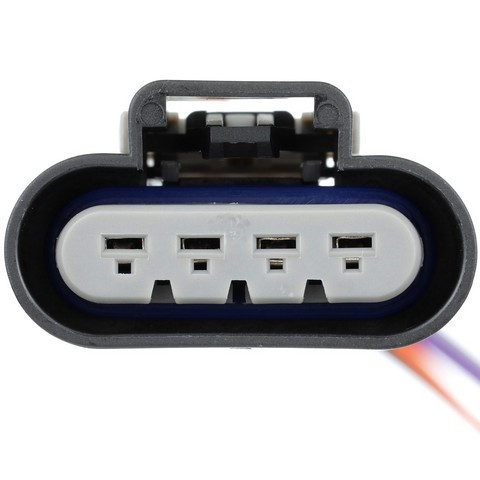

One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 953-5022
MU1605 · MU28 · 4010056 · E3930M · E3931 · DFG0038 · 67339 · 69238 · P74219 · P74817M · 19153721 · 19332085 · 25166179 · C0337M · A41001 · E16137 · SP1202 · SP6028M · USEP3930M
This part cross-references / interchanges with the following part numbers:
MU1605, MU28, 4010056, E3930M, E3931, DFG0038, 67339, 69238, P74219, P74817M, 953-5022, 19153721, 19332085, 25166179, C0337M, A41001, E16137, SP1202, SP6028M, USEP3930M
Frequently Asked Questions
Does the Delphi FG0038 fit the 1995 GMC Yukon V8 5.7L?
Yes. Delphi FG0038 fits the 1995 GMC Yukon V8 5.7L and the 1995 Chevrolet Tahoe V8 5.7L, and each takes one.
Does the Delphi fuel pump module assembly come with the float arm and wire harness?
Yes. Delphi FG0038 comes with the float arm, seal, splices, wire harness and an instruction sheet.
Does this Delphi module keep the fuel gauge accurate?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does the Delphi fuel module draw less current from the electrical system?
Yes. This module's lower amperage puts less load on the vehicle's electrical system.
Do I need to clean the fuel tank before installing a fuel pump assembly?
Yes. Check and clean the tank first, and follow the instruction sheet that comes with the module for the rest of the steps.
