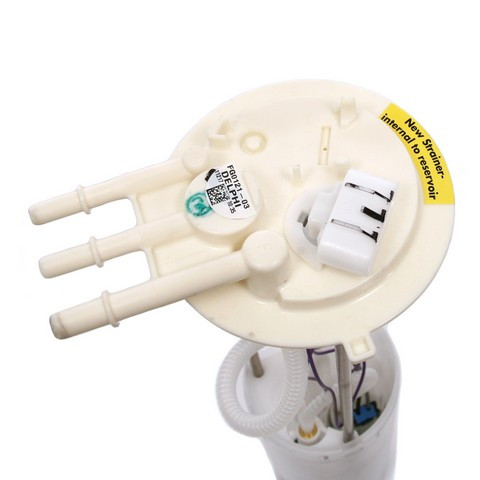

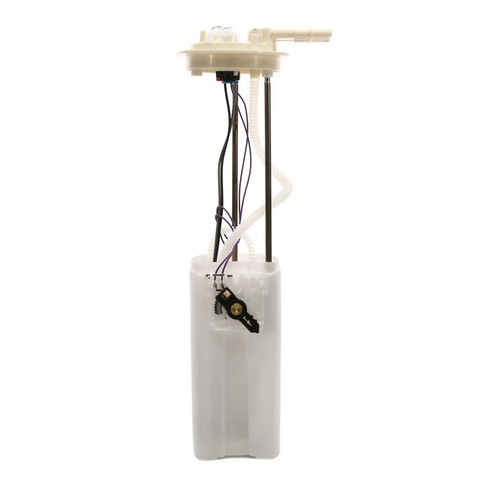

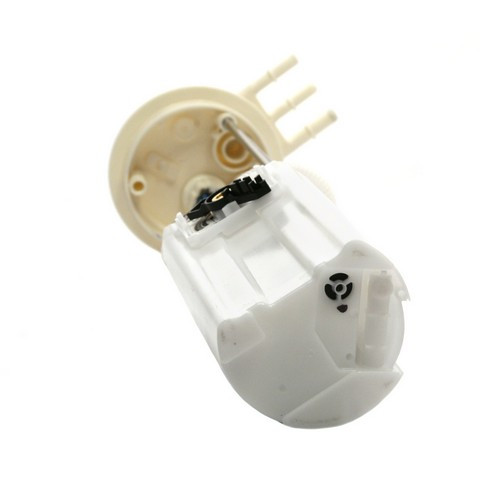

Delphi FG0121 fuel pump module for the 2001-2003 Chevrolet Silverado 3500 V8 6.0L or 8.1L and other vehicles sends fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or float arm is wearing out. Before you replace the module, rule out a blown fuse, a faulty relay and a restricted fuel filter, since each of those can also leave the engine hard to start.
It fits the 2001-2003 Chevrolet Silverado 3500 V8 6.0L or 8.1L and the 2001-2003 GMC Sierra 3500 V8 6.0L or 8.1L, and each takes one module.

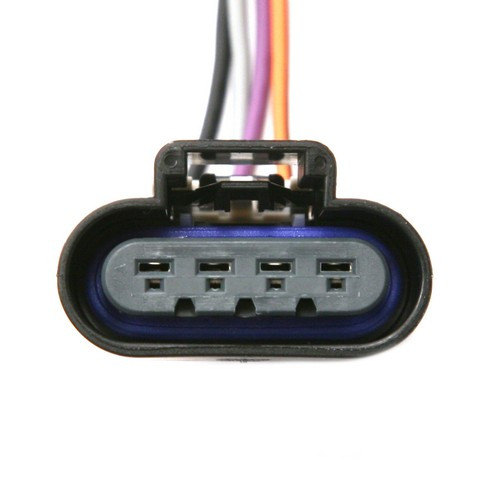

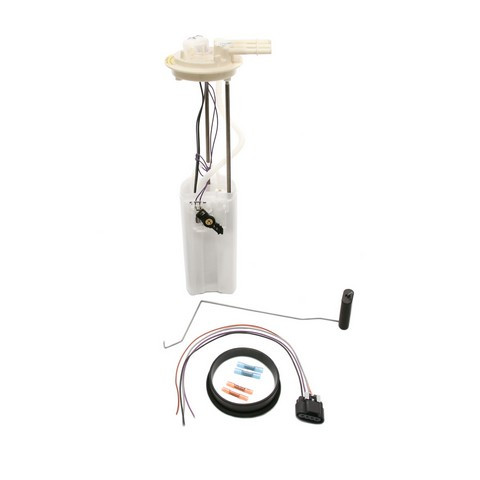

One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Interchange: 953-5069
MU1061 · MU1776 · MU196 · 4010285 · E3530M · EFG0121 · P74931M · P75007M · 19179596 · 19332078 · 19369897 · 25319808 · 25344812 · D0187M · A43017 · SP6612M · SP6655M · USEP3530M
This part cross-references / interchanges with the following part numbers:
Is the Delphi fuel pump module assembly right for the 2001-2003 Chevrolet Silverado 3500 V8 6.0L or 8.1L?
Yes. Delphi FG0121 fits the 2001-2003 Chevrolet Silverado 3500 V8 6.0L or 8.1L, and also the 2001-2003 GMC Sierra 3500 V8 6.0L or 8.1L. Each takes one.
What comes with the Delphi fuel module besides the pump?
The module comes with a float arm, seal, splices, wire harness and an instruction sheet.
Does the Delphi module keep the gas gauge reading accurate?
Yes. Its empty float height and float retention match OE specifications, which is what gives a correct gas gauge reading.
Should I clean the tank before fitting Delphi FG0121?
Yes, the fuel tank should be checked and cleaned first. The instruction sheet that comes with Delphi FG0121 covers the steps.
Does the Delphi fuel pump module cross to number 19332078?
Yes. 19332078 is one of the numbers Delphi FG0121 replaces; the full list is on the Interchange line.
