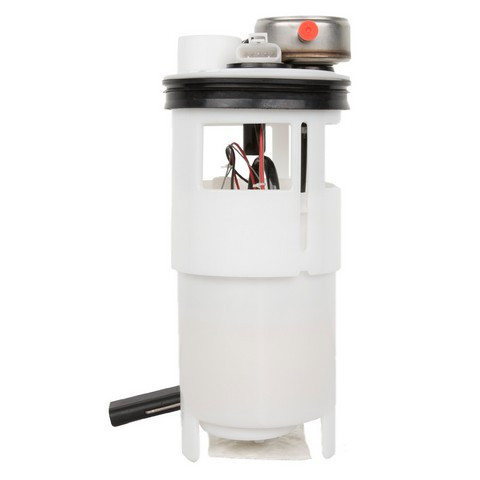

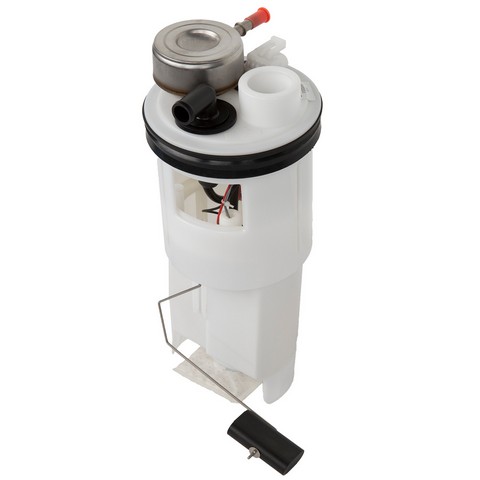

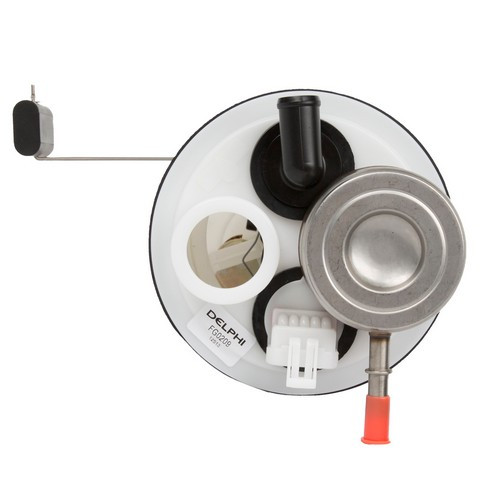

Delphi FG0209 fuel pump module for the 1995-1996 Dodge B2500 V6 3.9L, V8 5.2L or 5.9L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly comes with a float arm and is built to Delphi's OE standards.
- Empty float height and float retention give a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG0209 fuel pump module
- Also called: fuel pump assembly
- Fits: 1995-1996 Dodge B2500 V6 3.9L, V8 5.2L or 5.9L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong may involve this module. The fuel filter, the pump relay or damaged wiring can produce similar symptoms, so trace the cause before you buy.
Fits
This fuel pump assembly is listed for a wide range of Dodge models, led by the 1995-1996 Dodge B2500 V6 3.9L, V8 5.2L or 5.9L, the 1995-1996 B1500 V6 3.9L or V8 5.2L and the 1995-1996 B3500 V8 5.2L or 5.9L. A 1995-1996 Dodge B2500 V6 3.9L, V8 5.2L or 5.9L takes one module. If your Dodge is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
- Empty float height and float retention: match OE specifications
In the box
One fuel pump module assembly with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the installation steps.
Interchange: 5014 211AA · 5212 7761 · 5212 7763 · 953-3055 · 953-3067 · 953-6002 · 5201 7915
MU81 · 4010047 · E7063M · DFG0209 · P321M · 67621 · P74653M · P74658M · P74698M · 52018613 · 52018614 · AFS0282S · RE0282S · EFP7063M · C0411M · A30080 · SP6081M · USEP7063M · TU125
This part cross-references / interchanges with the following part numbers:
MU81, 4010047, E7063M, DFG0209, P321M, 67621, P74653M, P74658M, P74698M, 5014 211AA, 52018613, 52018614, 5212 7761, 5212 7763, 953-3055, 953-3067, 953-6002, AFS0282S, RE0282S, EFP7063M, C0411M, A30080, SP6081M, USEP7063M, 5201 7915, TU125
Frequently Asked Questions
Does the Delphi fuel module FG0209 fit the 1995-1996 Dodge B2500 V6 3.9L, V8 5.2L or 5.9L?
Yes. Delphi FG0209 is listed for the 1995-1996 Dodge B2500 with the V6 3.9L, V8 5.2L or 5.9L, and the quantity per vehicle is one.
What comes with this Delphi module?
The listing is one fuel pump module assembly with its float arm and an instruction sheet.
Does this Delphi fuel pump module match the original float height?
Yes. On the Delphi FG0209, the empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
What signs can a worn fuel pump module show?
Hard starting, stalling or a gas gauge that reads wrong can be signs. Because this is a fuel part, have a shop check the car promptly instead of driving on it.
Should the fuel tank be cleaned when installing the FG0209?
Yes. Inspect the tank and clean it before the new module goes in; the instruction sheet in the box covers the steps.
