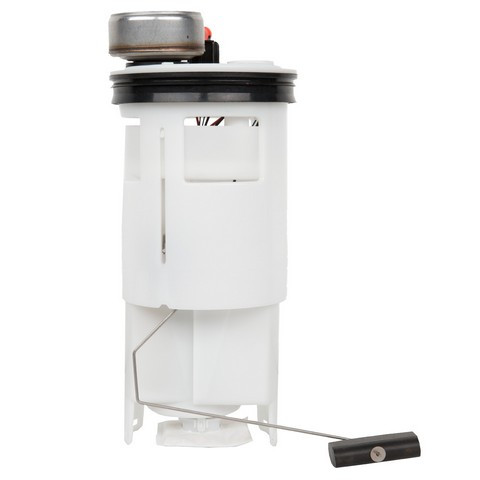

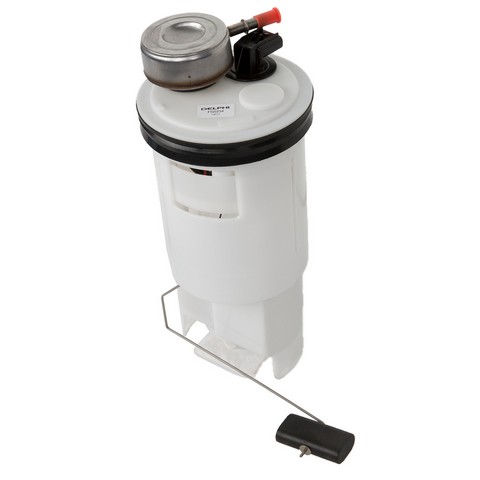

Delphi FG0234 fuel pump module for the 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L and the 1998-1999 Dakota V8 5.9L supplies fuel from the tank to the engine. This Delphi fuel pump module assembly comes with a float arm and a seal, and all Delphi fuel pumps are built to Delphi's OE standards.
- Empty float height and float retention are matched to specification for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for the application it is matched to
- Design and durability give lower failure rates
Quick facts
- Part: Delphi FG0234 fuel pump module
- Also called: fuel pump assembly
- Fits: 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L and the 1998-1999 Dakota V8 5.9L
- Condition: New
A worn fuel pump module can show up as hard starting, sputtering or stalling, or a fuel gauge that reads wrong. Those signs can also come from a blown fuse or a damaged connector, so with the engine off, look over the fuse and the wiring connector before you replace the module. This listing is one module, and a truck needs just that one.
Fits
It fits the 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L and the 1998-1999 Dakota V8 5.9L.
Specifications
- Quantity per vehicle: 1
- Included: float arm and seal
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- An instruction sheet comes with the part for the steps.
- Check and clean the fuel tank during installation.
Interchange: 4897 493AA · 4897 920AA · 4897 920AB · 953-3020 · 402-P7114M
MU253 · 4010121 · E7114M · DFG0234 · F3125A · 67654 · P74739M · 4882204 · 4886297AA · 4897920AC · 4897920AD · 52102192 · 52102355 · AFS0504S · RE0504S · C0435M · A30101 · SP7114M · USEP7114M · TU136
This part cross-references / interchanges with the following part numbers:
MU253, 4010121, E7114M, DFG0234, F3125A, 67654, P74739M, 4882204, 4886297AA, 4897 493AA, 4897 920AA, 4897 920AB, 4897920AC, 4897920AD, 52102192, 52102355, 953-3020, AFS0504S, RE0504S, C0435M, 402-P7114M, A30101, SP7114M, USEP7114M, TU136
Frequently Asked Questions
Does the Delphi FG0234 fuel pump module fit the 1998-1999 Dodge Dakota V8 5.9L?
Yes. Delphi FG0234 is listed for the 1998-1999 Dodge Dakota V8 5.9L, and the truck takes one module.
Does the Delphi fuel pump module come with a float arm and seal?
Yes. Delphi FG0234 comes with the float arm, a seal and an instruction sheet.
Will the float on this Delphi fuel module give a correct gas gauge reading?
Yes. This fuel pump module has an empty float height and float retention that match OE specifications, for correct gas gauge readings.
How does the lower amperage of this Delphi module help?
This fuel pump module draws lower amperage, so it puts less load on the vehicle's electrical system.
Does the Delphi fuel pump assembly come with installation instructions?
Yes, an instruction sheet comes with this fuel pump module. Check and clean the fuel tank during installation.
