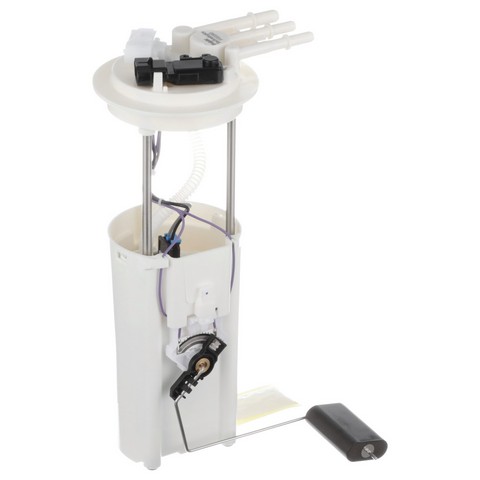

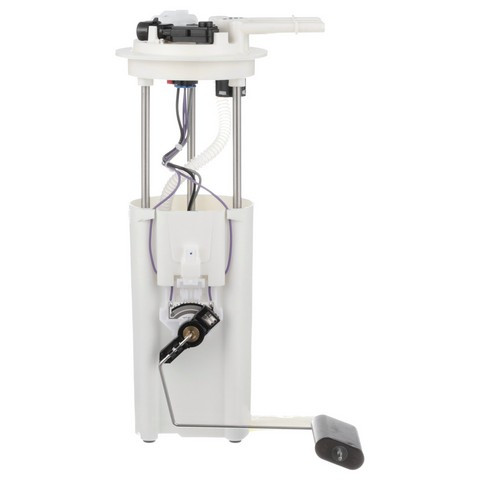

Delphi FG0260 fuel pump module for the 2000-2004 Buick Regal V6 3.8L and other vehicles pumps fuel from the tank to the engine. Also called a fuel pump assembly, it comes with a float arm for the gas gauge reading.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage puts less load on the electrical system
- Validated and tested for its application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0260 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2004 Buick Regal V6 3.8L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is worn, though a clogged fuel filter or a blown fuel pump fuse can be behind them too.
Fits
This is a direct-fit replacement for the 2000-2004 Buick Regal V6 3.8L and the 2001-2003 Pontiac Grand Prix V6 3.8L, and each takes one module. Delphi builds its fuel pumps to its OE standards.
Specifications
Fit and size
- Engine: V6 3.8L
- Quantity per vehicle: 1
Build and materials
- Construction: fuel pump module with float arm
- Condition: New
In the box
One fuel pump module with float arm, one seal, one splice kit and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box gives the steps.
Interchange: 953-5087 · 953-5097
MU1075 · MU1741 · MU212 · MU241 · 4010255 · E3519M · E3542M · DFG0260 · F2612A · 67393 · 67497 · 67505 · P74830M · P74928M · P74984M · AFS0759S · RE0759S · 19177222 · 19331277 · 25320815 · 25326814 · 25344968 · A27062 · SP6005M · USEP3519M
This part cross-references / interchanges with the following part numbers:
MU1075, MU1741, MU212, MU241, 4010255, E3519M, E3542M, DFG0260, F2612A, 67393, 67497, 67505, P74830M, P74928M, P74984M, 953-5087, 953-5097, AFS0759S, RE0759S, 19177222, 19331277, 25320815, 25326814, 25344968, A27062, SP6005M, USEP3519M
Frequently Asked Questions
Does Delphi FG0260 fit the 2001-2003 Pontiac Grand Prix V6 3.8L?
Yes. Delphi FG0260 fits the 2001-2003 Pontiac Grand Prix V6 3.8L and the 2000-2004 Buick Regal V6 3.8L.
What comes with the Delphi fuel pump module assembly?
Delphi FG0260 comes with the fuel pump module and its float arm, a seal, a splice kit and an instruction sheet.
Does the Delphi fuel module match the original float height?
Yes. The empty float height and float retention match OE specifications for a correct gas gauge reading.
Should I clean the tank before fitting this Delphi module?
Yes. Check and clean the fuel tank before installing the new module.
Is the Delphi fuel pump module a low-amperage design?
Yes. Delphi FG0260 has a lower amperage draw, so it puts less load on the vehicle's electrical system.
