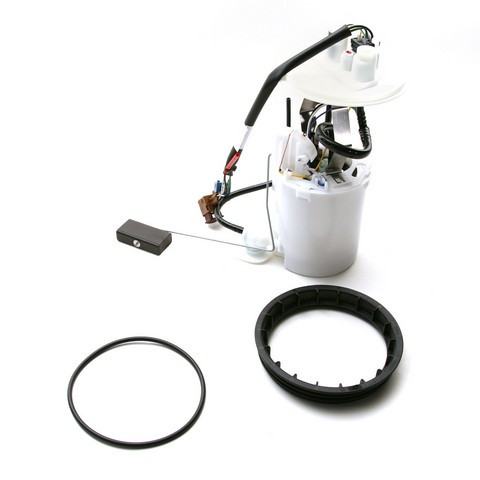

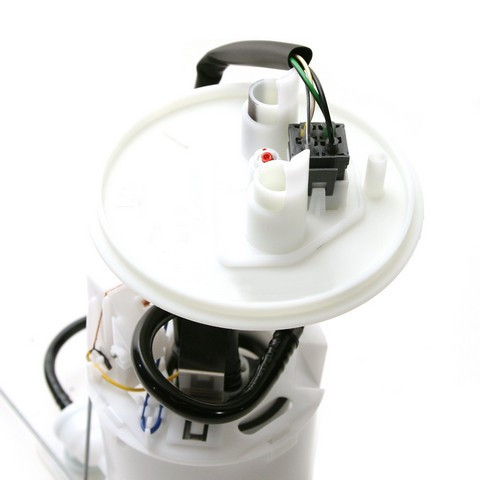

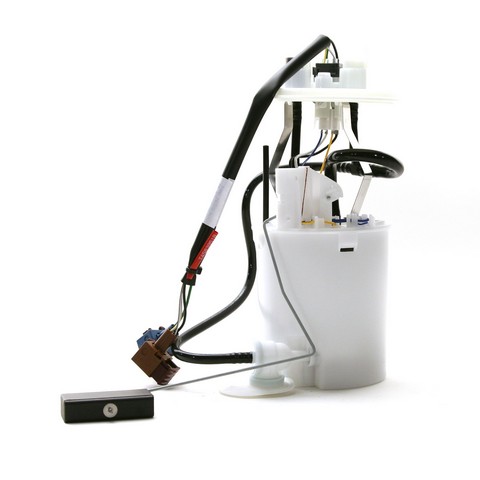

Delphi FG0511 fuel pump module for the 1994 Saab 900 4-cylinder 2.1L, the 1994-1997 900 V6 2.5L and the 1994-1998 900 4-cylinder 2.0L or 2.3L moves gasoline from the tank toward the engine. The Delphi fuel pump module assembly is built to Delphi's OE standards and pairs an electric in-tank pump with a float arm and an external strainer.
- Empty float height and float retention set to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
- Female quick connect outlet and a strainer on the pump inlet
Quick facts
- Part: Delphi FG0511 fuel pump module
- Also called: fuel pump assembly
- Fits: 1994 Saab 900 4-cylinder 2.1L, the 1994-1997 900 V6 2.5L and the 1994-1998 900 4-cylinder 2.0L or 2.3L
- Material: Plastic housing
- Condition: New
Hard starting, stalling or an erratic gas gauge can mean the fuel pump assembly or its float needs attention. Before you replace the module, rule out a clogged fuel filter, a fuel pump fuse or relay and wiring faults, since those can look the same from the driver's seat. The 1994 Saab 900 4-cylinder 2.1L, the 1994-1997 900 V6 2.5L and the 1994-1998 900 4-cylinder 2.0L or 2.3L each take one module, and this listing is one.
Fits
This module fits the 1994 Saab 900 4-cylinder 2.1L, the 1994-1997 900 V6 2.5L and the 1994-1998 900 4-cylinder 2.0L or 2.3L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, square, male
- Terminals: 4, male pin
- Outlets: 2, female quick connect
Build and materials
- Pump type: electric, in tank, for gasoline
- Housing material: plastic
- Strainer: external, included
- Condition: new
- Country of origin: China
In the box
One fuel pump module with float arm, seal, lock ring and instruction sheet. A regulator is not included. Mounting hardware is not included either, so plan on new fasteners; the old ones may not be reusable.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box gives the steps.
Interchange: 53 28 885
4010052 · E8077 · DFG0511 · 67605 · 69424 · P76153M · AFS0592P · RE0592P · A41016 · A41018 · SP1210 · SP5001M · TU300
This part cross-references / interchanges with the following part numbers:
4010052, E8077, DFG0511, 67605, 69424, P76153M, AFS0592P, RE0592P, A41016, A41018, 53 28 885, SP1210, SP5001M, TU300
Frequently Asked Questions
Does the Delphi FG0511 fit a 1994 Saab 900 with the 2.1L engine?
Yes. Delphi FG0511 fits the 1994 Saab 900 4-cylinder 2.1L.
Does the Delphi fuel module come with a lock ring and seal?
Yes. Delphi FG0511 comes with the float arm, seal, lock ring and instruction sheet. Mounting hardware and a regulator are not included.
Is the Delphi module an in-tank electric pump?
Yes. This fuel pump module is an electric in-tank pump for gasoline, with a plastic housing, an external strainer and a female quick connect outlet.
Can hard starting or a wrong gas gauge reading come from this fuel pump module?
Yes, either can come from the pump or its float arm, though other fuel or electrical faults can too. A shop can test the pump safely.
What should I do before installing this Delphi fuel pump module?
Check and clean the fuel tank first. Delphi FG0511 comes with an instruction sheet that gives the installation steps.
