Left Fuel Pump Module for 2004-2006 Chrysler Pacifica - Delphi FG0784

$214.99
WARNING:California Proposition 65▾

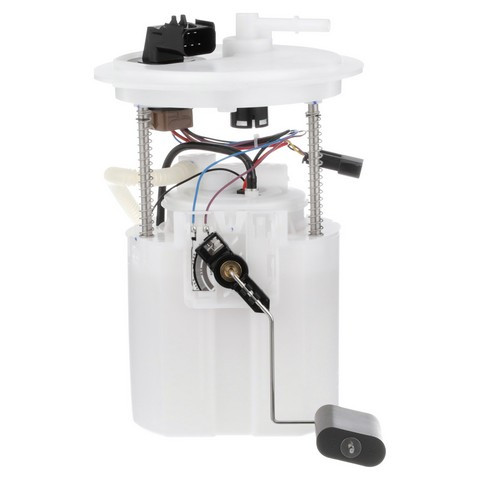

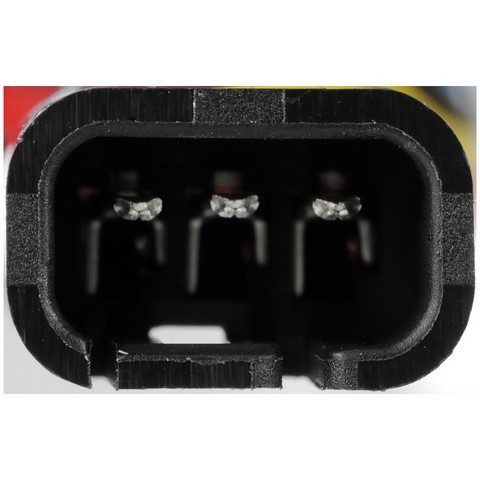

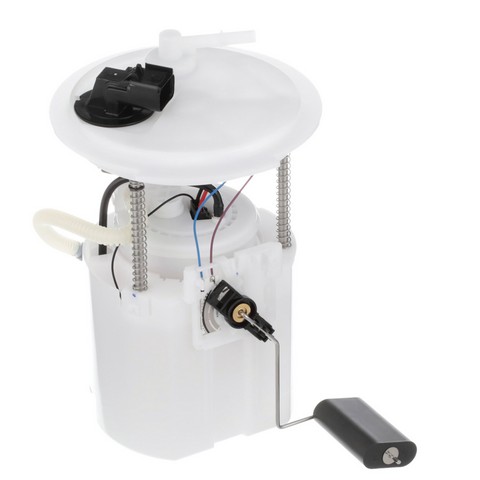

Delphi Fuel Pump Module Assembly FG0784

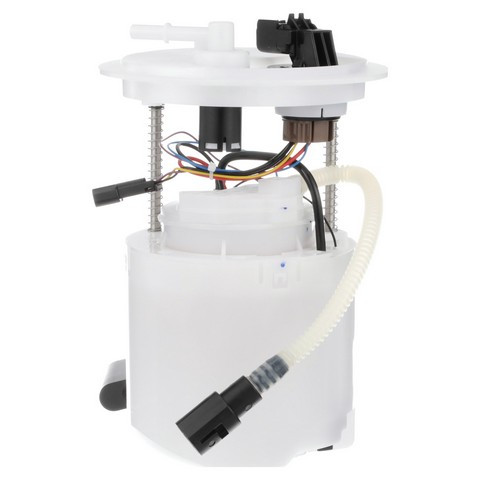

Delphi Fuel Pump Module Assembly FG0784 - view 2
Delphi Fuel Pump Module Assembly FG0784 - view 3
Delphi Fuel Pump Module Assembly FG0784 - view 4

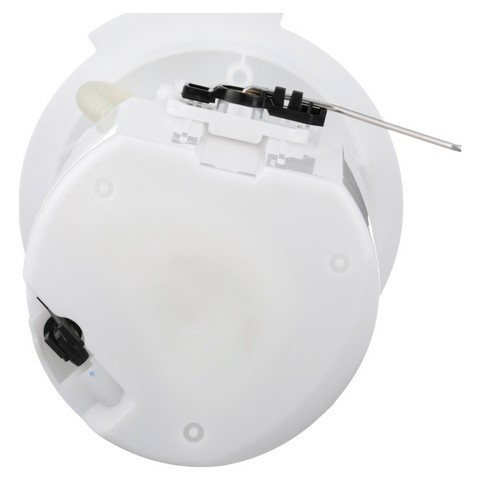

Delphi Fuel Pump Module Assembly FG0784 - view 5
Delphi Fuel Pump Module Assembly FG0784 - view 6
Delphi Fuel Pump Module Assembly FG0784 - view 7
Delphi Fuel Pump Module Assembly FG0784 - view 8
Delphi Fuel Pump Module Assembly FG0784 - view 9
Delphi Fuel Pump Module Assembly FG0784 - view 10
Delphi Fuel Pump Module Assembly FG0784
Delphi Fuel Pump Module Assembly FG0784 - view 2
Delphi Fuel Pump Module Assembly FG0784 - view 3
Delphi Fuel Pump Module Assembly FG0784 - view 4
Delphi Fuel Pump Module Assembly FG0784 - view 5
Delphi Fuel Pump Module Assembly FG0784 - view 6
Delphi Fuel Pump Module Assembly FG0784 - view 7
Delphi Fuel Pump Module Assembly FG0784 - view 8
Delphi Fuel Pump Module Assembly FG0784 - view 9
Delphi Fuel Pump Module Assembly FG0784 - view 10

Vehicles this part fits
    Part number: FG0784
    UPC: 689604195628
    Condition: New
    Weight: 6.45 LBS
    Item Package Quantity: 1
    $214.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Delphi Fuel Pump Module Assembly P/N:FG0784
    Delphi Fuel Pump Module Assembly P/N:FG0784
    $214.99
    $214.99

    Delphi FG0784 left fuel pump module for the 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L holds the pump and float arm in the tank and sends fuel to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.

    • Empty float height and float retention set for a correct gas gauge reading
    • Lower amperage draw puts less load on the vehicle's electrical system
    • Validated and tested, then matched to the right application
    • Design and durability for lower failure rates

    Quick facts

    • Part: Delphi FG0784 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L
    • Position: Left
    • Condition: New

    A module that is wearing out can show up as hard starting, stalling or a fuel gauge that reads wrong. A bad fuel pump relay can also make the engine hard to start, so these signs alone do not point to the module.

    Fits

    It is a direct-fit replacement for the 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L.

    Specifications

    Fit and size

    • Position: Left
    • Quantity per vehicle: 1

    Build and materials

    • Construction: module assembly with float arm
    • Condition: New

    In the box

    One fuel pump module with float arm and seal, plus an instruction sheet. The left side takes one.

    Installation notes

    • Check and clean the fuel tank before fitting the module.
    • The instruction sheet in the package covers the installation steps.

    Interchange: 5101 804AA · 6802 8056AA · 6802 8056AB
    4010433 · E7194M · CFG0784 · 67686 · M2480512 · P76254M · P77264M · 5101803AB · C0487M · A30191 · SP7031M · USEP7194M

    This part cross-references / interchanges with the following part numbers:

    4010433, E7194M, CFG0784, 67686, M2480512, P76254M, P77264M, 5101803AB, 5101 804AA, 6802 8056AA, 6802 8056AB, C0487M, A30191, SP7031M, USEP7194M

    Frequently Asked Questions

    Does the Delphi fuel pump module fit the 2005-2006 Chrysler Pacifica V6 3.8L?

    Yes. Delphi FG0784 is a left-position module for the 2005-2006 Chrysler Pacifica V6 3.8L, and it also fits the 2004-2006 Pacifica V6 3.5L.

    Does this fuel pump assembly come with a float arm and seal?

    Yes. Delphi FG0784 comes as one module with the float arm and seal, plus an instruction sheet, and the left side takes one.

    Does the Delphi fuel module help the gas gauge read correctly?

    Yes. This module's empty float height and float retention match OE specifications, which gives a correct gas gauge reading.

    Could a long crank or a whine from the tank mean the left fuel pump module is wearing out?

    Yes, they can. A long crank, a whine from the tank or a loss of power under load can be signs of a worn module, and a shop can test fuel pressure to confirm.

    Do I need to clean the tank before fitting the Delphi module?

    Yes. Check and clean the fuel tank before the new module goes in; the instruction sheet in the package covers the installation steps.
