Left Fuel Pump Module for 2007-2008 Chrysler Pacifica - Delphi FG0786

$356.99
WARNING:California Proposition 65▾

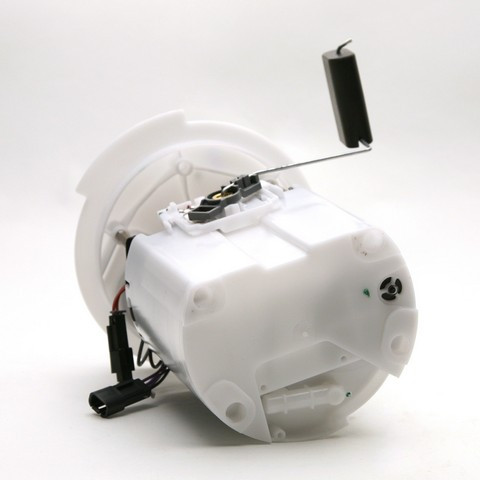

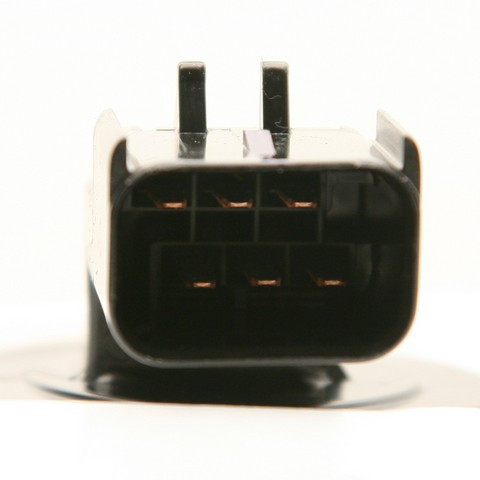

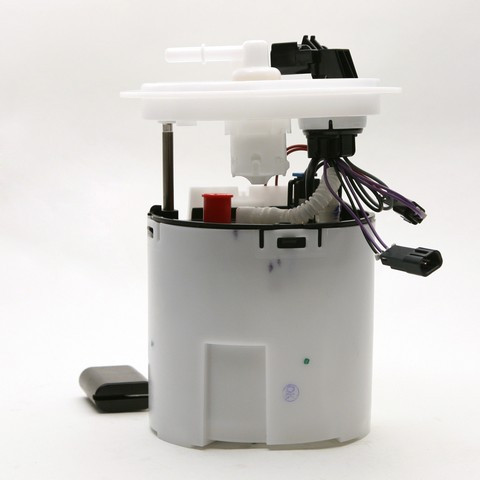

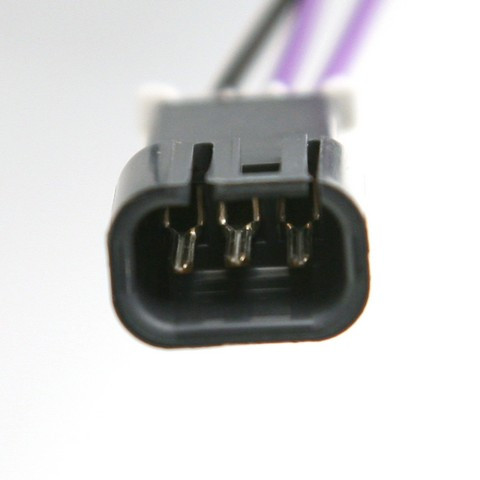

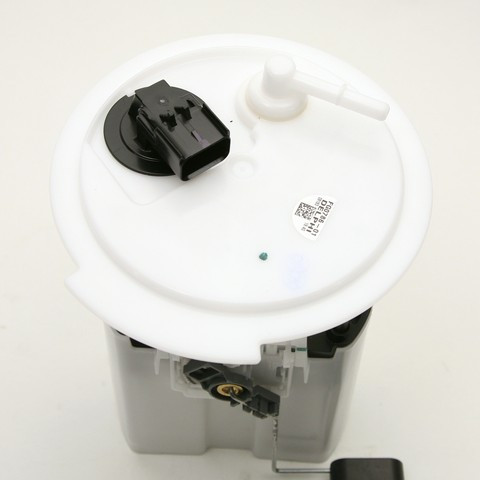

Delphi Fuel Pump Module Assembly FG0786
Delphi Fuel Pump Module Assembly FG0786 - view 2
Delphi Fuel Pump Module Assembly FG0786 - view 3
Delphi Fuel Pump Module Assembly FG0786 - view 4
Delphi Fuel Pump Module Assembly FG0786 - view 5
Delphi Fuel Pump Module Assembly FG0786 - view 6
Delphi Fuel Pump Module Assembly FG0786 - view 7
Delphi Fuel Pump Module Assembly FG0786
Delphi Fuel Pump Module Assembly FG0786 - view 2
Delphi Fuel Pump Module Assembly FG0786 - view 3
Delphi Fuel Pump Module Assembly FG0786 - view 4
Delphi Fuel Pump Module Assembly FG0786 - view 5
Delphi Fuel Pump Module Assembly FG0786 - view 6
Delphi Fuel Pump Module Assembly FG0786 - view 7

Vehicles this part fits
    Part number: FG0786
    UPC: 689604195642
    Condition: New
    Weight: 6.50 LBS
    Item Package Quantity: 1
    $356.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Delphi Fuel Pump Module Assembly P/N:FG0786
    Delphi Fuel Pump Module Assembly P/N:FG0786
    $356.99
    $356.99

    Delphi FG0786 left fuel pump module for the 2007-2008 Chrysler Pacifica V6 3.8L or 4.0L pumps fuel from the tank toward the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.

    • Validated and tested, then matched to its application
    • Empty float height and float retention are held to specification for a correct gas gauge reading
    • Lower amperage draw puts less load on the vehicle's electrical system
    • Design and durability for lower failure rates

    Quick facts

    • Part: Delphi FG0786 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2007-2008 Chrysler Pacifica V6 3.8L or 4.0L
    • Position: Left
    • Condition: New

    Hard starting, stalling or a fuel gauge that reads wrong can mean the module is worn. These signs alone do not prove the module is the problem; a blown fuel pump fuse is another common cause.

    Fits

    This module is a direct-fit replacement for the 2007-2008 Chrysler Pacifica V6 3.8L or 4.0L. This listing is one module for the left side, and that side takes one.

    Specifications

    Fit and size

    • Position: Left
    • Quantity per application: 1

    Build and materials

    • Float arm: included
    • Seal: included
    • Condition: New

    In the box

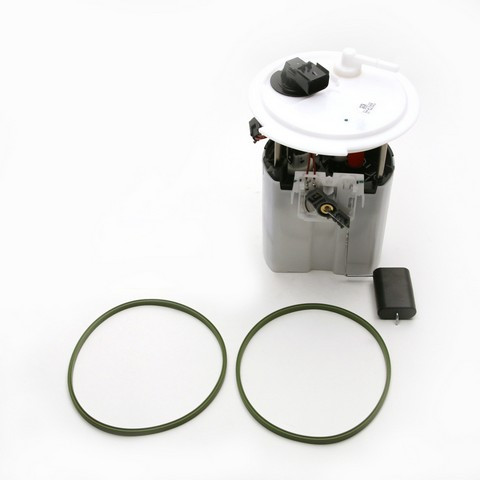

    One fuel pump module with float arm, seal and instruction sheet.

    Installation notes

    • Check and clean the fuel tank before installing.
    • The instruction sheet in the box covers the steps.

    Interchange: 4809 922AB · 6802 8057AA · 6802 8057AB
    4010569 · E7226M · CFG0786 · P76632M · C0505M · A30388 · SP7191M

    This part cross-references / interchanges with the following part numbers:

    4010569, E7226M, CFG0786, P76632M, 4809 922AB, 6802 8057AA, 6802 8057AB, C0505M, A30388, SP7191M

    Frequently Asked Questions

    Is the Delphi FG0786 the right left-side module for the 2007-2008 Chrysler Pacifica V6 3.8L or 4.0L?

    Yes. Delphi FG0786 is the left fuel pump module for the 2007-2008 Chrysler Pacifica with either the V6 3.8L or the V6 4.0L, and the left side takes one.

    What comes in the box with the Delphi fuel module?

    Delphi FG0786 comes as a fuel pump module with a float arm, a seal and an instruction sheet.

    Does the float on this fuel pump assembly match the original specifications?

    Yes. Its empty float height and float retention match OE specifications, which is what gives a correct gas gauge reading.

    Should I clean the tank before installing the Delphi FG0786?

    Yes. Check and clean the fuel tank before installing the module. Delphi FG0786 comes with an instruction sheet that covers the steps.

    Is 6802 8057AA a cross-reference for this left fuel pump module?

    Yes. 6802 8057AA is one of the interchange numbers listed for the Delphi FG0786 left fuel pump module, along with 4809 922AB and several others.
