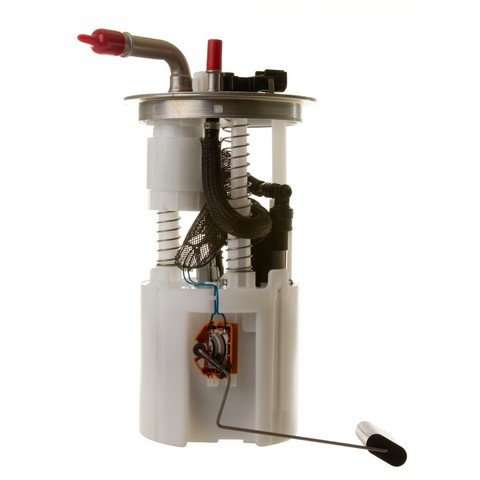

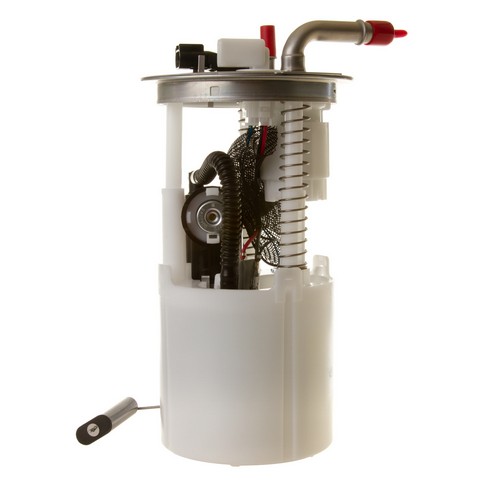

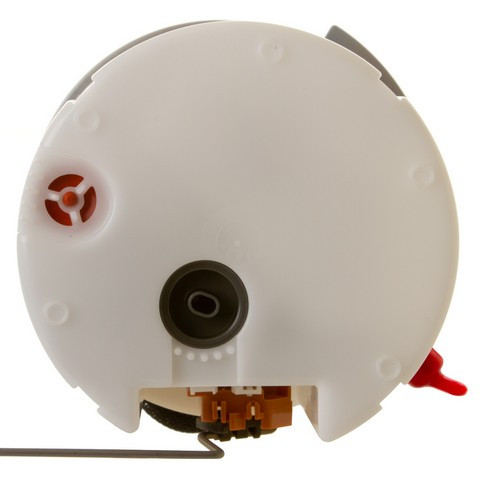

Delphi FG0833 fuel pump module for the 2008 Chevrolet Trailblazer V8 5.3L, the 2008-2009 Trailblazer 6-cylinder 4.2L or V8 6.0L and other vehicles pumps fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards and includes a float arm and a seal.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0833 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2008 Chevrolet Trailblazer V8 5.3L, the 2008-2009 Trailblazer 6-cylinder 4.2L or V8 6.0L and other vehicles
Hard starting, sputtering under load or an erratic gas gauge can mean the fuel pump module is worn, though a clogged fuel filter or a bad fuel pump relay can be behind them too, so rule those out first.
Fits
The 2008-2009 Saab 9-7X 6-cylinder 4.2L, V8 5.3L or 6.0L and the 2008-2009 GMC Envoy 6-cylinder 4.2L or V8 5.3L take this module, as do many other vehicles, and each takes one. If your car isn't named here, check its year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet in the package for the steps.
Interchange: 953-3052 · 953-3079 · 19 17 8476 · 19 25 6266 · 8-19256-266-0
M100131 · 4010669 · E3707M · E3769M · DFG0833 · 69351 · P76485M · AFS1022S · RE1022S · 19301216 · 19418263 · A30315 · SP6077M · USEP3769M · TU453
This part cross-references / interchanges with the following part numbers:
M100131, 4010669, E3707M, E3769M, DFG0833, 69351, P76485M, 953-3052, 953-3079, AFS1022S, RE1022S, 19 17 8476, 19 25 6266, 19301216, 19418263, 8-19256-266-0, A30315, SP6077M, USEP3769M, TU453
Frequently Asked Questions
Does the Delphi FG0833 fit the 2008-2009 Saab 9-7X 6-cylinder 4.2L, V8 5.3L or 6.0L?
Yes. Delphi FG0833 fits the 2008-2009 Saab 9-7X with the 6-cylinder 4.2L, the V8 5.3L or the 6.0L, and the vehicle takes one.
Will this fuel pump module work in the 2008-2009 GMC Envoy 6-cylinder 4.2L or V8 5.3L?
Yes. Delphi FG0833 is listed for the 2008-2009 GMC Envoy with either the 6-cylinder 4.2L or the V8 5.3L, and each takes one.
Does the Delphi module include a float arm and seal?
Yes. The Delphi FG0833 package holds the fuel pump module with its float arm, a seal and an instruction sheet.
Is the Delphi fuel module's float set to read the gas gauge correctly?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Is there anything to do to the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first. An instruction sheet comes with the part for the installation steps.
