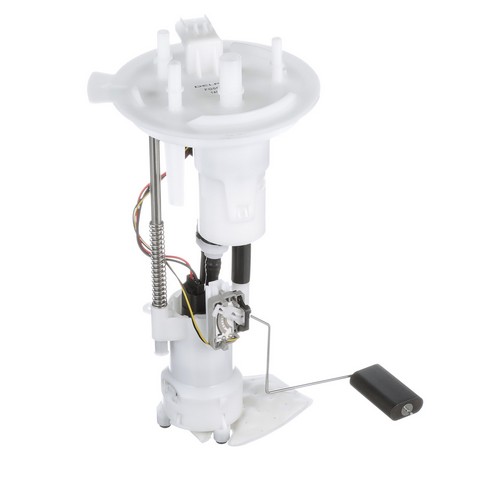

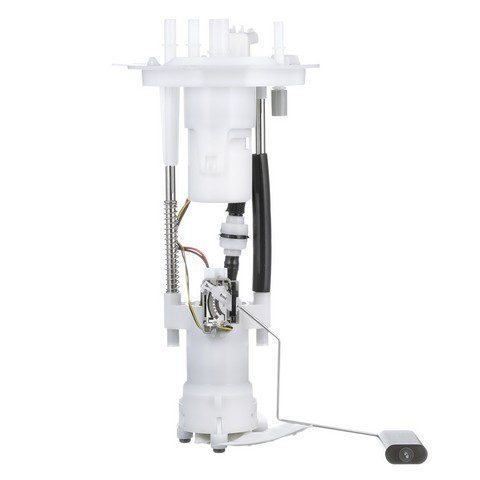

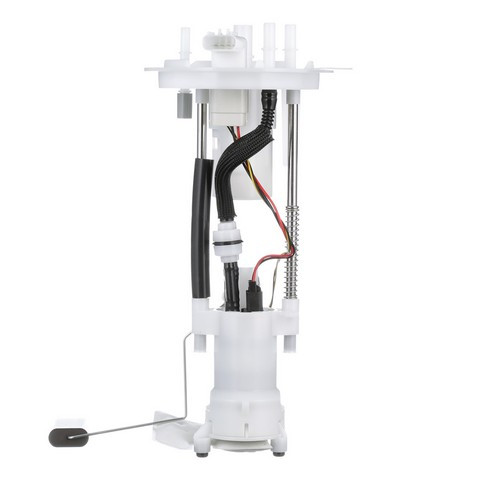

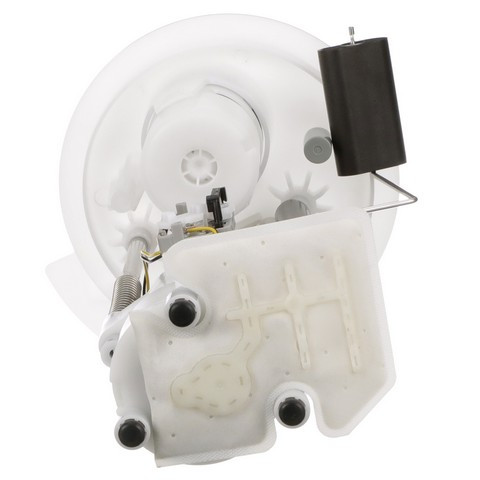

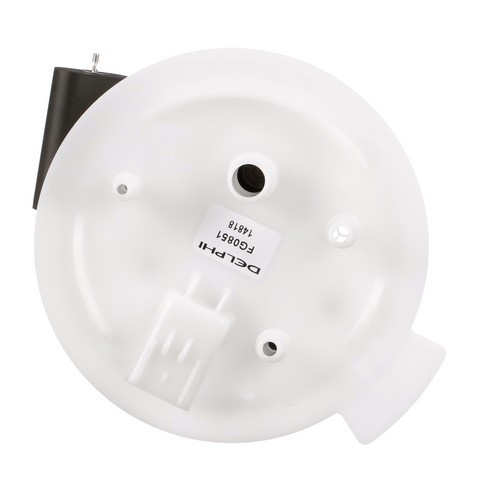

Delphi FG0851 fuel pump module for the 2006-2008 Ford F-150 V8 5.4L moves fuel from the tank to the engine. Also called a fuel pump assembly, this Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0851 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2008 Ford F-150 V8 5.4L
- Condition: New
Hard starting, sputtering under load or an inaccurate gas gauge can mean a pump module is wearing out, but wiring or other fuel-system faults produce similar symptoms. Pin down the cause first, and check and clean the fuel tank when the old module comes out.
Fits
This module fits the 2006-2008 Ford F-150 V8 5.4L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-5.4L
Build and materials
- Condition: New
- Includes: float arm, seal
In the box

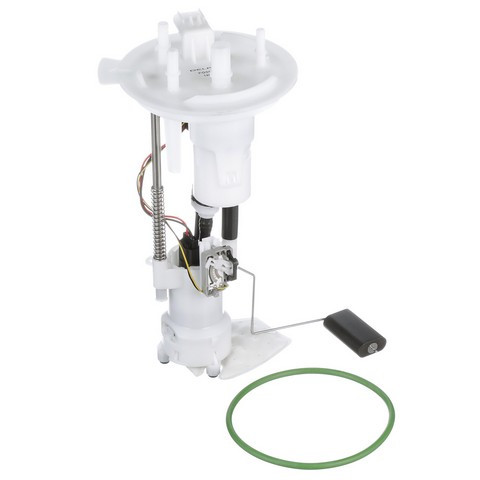

One fuel pump module assembly with float arm, seal and instruction sheet. This listing is one module, and the vehicle takes one.
Installation notes
- An instruction sheet comes with the module for the installation steps.
Interchange: 953-4043 · 7L3Z 9H307-G · 8L3Z 9A213-B · 8L3Z 9H307-G · 8L3Z 9H307-Q · PFS-499 · PS-349 · 150163-A
4010568 · E2456M · DFG0851 · 69192 · P76339M · AFS0949S · 1AMFP00096 · C0095M · A30125 · A30372 · SP2073M · USEP2456M
This part cross-references / interchanges with the following part numbers:
4010568, E2456M, DFG0851, 69192, P76339M, 953-4043, AFS0949S, 7L3Z 9H307-G, 8L3Z 9A213-B, 8L3Z 9H307-G, 8L3Z 9H307-Q, 1AMFP00096, PFS-499, PS-349, C0095M, A30125, A30372, SP2073M, 150163-A, USEP2456M
Frequently Asked Questions
Does the Delphi FG0851 fit the 2006-2008 Ford F-150 V8 5.4L?
Yes. Delphi FG0851 is listed for the 2006-2008 Ford F-150 with the V8-5.4L engine, and that truck takes one module.
What does the Delphi module come with?
The Delphi FG0851 comes as a fuel pump module assembly with a float arm, a seal and an instruction sheet.
Will this Delphi fuel module give a correct gas gauge reading?
This module's empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does a Delphi fuel pump module draw less current?
Yes. This pump module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
Is this fuel pump module tested for its application?
Yes. The part is validated, tested and matched to the right vehicle application, and all Delphi fuel pumps are built to Delphi's OE standards.
