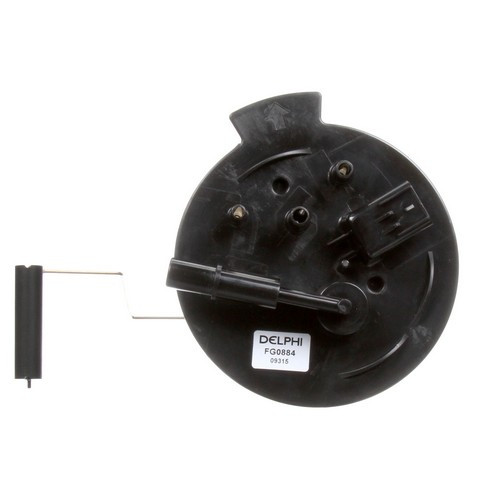

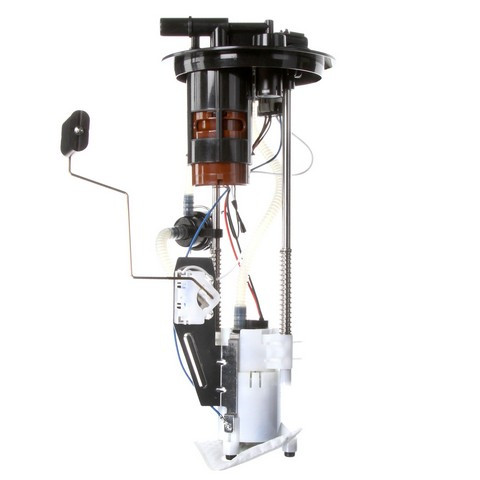

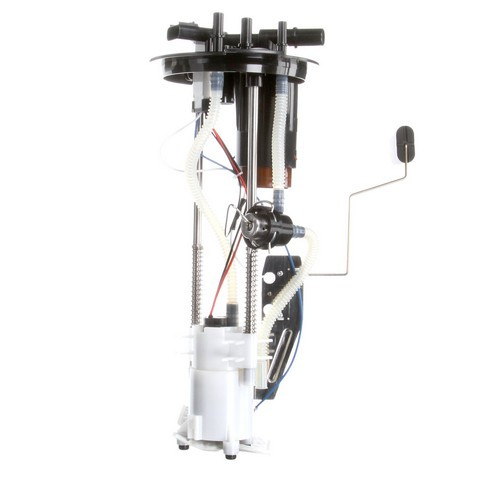

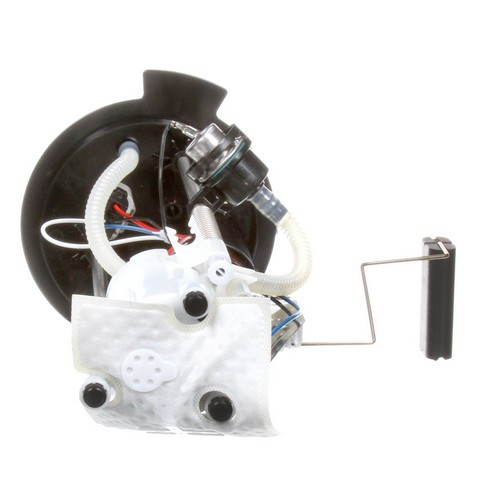

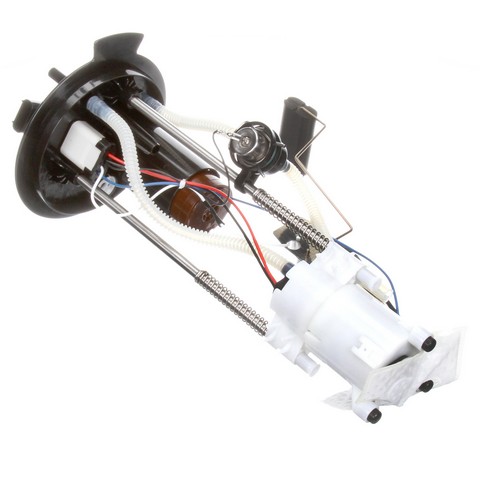

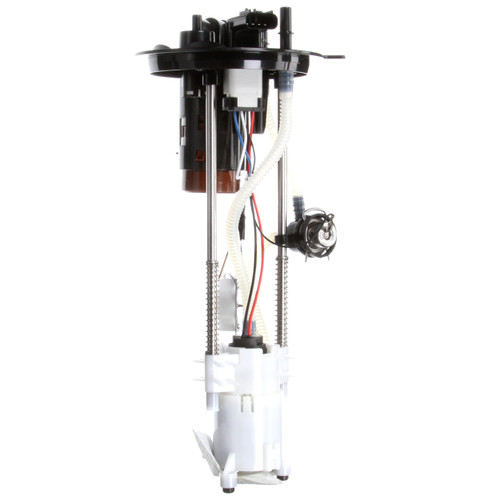

Delphi FG0884 fuel pump module for the 2007-2008 Ford Ranger 4-cylinder 2.3L or V6 3.0L, the 2007-2011 Ranger V6 4.0L and other vehicles pumps fuel from the tank toward the engine. Its float arm also reports the tank level to the gas gauge. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates from the module's design and durability
Quick facts
- Part: Delphi FG0884 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2007-2008 Ford Ranger 4-cylinder 2.3L or V6 3.0L, the 2007-2011 Ranger V6 4.0L and other vehicles
A gas gauge that reads wrong, hard starting or engine sputtering can mean the module is wearing out. Shops also call this part a fuel pump assembly. Before you replace it, rule out a blown fuse, a faulty relay and wiring trouble, which can produce similar symptoms.
Fits
The vehicles it fits include the 2006-2009 Mazda B2300 4-cylinder 2.3L and the 2006-2009 Mazda B4000 V6 4.0L. Driving something else? Look up your own year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
In the box

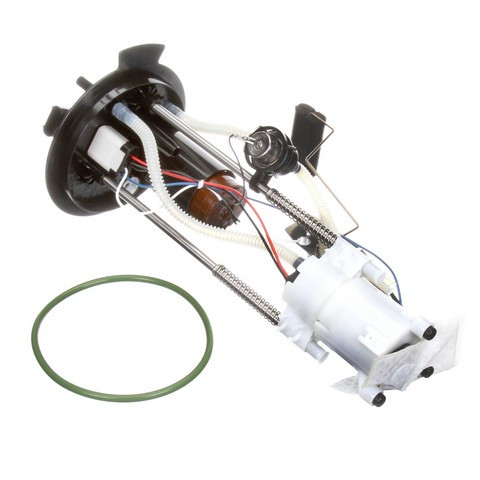

One fuel pump module with float arm, seal and instruction sheet. The listing is one module, and a vehicle needs one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 7L5Z 9H307-B · 8L5Z 9H307-B · 8L5Z 9H307-C · 8L5Z 9H307-E · 1FAC-13-350B · PFS-523 · PFS-524
4010646 · E2503M · E8707M · DFG0884 · P76469M · P76479M · C0115M · A27000 · SP2133M · SP2371M · USEP2503M
This part cross-references / interchanges with the following part numbers:
4010646, E2503M, E8707M, DFG0884, P76469M, P76479M, 7L5Z 9H307-B, 8L5Z 9H307-B, 8L5Z 9H307-C, 8L5Z 9H307-E, 1FAC-13-350B, PFS-523, PFS-524, C0115M, A27000, SP2133M, SP2371M, USEP2503M
Frequently Asked Questions
Does the Delphi FG0884 fit a 2007-2008 Ford Ranger 4-cylinder 2.3L or V6 3.0L?
Yes, Delphi FG0884 fits the 2007-2008 Ford Ranger 4-cylinder 2.3L or V6 3.0L and the 2007-2011 Ranger V6 4.0L. For other vehicles, look up your own year and engine in the "Vehicles it fits" section.
What comes with the Delphi fuel pump module assembly?
It comes with the float arm, a seal and an instruction sheet. The listing is one module, and the vehicle takes one.
Does the Delphi fuel module match OE float height?
Yes. The empty float height and float retention match OE specifications, which helps the gas gauge read correctly.
How can I tell if a Delphi module like this is failing?
A gas gauge that reads wrong, hard starting or sputtering can mean the module is wearing out. A shop can test fuel pressure and the pump's electrical supply.
Does the Delphi FG0884 replace number 8L5Z 9H307-B?
Yes, 8L5Z 9H307-B is one of the numbers Delphi FG0884 replaces. The Interchange line at the bottom of the page lists the others.
